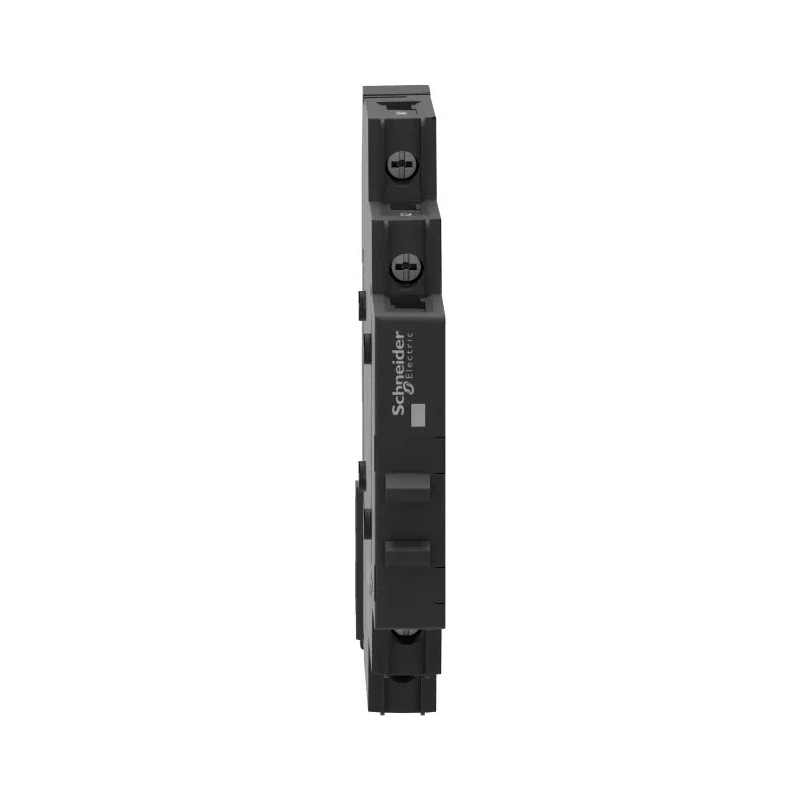

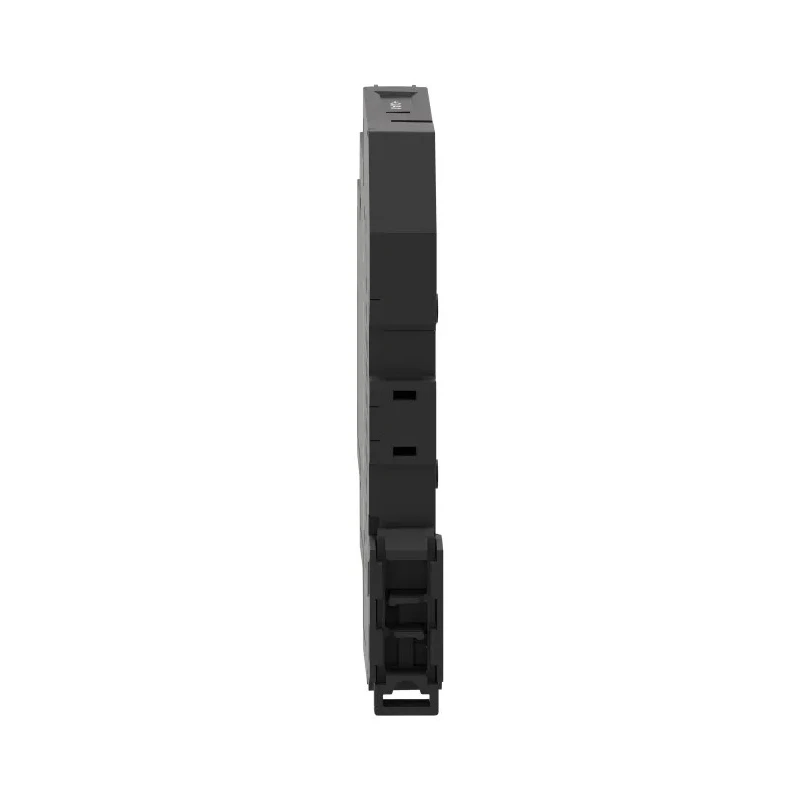

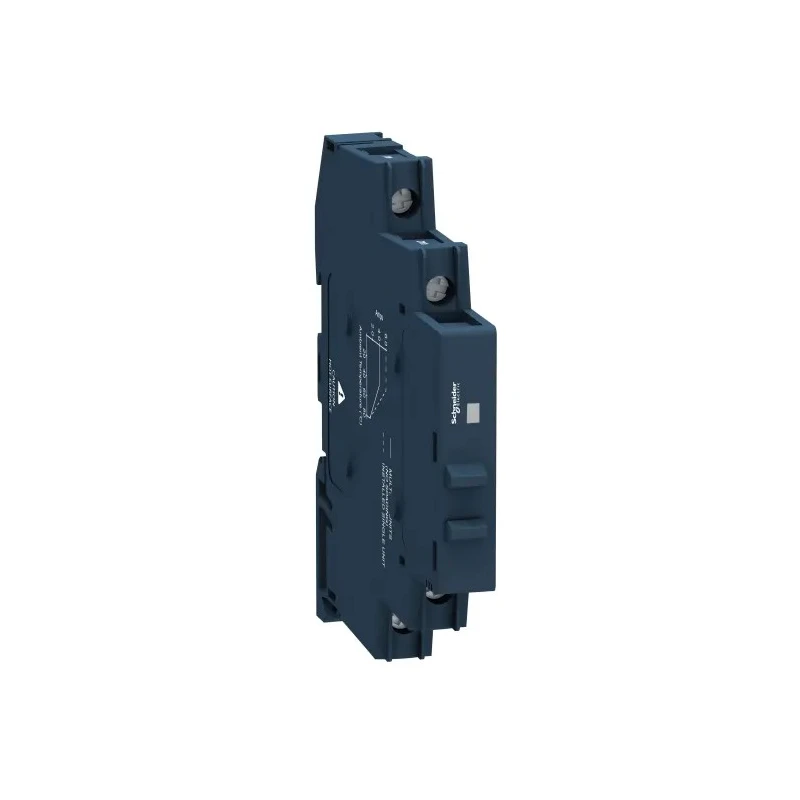

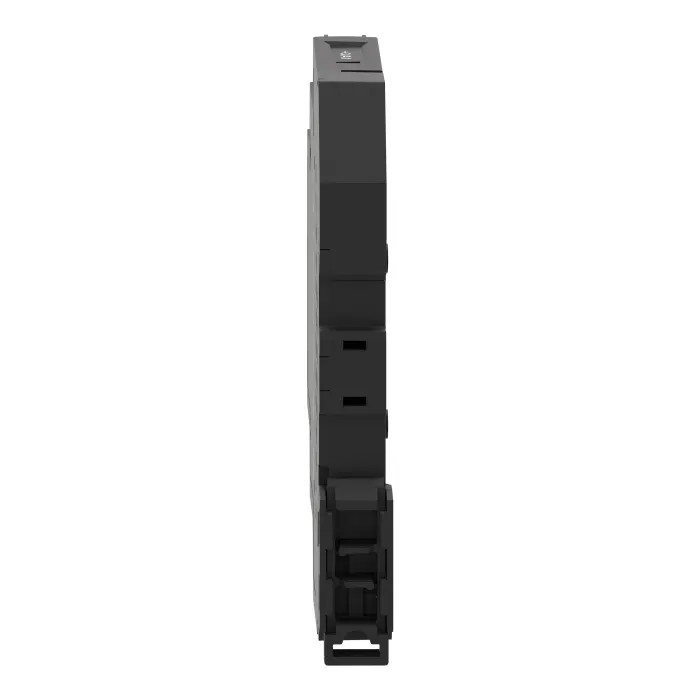

Schneider Electric Harmony Relay Series Solid State Relay 6 A Load 280 V AC Load 36 V AC Control SSM1A16B7

Schneider Electric SSM1A16B7 Harmony Relay Series Solid State Relay is engineered for reliable and efficient control in automation, electrical, and industrial applications. This model supports a 6 amp maximum load current with a 280 V AC load voltage rating and a control voltage of up to 36 V AC, making it ideal for precise load switching.

The relay’s DIN rail mount type allows for simple and secure installation within control panels or automation systems. Its screw terminal configuration ensures firm and durable electrical connections, vital for maintaining long-term performance in demanding industrial environments.

With an IP20 protection rating, the relay withstands solid particle intrusion, enhancing safety and device longevity. The single pole single throw (SPST) contact setup supports AC switching, suited for various control circuit designs.

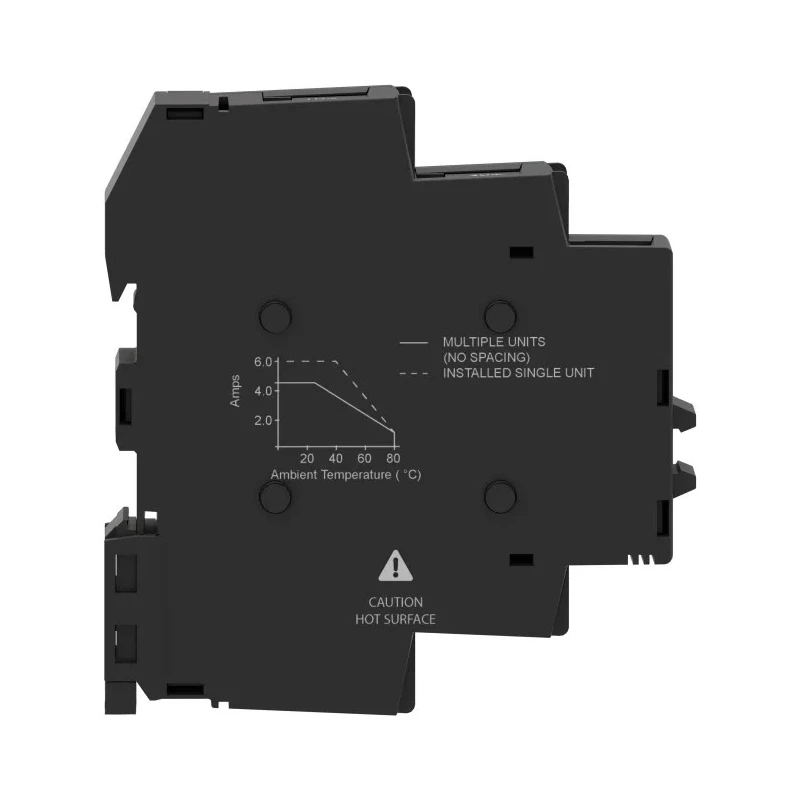

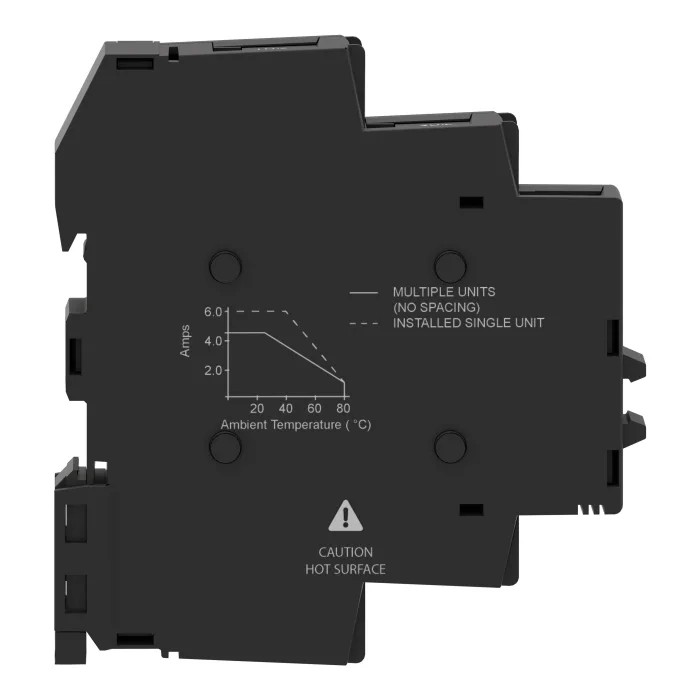

Operating temperature ranges from -30°C to 80°C permit reliability in different environmental conditions, facilitating use in industrial, manufacturing, and HVAC control systems. The relay housing includes an integrated heatsink for optimized thermal management, supporting high switching frequencies and extending operational lifespan.

Additional electrical characteristics include a very low off state leakage current of 0.1 mA and capacitance of 10 pF, contributing to reduced power wastage and electromagnetic interference. Its compact size of 83.7 mm width, 11.02 mm length, and 87.7 mm height enables it to fit efficiently in constrained control panel spaces.

This relay is compliant with RoHS standards, underscoring its manufacturing quality and environmental safety. Manufactured in Mexico, the Schneider Electric SSM1A16B7 is an optimal choice for professionals requiring a Solid State Relay for control and load switching in applications such as industrial automation, water treatment systems, HVAC controls, and other electrical automation fields.

Designed for efficient load switching with a maximum load current of 6 A. DIN rail mount type ensures easy installation in control panels. Supports maximum load voltage up to 280 V AC for versatile applications. Control voltage range from 18 V AC to 36 V AC provides flexible control options.

Operates reliably in temperatures ranging from -30°C to 80°C. Features a screw terminal type for secure electrical connections. IP20 rated housing provides protection against solid objects and allows safe handling. Single pole single throw (SPST) contact configuration for AC switching functions.

Compact dimensions of 83.7 mm width, 11.02 mm length, and 87.7 mm height enable space-saving integration. Low off state leakage current of 0.1 mA minimizes power loss during off cycles. Explore the comprehensive range of Schneider Electric relays and automation components available at EnvMart for industrial, commercial, and laboratory applications.
