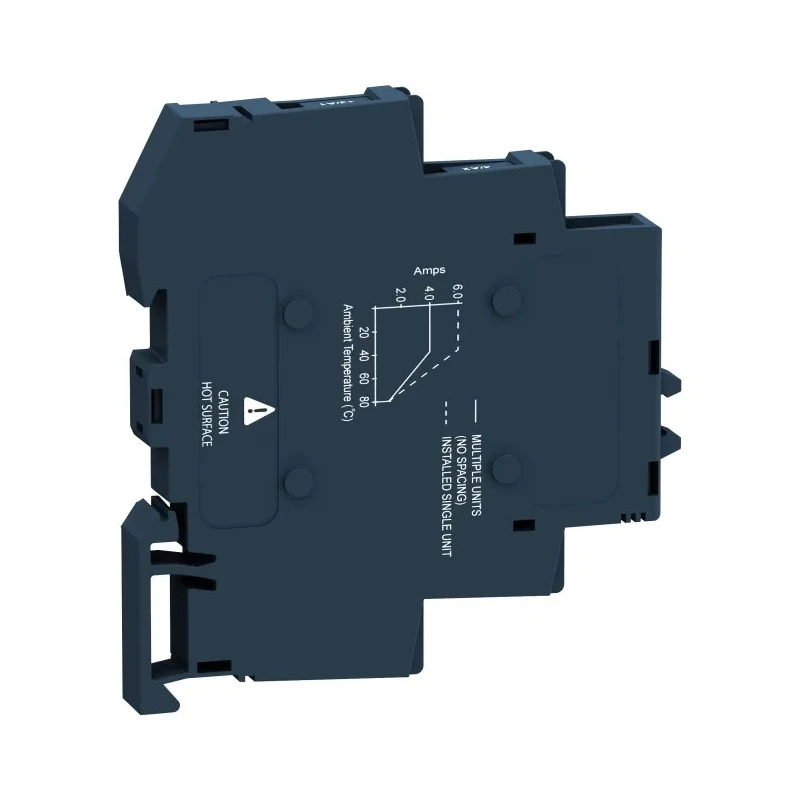

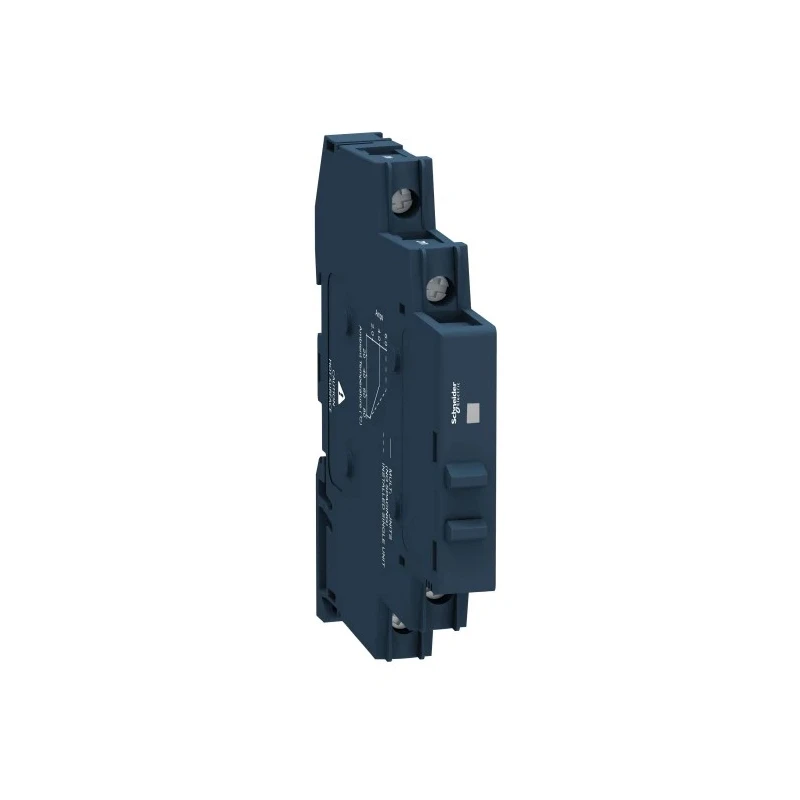

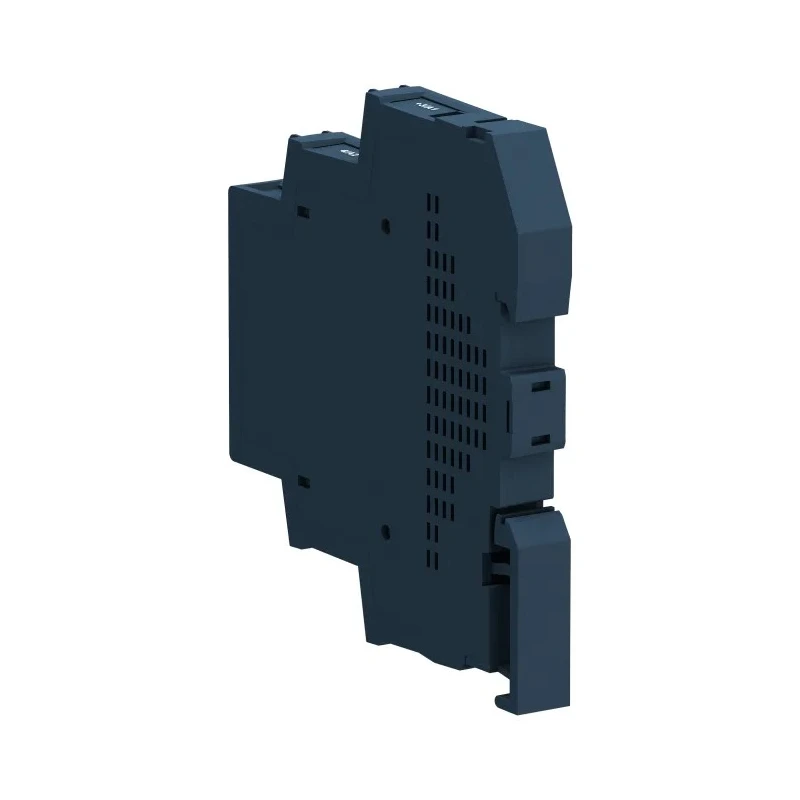

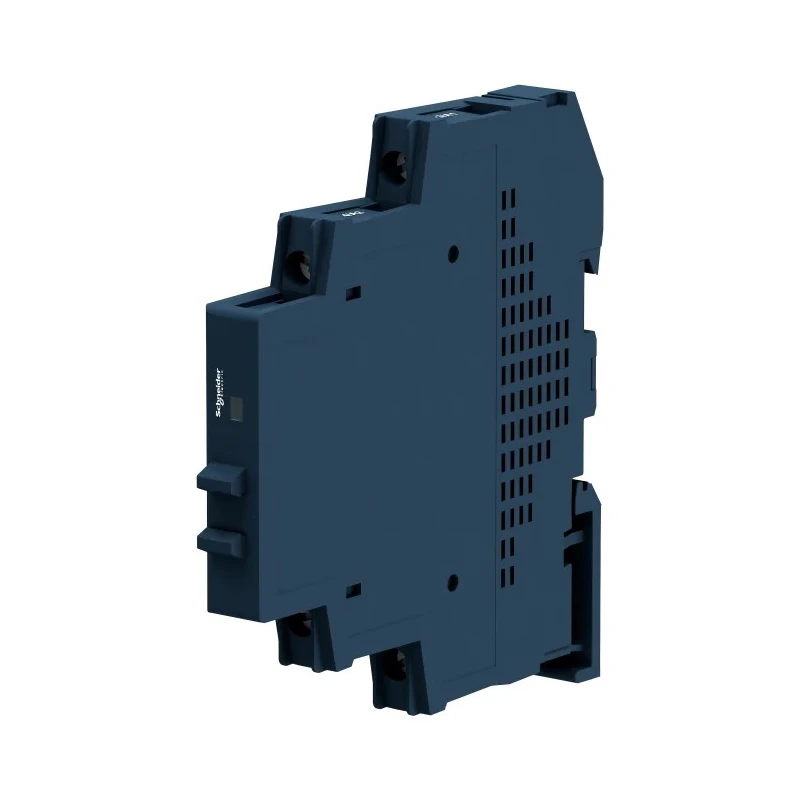

Schneider Electric Harmony Relay Series Solid State Relay, 6 A Load, DIN Rail Mount, 280 V AC Load, 32 V DC SSM1A16BDR

Schneider Electric SSM1A16BDR Harmony Relay Series Solid State Relay is specifically designed for industrial and automation environments requiring reliable control of single-phase inductive loads up to 6 amperes. With a maximum load voltage of 280 V AC and control voltage range from 4 V DC to 32 V DC, this DIN rail-mounted relay provides flexible application compatibility. The IP20 rated modular housing integrates a built-in heatsink for enhanced thermal performance, reducing the need for additional cooling components and promoting uninterrupted long-term operation.

Its screw terminal design offers secure electrical connections, while the zero cross switching function reduces electrical noise, minimizing wear and tear on connected devices. This relay operates silently due to the absence of mechanical contacts, making it ideal for noise-sensitive environments. The SPST contact configuration and SCR output type ensure fast switching and reliable load control.

The relay features a clear visual indicator which displays the input status, aiding in maintenance and troubleshooting. Its robust operating temperature range of -30°C to 80°C accommodates demanding industrial conditions. Compact dimensions (87.7 mm height, 83.7 mm width, 11.02 mm length) allow efficient use of electrical panels and control cabinets.

Schneider Electric’s Harmony SSM series solid state relays are well suited for applications including industrial automation systems, HVAC control, manufacturing equipment, and motor control circuits. Their durable design offers enhanced resistance to shock, vibration, and contamination, ensuring a long lifespan and minimal downtime.

Set includes one solid state relay with the model SSM1A16BDR, ready for DIN rail mounting. This product complies with RoHS standards and is made in Mexico, guaranteeing quality and environmental adherence.

Explore the extensive range of Schneider Electric solid state relays and other electrical components for superior performance in your industrial projects at EnvMart. Supports a maximum load voltage of 280 V AC for diverse industrial applications.

Controlled with DC voltage from 4 V to 32 V ensuring versatile interfacing. DIN Rail mount type with a modular IP20 housing for easy installation and protection. Equipped with a screw terminal type for secure and durable electrical connections.

Capable of operating reliably in temperatures ranging from -30°C to 80°C. Zero cross switching function minimizes electrical noise and enhances longevity. Features a built-in heatsink for optimal thermal management and silent operation.

Contact configuration is SPST (Single Pole Single Throw) utilizing SCR output type. Visual input status indicator for simple monitoring of relay operation. Compact dimensions: Height 87.7 mm, Width 83.7 mm, Length 11.02 mm for space efficiency.
