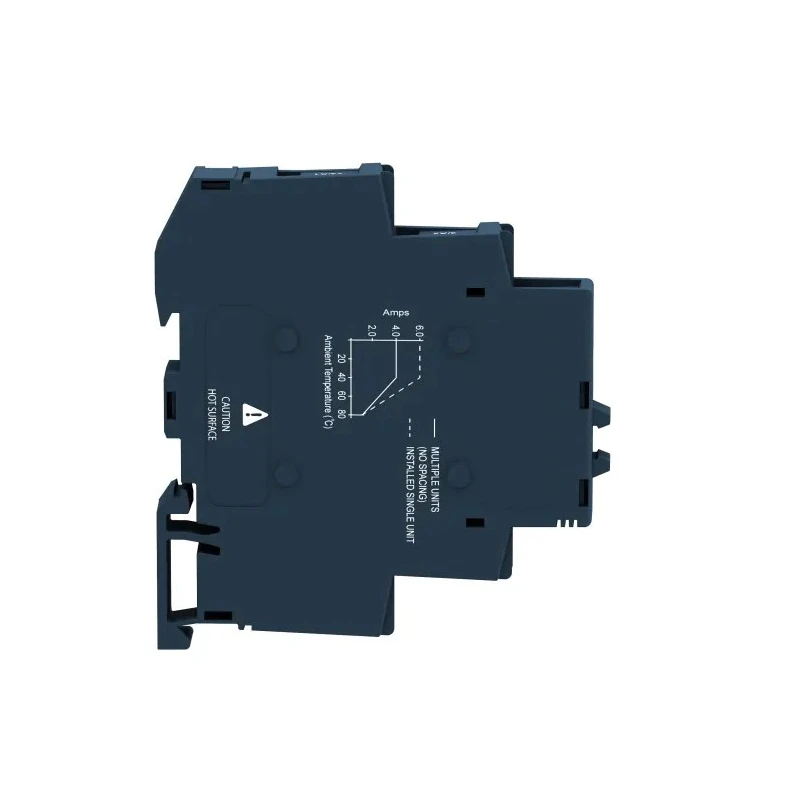

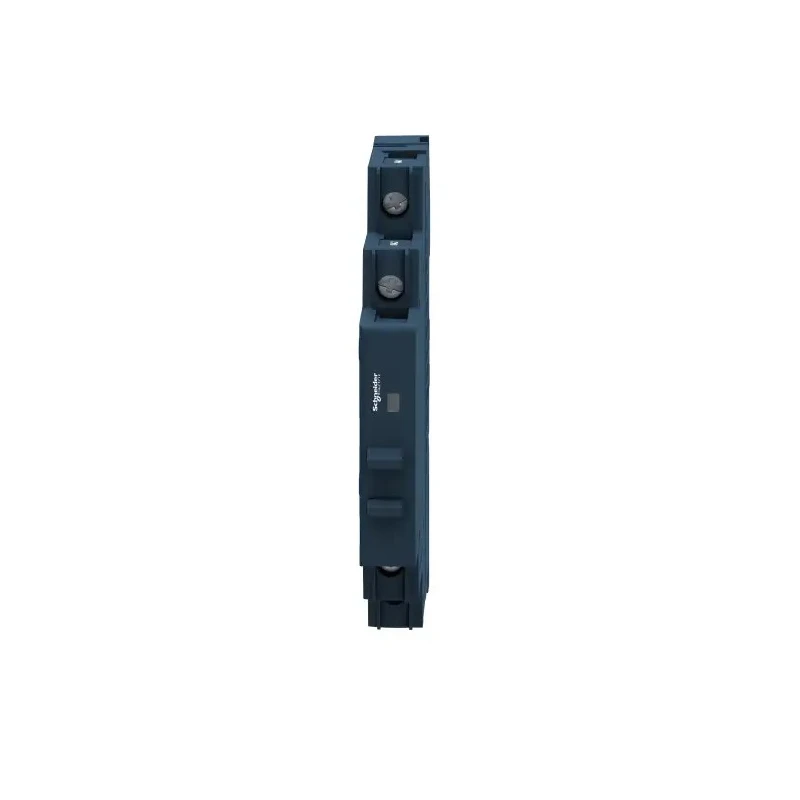

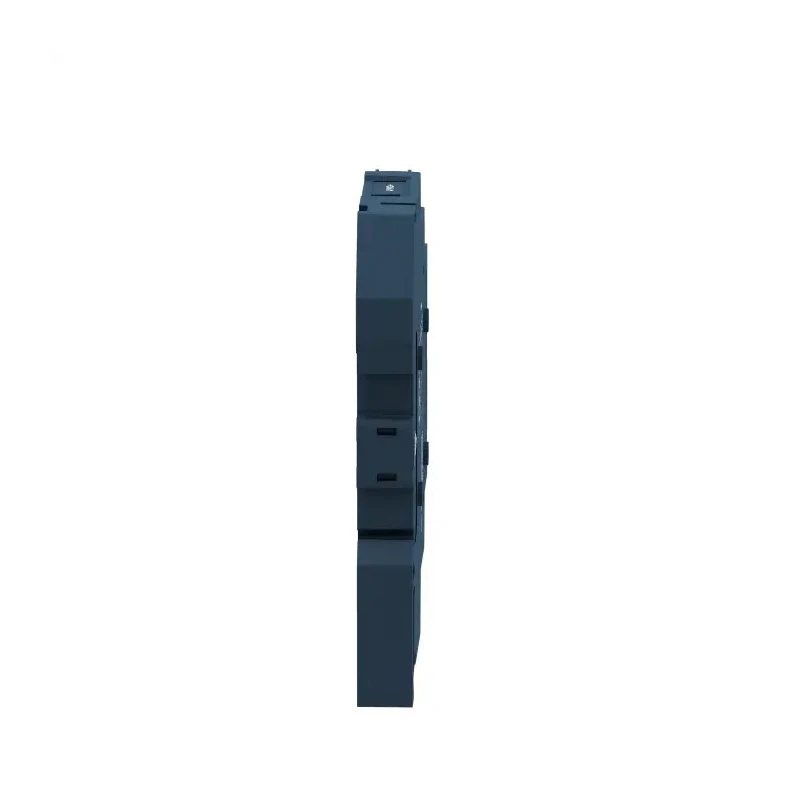

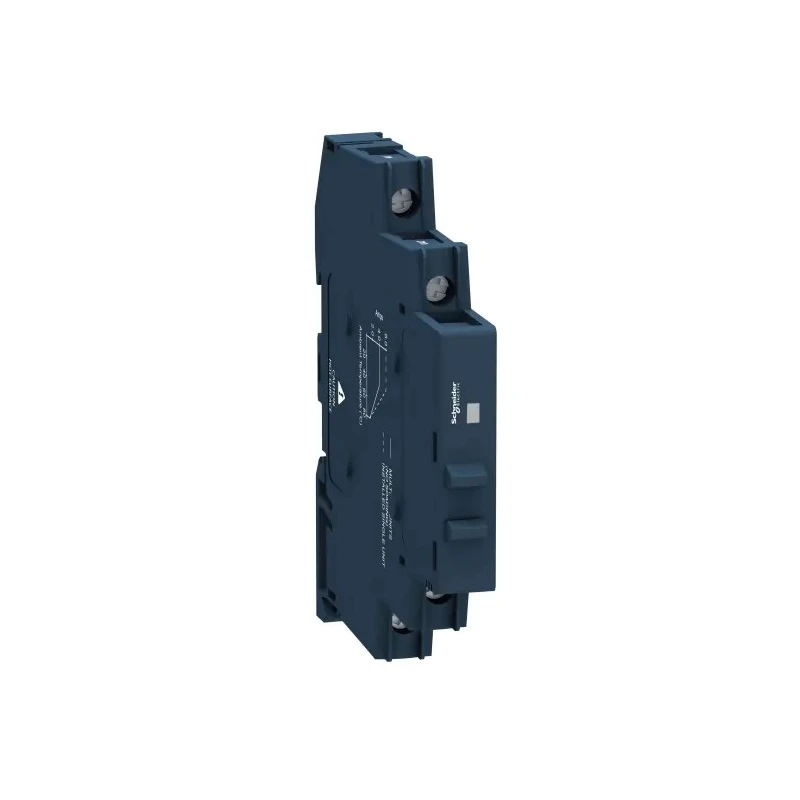

Schneider Electric Harmony Relay Series Solid State Relay, 6 A Load, DIN Rail Mount, 600 V AC Load, 32 V DC SSM1A36BDR
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Schneider Electric |
| Height | 87.7mm |
| Length | 11.02mm |
| Model | SSM1A36BDR |
| IP Rating | IP20 |
| Width | 83.7mm |
| Mount Type | DIN Rail |
| Output type | SCR |
| Series | Harmony Relay |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 10pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | Zero Cross |
| Maximum Load Current | 6A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 600V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.1mA |
Key Features
- Compact modular relay design with built-in heatsink ensures efficient cooling and performance.
- Silent operation with no moving parts for reliable, long-lasting use.
- Suitable for inductive loads with random voltage switching capability.
- Visual input status indicator enhances easy monitoring and maintenance.
- IP20 rating provides protection against solid objects with standard safety features.
- Operating temperature range from -30°C to 80°C supports varied industrial environments.
- Screw terminal type facilitates secure electrical connections.
- Zero cross switching function improves load switching performance and reduces electrical noise.
Product Description
Schneider Electric SSM1A36BDR Harmony Relay Series Solid State Relay is a modular DIN rail mount single-phase relay designed for industrial and automation applications with a 6 A maximum load current and a load voltage range from 48 V to 600 V AC. It offers a control voltage input range between 4 V DC and 32 V DC, making it suitable for precise control in electrical automation and manufacturing environments.
This relay incorporates a built-in heatsink which optimizes thermal performance, reducing spare parts requirements and enhancing operational reliability. The silent switching operation due to absence of mechanical contacts makes it ideal for noise-sensitive industrial settings. It features a visual indicator for input status which facilitates easier troubleshooting and system management.
The device has a compact modular IP20 rated housing which ensures protection from solid objects while enabling high switching frequency and resistance to shock, vibration, and contamination. Its zero-cross switching function minimizes electrical disturbances and prolongs the life of connected equipment.
Typical use cases include industrial automation systems, HVAC control, manufacturing equipment, and electrical control panels requiring reliable solid state switching under varying load conditions.
Compact modular relay with built-in heatsink for thermal efficiency. Silent operation with no mechanical contacts for long life. Visual input indicator for operational monitoring. IP20 protection against solid objects and contaminants.
Suitable for inductive loads with random voltage switching. Zero-cross switching function to reduce switching noise and wear. Wide operating temperature range from -30°C to 80°C. DIN rail mount for easy installation in control panels.
Secure screw terminal contacts for durable electrical connections. Set includes the Solid State Relay unit with clear schematic on the side for easy wiring and maintenance. Explore the comprehensive range of Schneider Electric electrical components and automation solutions on EnvMart to enhance your industrial system reliability and efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 6 A.
The control voltage input range for this model is between 4 V DC and 32 V DC.
This relay operates within a temperature range of -30°C to 80°C.
It is designed for DIN rail mounting, making installation straightforward in control panels.
The IP rating of this relay is IP20, providing protection against solid objects.
This model is suitable for inductive loads and features random voltage switching capability.
Yes, it features a visual input status indicator for easier monitoring and maintenance.
The output type of this relay is SCR (Silicon Controlled Rectifier).
The dimensions of this relay are 87.7 mm in height, 83.7 mm in width, and 11.02 mm in length.
It features a zero-cross switching function, which helps to reduce electrical noise and improve load switching performance.
This relay complies with RoHS standards, ensuring it meets environmental regulations.
This model utilizes screw terminals for secure electrical connections.
