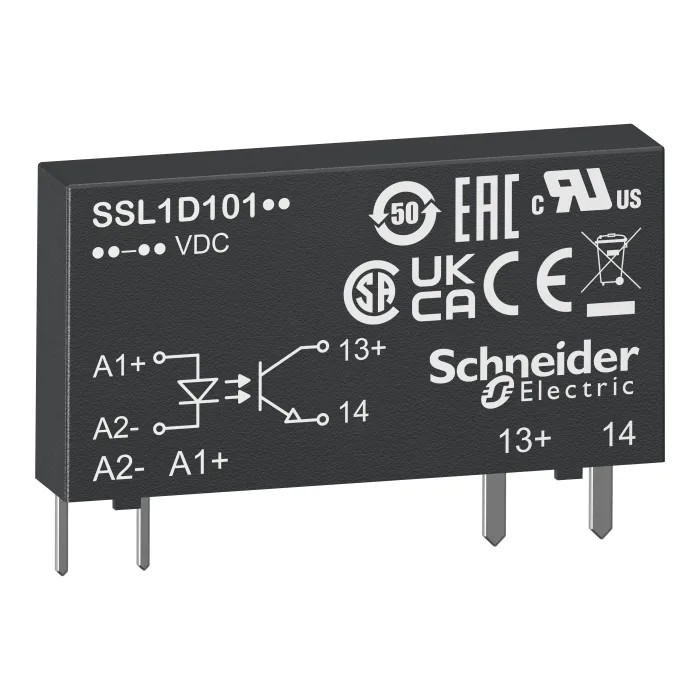

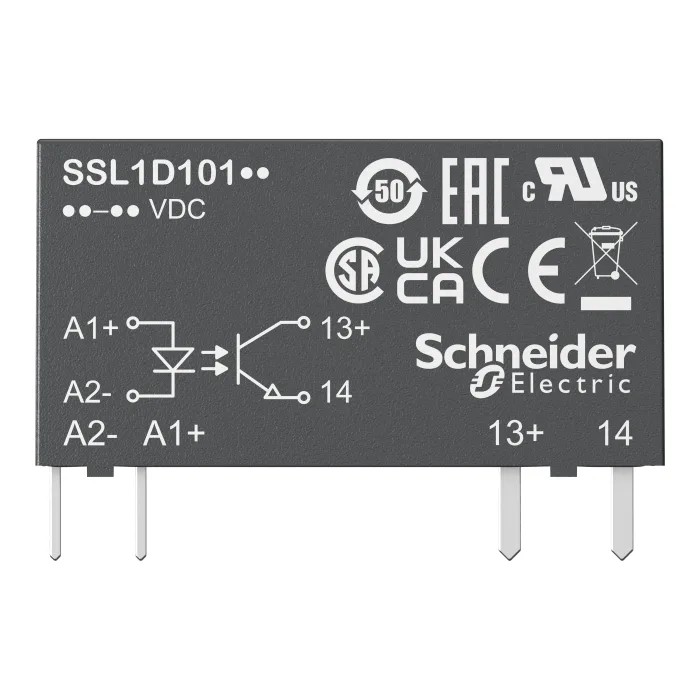

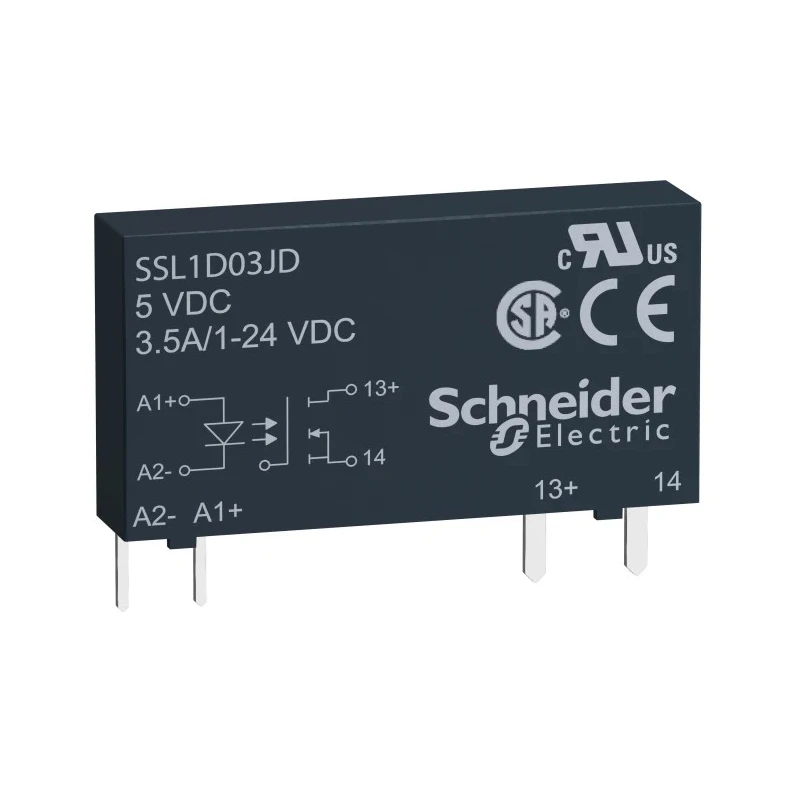

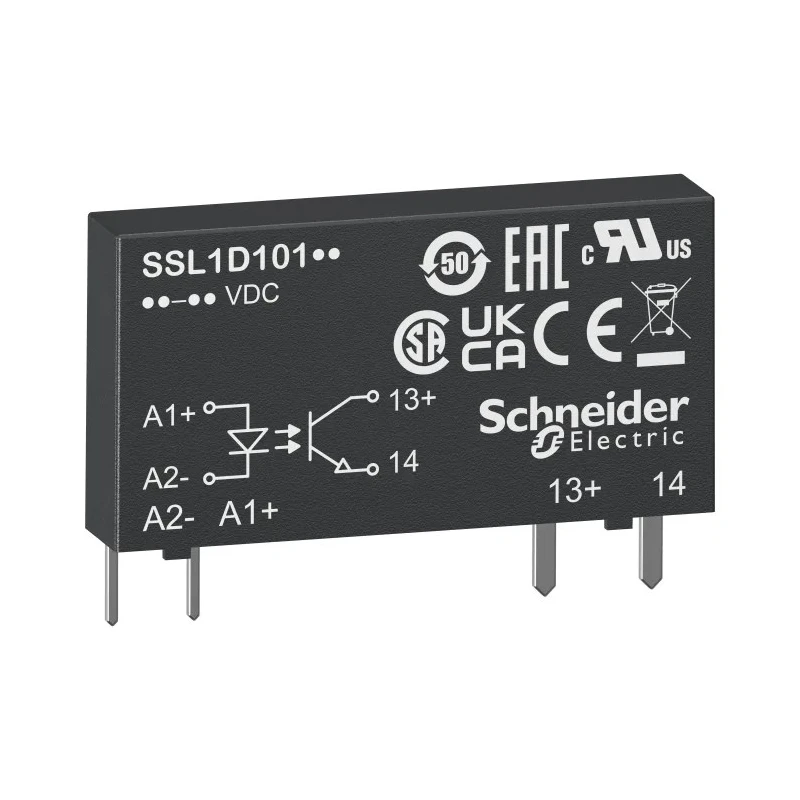

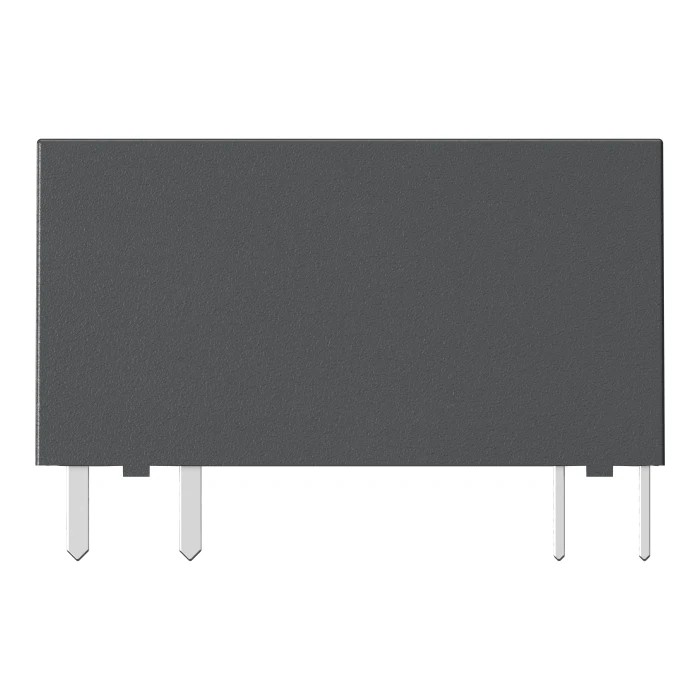

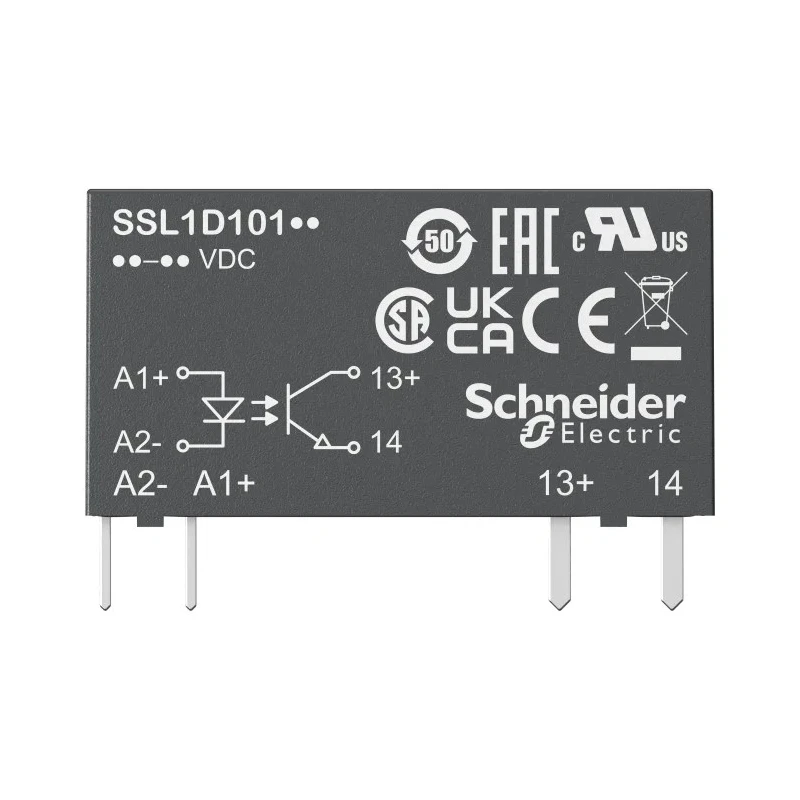

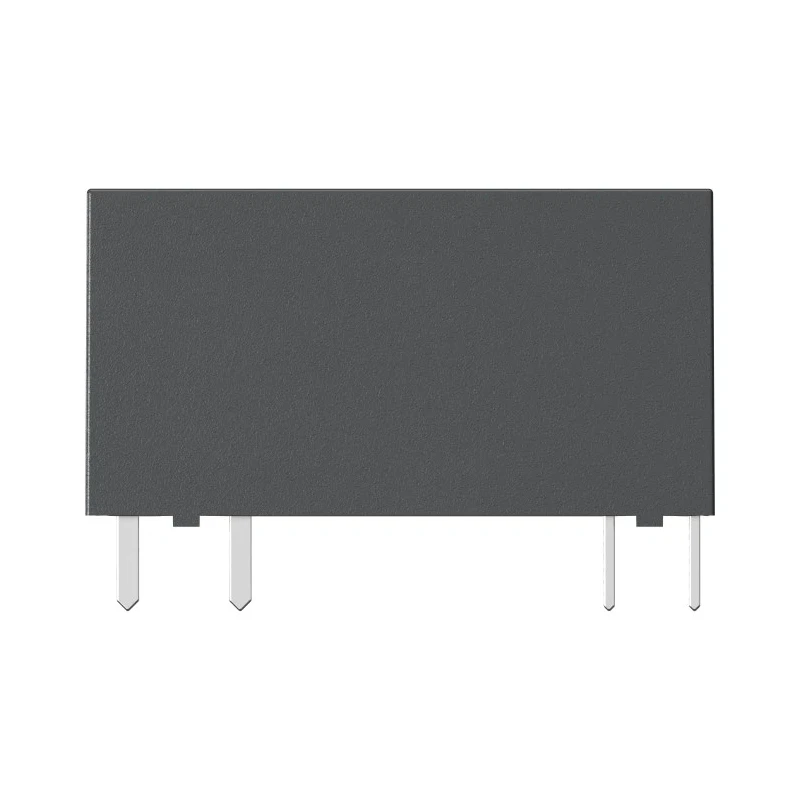

Schneider Electric Harmony Relay Series Solid State Relay, 3.5 A Load, PCB Mount, 24 V DC Load, 12 V DC Control SSL1D03JD
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Schneider Electric |
| Height | 15mm |
| Length | 28mm |
| Model | SSL1D03JD |
| Width | 5mm |
| Mount Type | PCB |
| Output type | MOSFET |
| Series | Harmony Relay |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -20°C |
| Terminal type | PCB Terminal |
| Switching Function | DC Switching |
| Maximum Load Current | 3.5A |
| Standards/Approvals | UL, CSA, CE |
| Maximum Load Voltage | 24V dc |
| Minimum Load Voltage | 1V dc |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 12V dc |
| Off State Leakage Current | 0.001mA |
Key Features
- Maximum load current rated at 3.5 amperes for reliable switching.
- Designed for PCB mounting with compact slim form factor saving control cabinet space.
- Operational voltage ranges from 1 V to 24 V DC load with DC switching.
- Input control voltage range between 3 V and 12 V DC for flexible control.
- Equipped with MOSFET output type enabling silent and wear-free switching.
- Wide operating temperature range from -20°C to 80°C suitable for harsh environments.
- Compliant with UL, CSA, and CE standards ensuring product safety and quality.
- Shock, vibration, and pollution resistant, rated with IP67 protection making it ideal for industrial applications.
Product Description
Schneider Electric SSL1D03JD is a Harmony Relay Series solid state relay designed for industrial and automation applications. It features a maximum load current rating of 3.5 amperes and operates as a PCB mountable module with a slim profile, approximately 5 mm width, enabling efficient use of panel space.
This relay supports DC switching with a load voltage range from 1 V to 24 V DC and control voltages between 3 V and 12 V DC. The output is MOSFET type, offering silent operation without mechanical contacts, thus reducing wear and extending lifespan.
Operating effectively from -20°C to 80°C, the device is suitable for harsh industrial environments and complies with UL, CSA, and CE certifications. Its IP67 rating provides resistance against shock, vibration, and contamination, ensuring reliability even under challenging conditions.
The solid state plug-in relay is part of Schneider Electric's Zelio SSL slim series, known for compact design and multiple input-output configurations for both AC and DC switching. It can be mounted directly on PCBs or DIN rails (with appropriate sockets), facilitating versatile installation options.
Maximum load current of 3.5 A for versatile DC load applications. Compact 5mm width solid state relay for space-saving panel layouts. Input control voltage from 3 V to 12 V DC offering flexible control signal compatibility.
Silent MOSFET-based switching extending device longevity. Wide temperature tolerance between -20°C and 80°C for industrial robustness. Certified UL, CSA, and CE ensuring compliance with international standards. IP67 protection for resistance to moisture, dust, and mechanical stresses.
Compatible with PCB mounting and DIN rail sockets for flexible fitting.
This Solid State Relay is highly suitable for industrial, automation, and control panel applications requiring reliable and compact DC switching solutions. Explore more Schneider Electric products and solutions at EnvMart for comprehensive electrical component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is rated at 3.5 amperes.
It operates with a load voltage range from 1 V to 24 V DC.
The input control voltage range is between 3 V and 12 V DC.
This model features a MOSFET output type, allowing for silent and wear-free switching.
The relay has a width of 5 mm, a height of 15 mm, and a length of 28 mm.
It operates effectively within a temperature range of -20°C to 80°C.
This solid state relay is compliant with UL, CSA, and CE standards, ensuring product safety and quality.
It has an IP67 rating, providing resistance to moisture, dust, and mechanical stresses.
This model is designed for PCB mounting and can also be mounted on DIN rails with appropriate sockets.
The contact configuration is SPST (Single Pole Single Throw).
The off state leakage current is rated at 0.001 mA.
It is suitable for industrial, automation, and control panel applications requiring reliable DC switching solutions.
