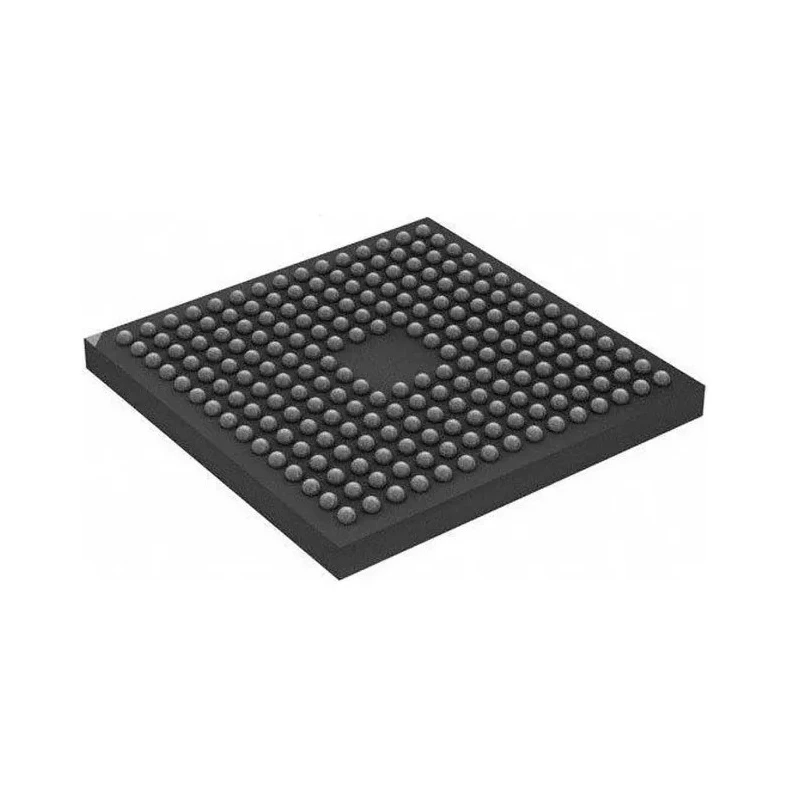

STMicroelectronics STM32F4 Series 32-Bit ARM Cortex-M4 Microcontroller 180 MHz 2.048MB FLASH 216-Pin BGA STM32F469NIH6

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics STM32F4 Series 32-Bit ARM Cortex-M4 Microcontroller 180 MHz 2.048MB FLASH 216-Pin BGA STM32F469NIH6

Name: STMicroelectronics STM32F4 Series 32-Bit ARM Cortex-M4 Microcontroller 180 MHz 2.048MB FLASH 216-Pin BGA STM32F469NIH6
Brand: STMicroelectronics
SKU: 388831
Price: 27.5 USD
Availability: InStock



Category Microcontroller Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.1mm
Length	13mm
Model	STM32F469NIH6
Width	13mm
Mount Type	Surface
Series	STM32F4
Maximum Operating Temperature	85°C
Package Type	BGA
Minimum Operating Temperature	-40°C
Interfaces	USB 2
Ram size	384kB
Pin Count	216
Maximum Supply Voltage	3.6V
Maximum Power Dissipation Pd	690mW
Minimum Supply Voltage	1.7V
Device Core	ARM Cortex M4
Program Memory Size	2.048MB
Maximum Clock Frequency	180MHz
Number of Programmable I/Os	161
Number of Timers	10
Instruction Set Architecture	RISC
ADCs	24 x 12 Bit
Program Memory Type	FLASH
DACs	2 x 12 Bit

Key Features

Based on the high-performance ARM Cortex-M4 architecture with DSP and FPU instructions.
Incorporates 384kB RAM for efficient data processing and storage.
Operates within a voltage range of 1.7V to 3.6V for low power consumption.
Offers 216-pin BGA package with surface mount design for compact assembly.
Equipped with 24 ADC channels and 2 DACs for high precision analog input and output.
Supports multiple communication interfaces including USB 2.0 OTG FS/HSD, USART, SPI, I2C, and I2S.
Provides up to 161 programmable I/Os and 10 timers for versatile control applications.
Operating temperature ranges from -40°C to 85°C, suitable for industrial environments.

Product Description

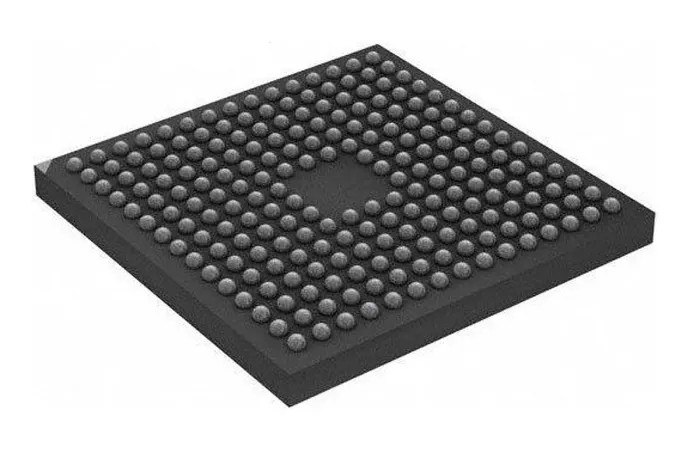

STMicroelectronics STM32F469NIH6 is a high-performance 32-bit ARM Cortex-M4 microcontroller operating at up to 180 MHz, featuring 2.048MB of FLASH memory and 384kB of RAM. It is supplied in a compact 216-pin BGA surface mount package measuring 13 mm by 13 mm by 1.1 mm, designed for integration into modern embedded systems.

With an operating voltage range from 1.7 V to 3.6 V and power dissipation up to 690 mW, this microcontroller balances performance and power efficiency, ideal for battery-powered and industrial devices. The device supports advanced peripherals including up to 24 12-bit ADC channels and 2 12-bit DACs, enabling precise data acquisition and analog control.

The STM32F469NIH6 integrates various communication interfaces - USB 2.0 OTG FS/HSD, USART, SPI, I2C, and I2S - facilitating connectivity in complex system designs. Its 161 programmable I/O pins and 10 timers offer extensive flexibility for diverse application requirements.

Designed for robust industrial applications, it sustains operation over a temperature range of -40°C to +85°C. The embedded ART Accelerator for FLASH memory and the Chrom-ART Accelerator provide enhanced performance for graphical user interfaces and fast memory access.

This microcontroller series is suitable for advanced embedded applications such as consumer electronics, industrial control systems, medical devices, and graphical user interfaces requiring high processing capabilities and large memory.

High-performance ARM Cortex-M4 core with DSP and FPU. Large memory footprint featuring 2.048MB FLASH and 384kB RAM. Wide operating voltage and temperature range for versatile applications. Enhanced graphic acceleration supporting LCD-TFT and MIPI-DSI interfaces.

Extensive peripheral support including USB OTG and multiple serial interfaces. Explore STMicroelectronics Microcontroller options and related products at EnvMart for your industrial and embedded solutions.
