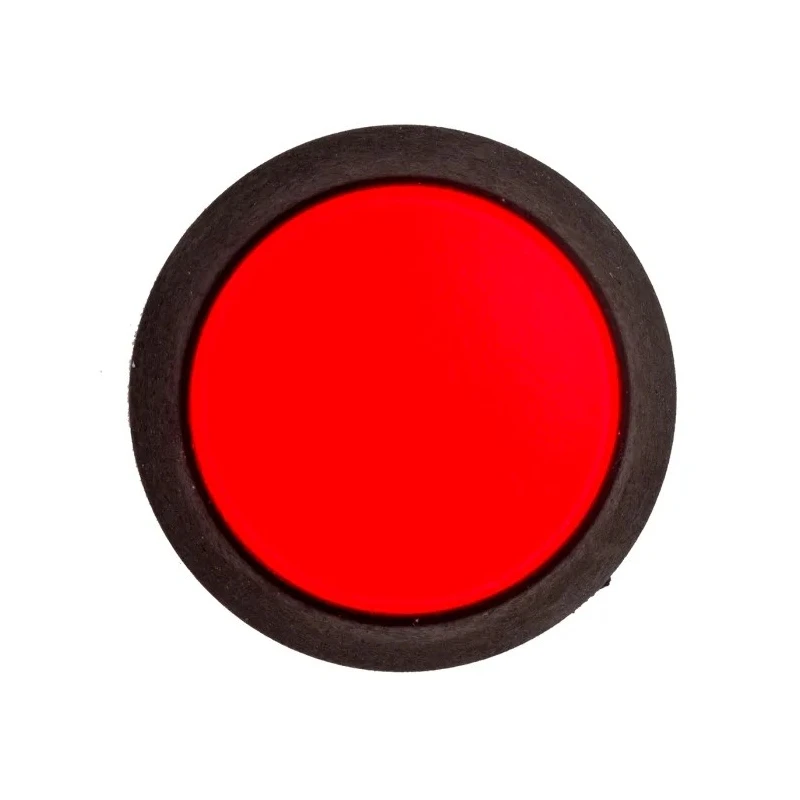

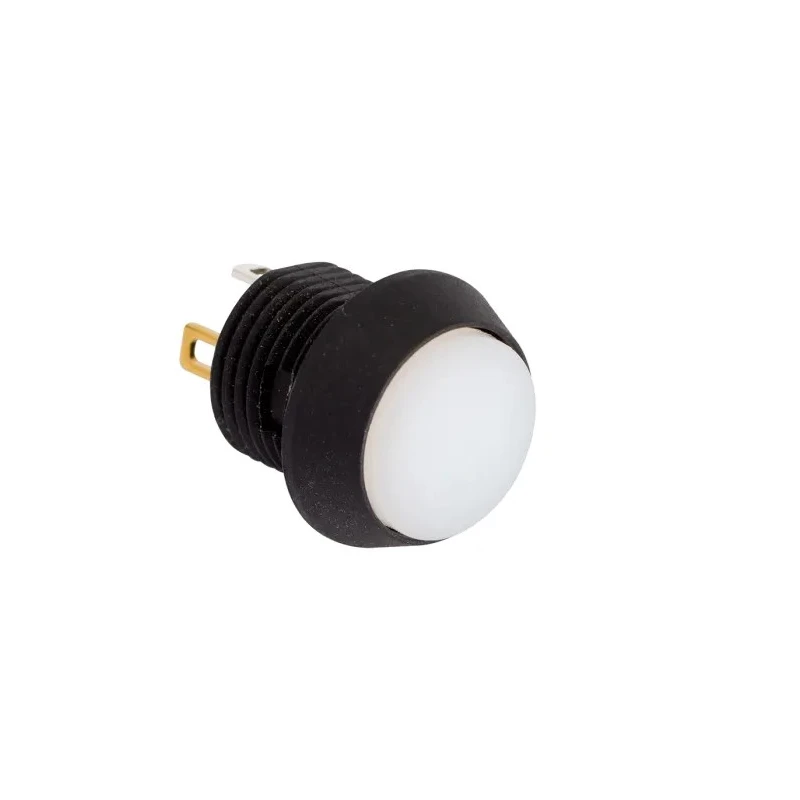

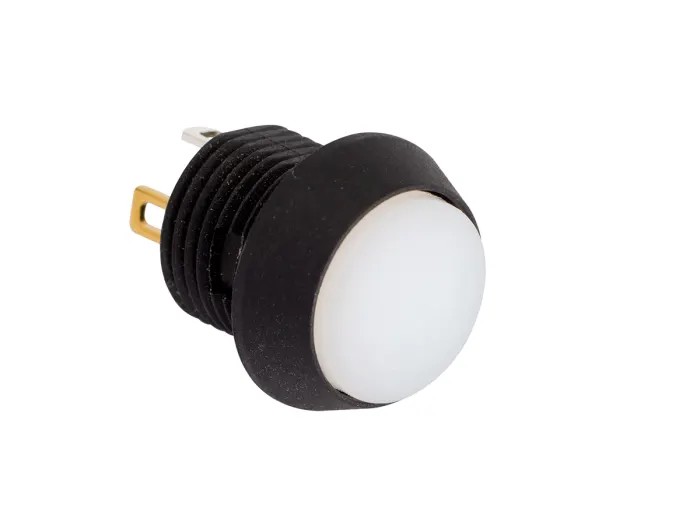

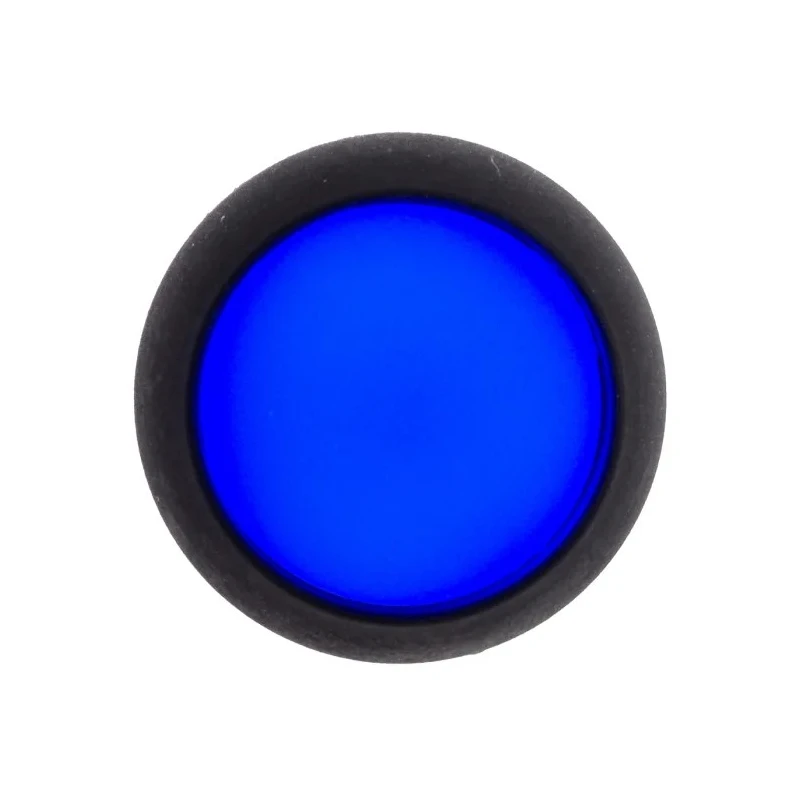

EOZ FL Series Illuminated Momentary Push Button Switch, Panel Mount, 13.5 mm Cutout, SPST, Blue Red LED, IP67 FL13DRB5

The EOZ FL13DRB5 is an illuminated momentary push button switch engineered for panel mounting applications requiring a 13.5 mm cutout. This SPST switch features full face illumination with pre-installed blue and red LEDs, providing clear, dual color visual indication, ideal for automation and industrial control panels.

Manufactured with vandal-resistant and sealed construction, this device is rated IP67 for protection against dust ingress and water immersion, ensuring reliability in harsh conditions. It accommodates panel thicknesses ranging from 1 mm to 6 mm and operates reliably over an extended temperature spectrum from -40°C up to 85°C.

The switch contacts are gold plated nickel, while LED terminals are silver plated nickel, enhancing electrical performance and longevity. Terminals are plug-in 2.8 x 0.5 mm for straightforward installation and maintenance.

This push button switch is suitable for use in diverse industrial, automation, electrical, and electronics control systems requiring robust, visible, and vandal resistant switching solutions. Compliance with RoHS directives ensures adherence to environmental and safety standards.

This switch offers full face illumination for clear visibility in industrial environments. The switch is momentary with single-pole single-throw (SPST) contacts for reliable operation. It is suitable for panel thicknesses from 1 mm to 6 mm.

Gold plated nickel contact terminals and silver plated nickel LED terminals ensure durability and excellent conductivity. The device operates in a wide temperature range between -40°C to 85°C. Featuring a plug-in 2.8 x 0.5 mm terminal type enabling easy and secure connections.

Designed to be vandal resistant and sealed to an IP67 rating, suitable for harsh industrial and outdoor environments. The actuator is cap style with a white color with illuminated blue and red LEDs for dual color indication.

Complies with RoHS standards for environmental safety and quality assurance.

This EOZ FL13DRB5 Push Button Switch can be integrated into various industrial control panels, automation equipment, and electrical applications requiring durable and visible user interface buttons. Discover more products in the Push Button Switch category on EnvMart for reliable industrial electrical components.
