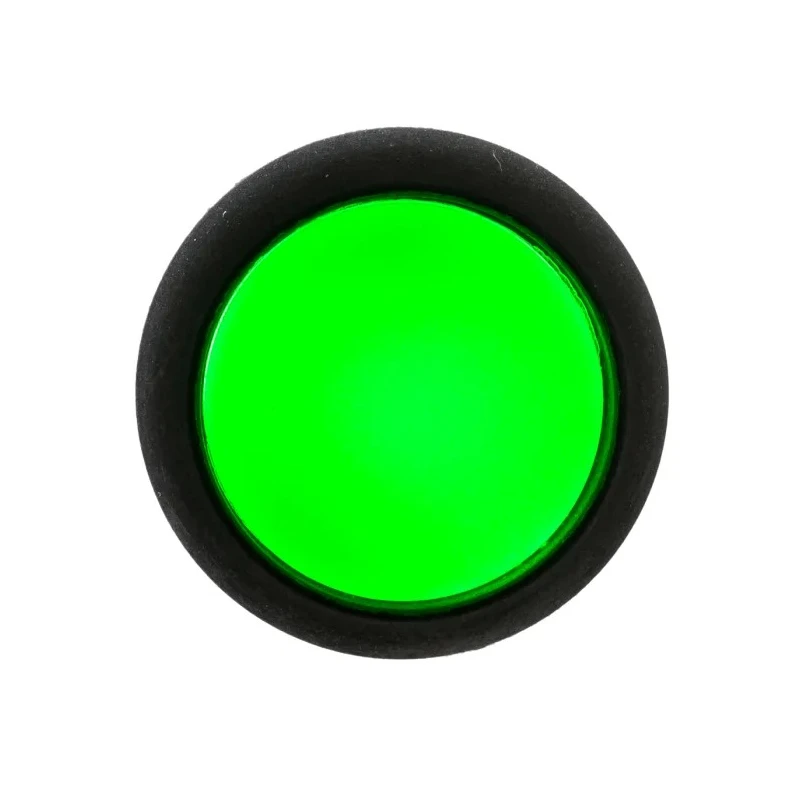

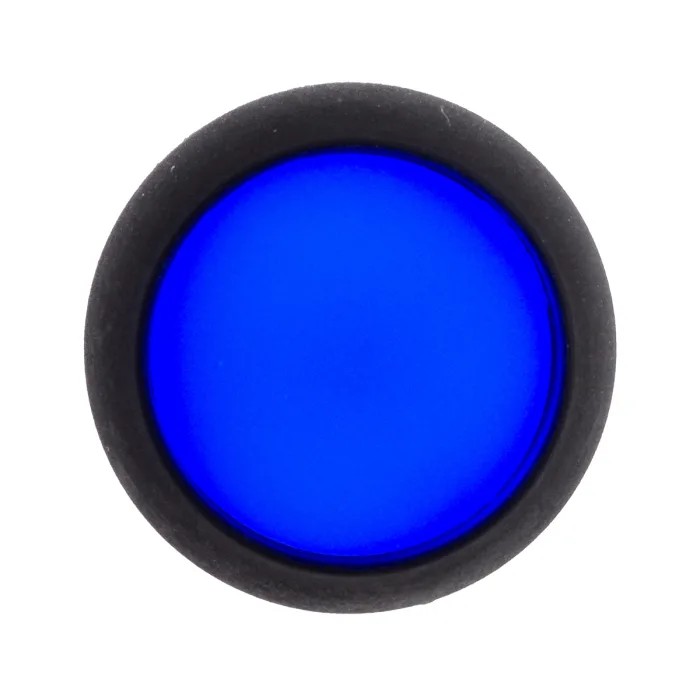

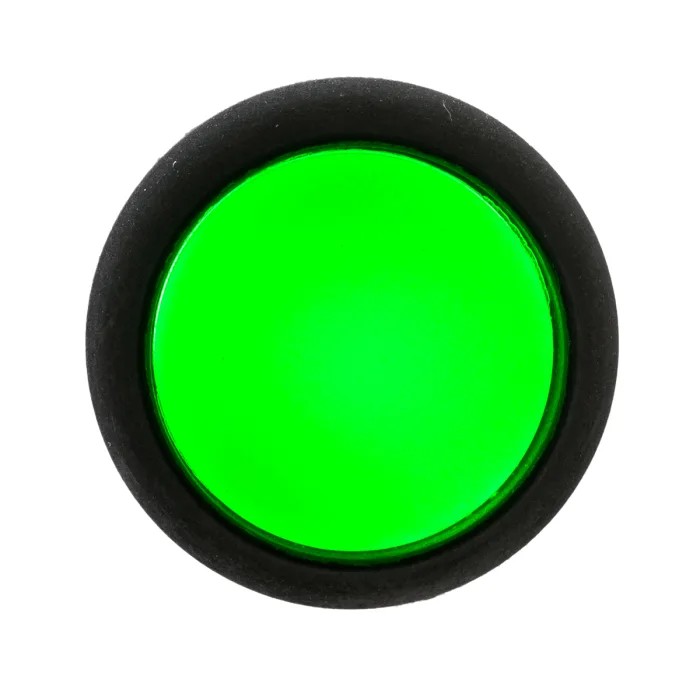

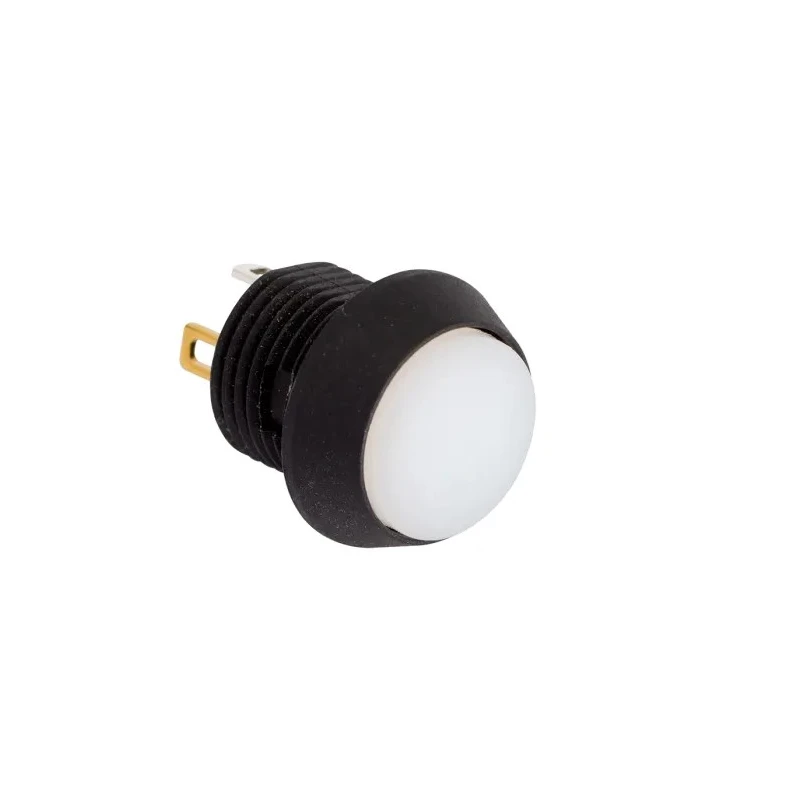

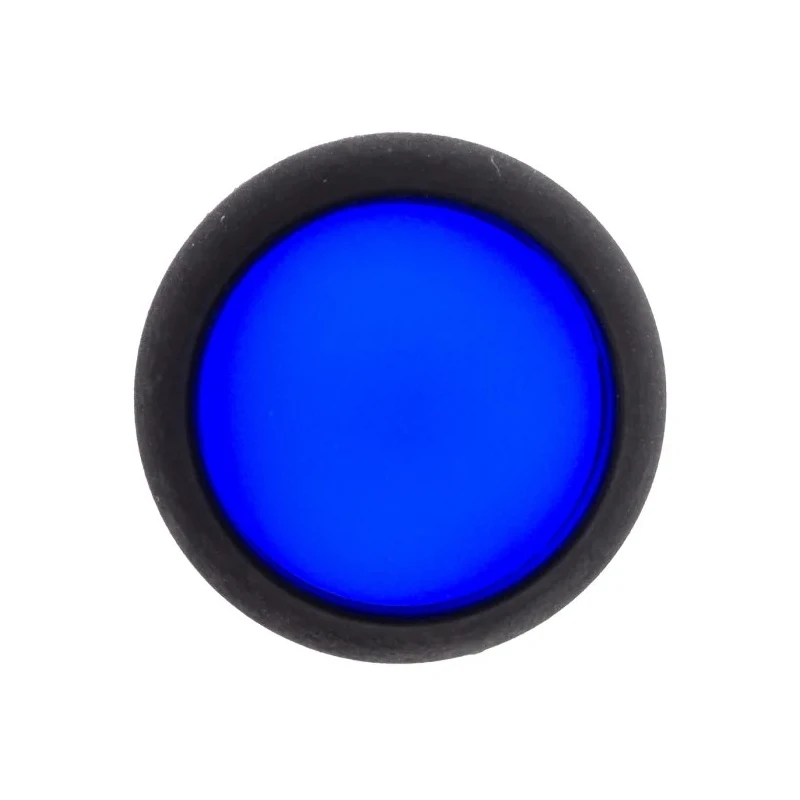

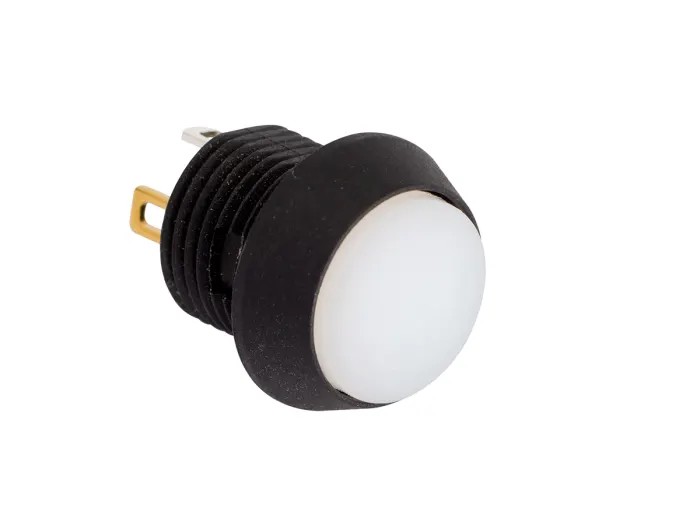

EOZ Illuminated Push Button Switch Panel Mount Momentary SPST 13.5 mm Cutout Blue Green LED IP67 FL13DGB5



Category Push Button Switch Brand EOZ Condition New

Specifications

Country of Origin	France
Brand	EOZ
Operating Temperature Range	-40 to +85°C
Model	FL13DGB5
IP Rating	IP67
Mount Type	Panel
Panel Thickness	1 mm to 6 mm
Ingress Protection	IP67
Series	FL
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	1 NO
Minimum Operating Temperature	-40°C
Panel Cutout Size	13.5 mm
Terminal type	Plug-In
Standards/Approvals	RoHS
LED Colour	Blue, Green
Switch Operation	Momentary
Actuator Colour	White
Actuator Style	Cap
Switch Contact Current	65mA
Contact AC Voltage	2.5kV ac
Contact terminals	Gold plated nickel
LED terminals	Silver plated nickel

Key Features

The push button is illuminated with blue and green LEDs, offering clear visual status indication.
It has an ingress protection rating of IP67, ensuring robustness and resistance to dust and water.
The actuator is white with a cap style suitable for panel mounting.
Operating temperature range is between -40°C and +85°C, suitable for a wide range of environments.
It supports a contact AC voltage of 2.5 kV and a contact current of 65 mA.
The terminals are plug-in type with gold-plated nickel contact terminals and silver-plated nickel LED terminals.
The product is RoHS compliant and vandal resistant by design.
It fits panel thicknesses from 1 mm to 6 mm, making it versatile for many panel applications.

Product Description

The EOZ FL13DGB5 is an illuminated push button switch designed for panel mounting with a momentary switch operation and SPST contact configuration. Its 13.5 mm cutout size and white actuator cap enable compatibility with standard industrial panels. The switch features dual blue and green LED illumination, with the entire front cap lighting up for clear visibility.

Constructed for harsh environments, it offers an ingress protection rating of IP67, making it dust-tight and water-resistant. Suitable for industrial, automation, electrical, and control panel applications, the switch withstands an operating temperature range from -40°C to +85°C, ensuring reliability in diverse settings.

Featuring gold-plated nickel contact terminals and silver-plated nickel LED terminals, the FL13DGB5 ensures durable electrical connection and longevity. Its plug-in terminal type facilitates quick and secure installations. Vandal resistance is inherent due to its sealed design.

This product is RoHS compliant, adhering to environmental and safety standards. The unit supports a contact AC voltage of up to 2.5 kV and a contact current rating of 65 mA. It accommodates panel thicknesses of 1 mm to 6 mm, offering installation flexibility.

The switch is manufactured in France and designed for applications in electrical controls, industrial machinery, automation systems, HVAC controls, and other commercial or industrial equipment setups where reliable user input controls and clear status indication via dual LED colors are necessary.

The push button switch features momentary SPST contact operation for precise control. Blue and green LED illumination provides dual-color visual feedback. Rated IP67 for protection against dust and water ingress. Gold-plated and silver-plated terminals offer reliable electrical performance.

Operating temperature range from -40°C to +85°C ensures durability. Plug-in terminal type promotes ease of installation and maintenance. Panel cutout size of 13.5 mm fits most industrial panels. RoHS compliant meeting environmental regulations.
