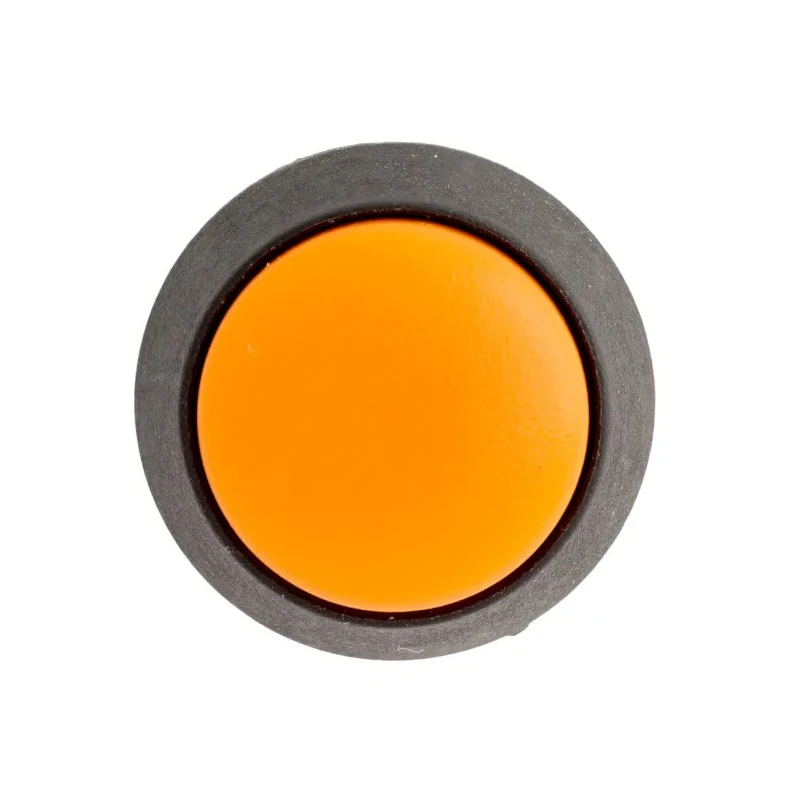

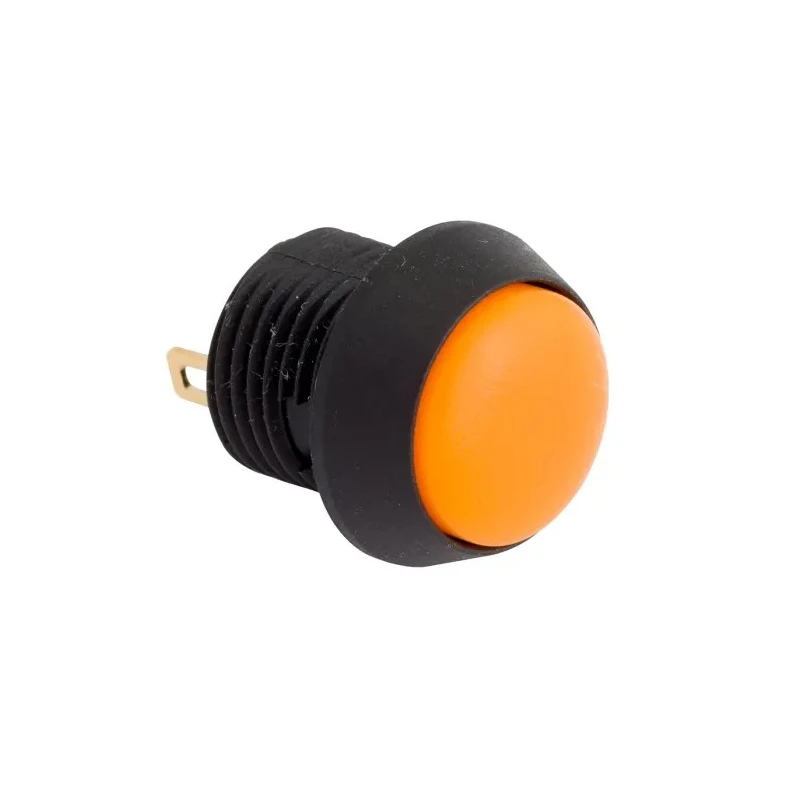

EOZ FL Series Illuminated Momentary Push Button Switch Panel Mount SPST Orange LED IP67 2.5 kV AC FL13LO5
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Operating Temperature Range | -40 to +85°C |
| Model | FL13LO5 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Panel Thickness | 1 mm to 6 mm |
| Ingress Protection | IP67 |
| Series | FL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | 1 NO |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.5 mm |
| Terminal type | Plug-In |
| Standards/Approvals | RoHS |
| LED Colour | Orange |
| Switch Operation | Momentary |
| Actuator Colour | Orange |
| Actuator Style | Cap |
| Switch Contact Current | 65mA |
| Contact AC Voltage | 2.5kV ac |
| Contact terminals | Gold plated nickel |
| LED terminals | Silver plated nickel |
Key Features
- The switch features full face illumination powered by pre-installed 5 V LED.
- Designed for panel mount applications with 13.5 mm panel cutout size.
- Rated IP67 for ingress protection and vandal resistance.
- Gold plated nickel contact terminals ensure reliable connectivity.
- Operating temperature range spans from -40°C to +85°C for extreme environments.
- Plug-in 2.8 x 0.5 mm terminal type allows easy installation.
- Switch contact current rated at 65 mA suitable for control circuits.
- The orange LED provides clear visual indication.
Product Description
EOZ FL13LO5 FL Series Illuminated Momentary Push Button Switch is engineered for high reliability in industrial environments. It features a panel mount design with a 13.5 mm cutout and SPST (Single Pole Single Throw) contact configuration. The switch is equipped with an orange LED that fully illuminates the front cap, enhancing visibility and operator feedback.
This switch is rated IP67, providing complete protection against dust ingress and water immersion, making it suitable for harsh industrial, manufacturing, automation, and electrical control panel applications. The vandal resistant design ensures robustness in demanding setups.
Constructed with gold plated nickel contact terminals and silver plated nickel LED terminals, this switch ensures excellent conductivity and durability. The operating temperature range from -40°C to +85°C accommodates extreme environmental conditions.
Featuring a plug-in terminal type of 2.8 x 0.5 mm, installation is straightforward and fast. The switch operates momentarily with a contact current capability of 65 mA and withstands contact AC voltage up to 2.5 kV.
Ideal uses include control panels, automation equipment, and electrical devices where a reliable illuminated push button switch is required. The compact design fits industry standard cutouts and supports panel thickness from 1 mm to 6 mm.
The switch features full face illumination powered by pre-installed 5 V LED. Designed for panel mount applications with 13.5 mm panel cutout size. Rated IP67 for ingress protection and vandal resistance. Gold plated nickel contact terminals ensure reliable connectivity.
Operating temperature range spans from -40°C to +85°C for extreme environments. Plug-in 2.8 x 0.5 mm terminal type allows easy installation. Switch contact current rated at 65 mA suitable for control circuits. The orange LED provides clear visual indication.
For engineers and technicians working in industrial, electrical automation, manufacturing, and HVAC sectors, the EOZ FL13LO5 push button switch offers robust performance and proven durability. Explore more specialized switches and components in the Push Button Switches & Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range of the EOZ FL13LO5 is from -40°C to +85°C, making it suitable for extreme environments.
This model requires a panel cutout size of 13.5 mm for proper installation.
The switch features a plug-in terminal type of 2.8 x 0.5 mm, allowing for easy installation.
It is rated IP67, providing complete protection against dust ingress and water immersion.
The contact current rating for this switch is 65 mA, suitable for control circuits.
The switch can withstand a contact AC voltage of up to 2.5 kV.
The actuator style of this model is a cap, which is designed for momentary operation.
The contact terminals are made of gold plated nickel, ensuring reliable connectivity.
Yes, the EOZ FL13LO5 is designed with vandal resistance, making it suitable for demanding environments.
This switch complies with RoHS standards, ensuring it meets environmental regulations.
It is suitable for control panels, automation equipment, and electrical devices requiring a reliable illuminated push button switch.
The switch can accommodate panel thicknesses ranging from 1 mm to 6 mm.
