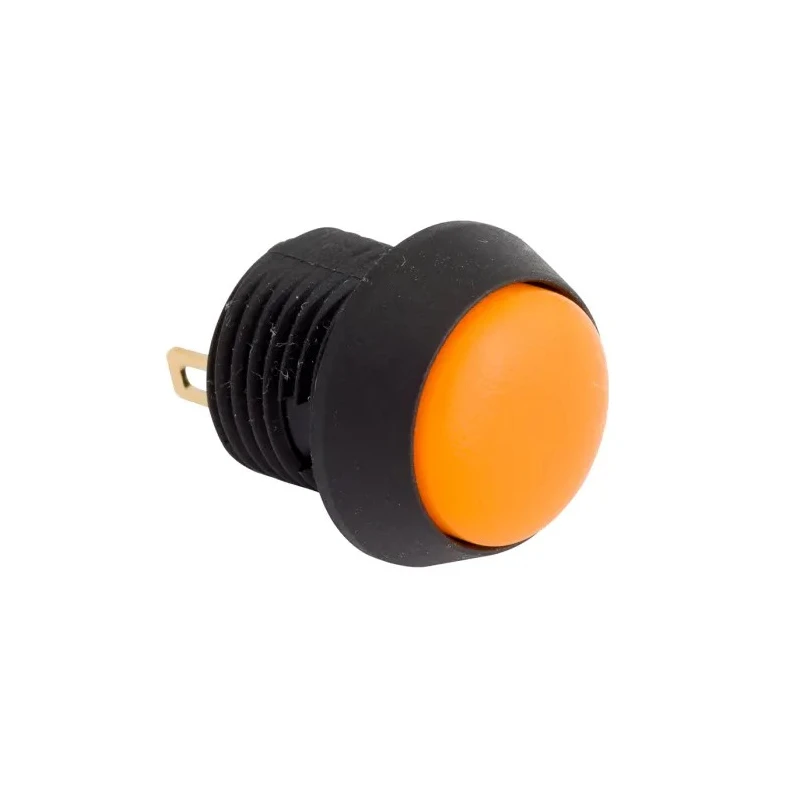

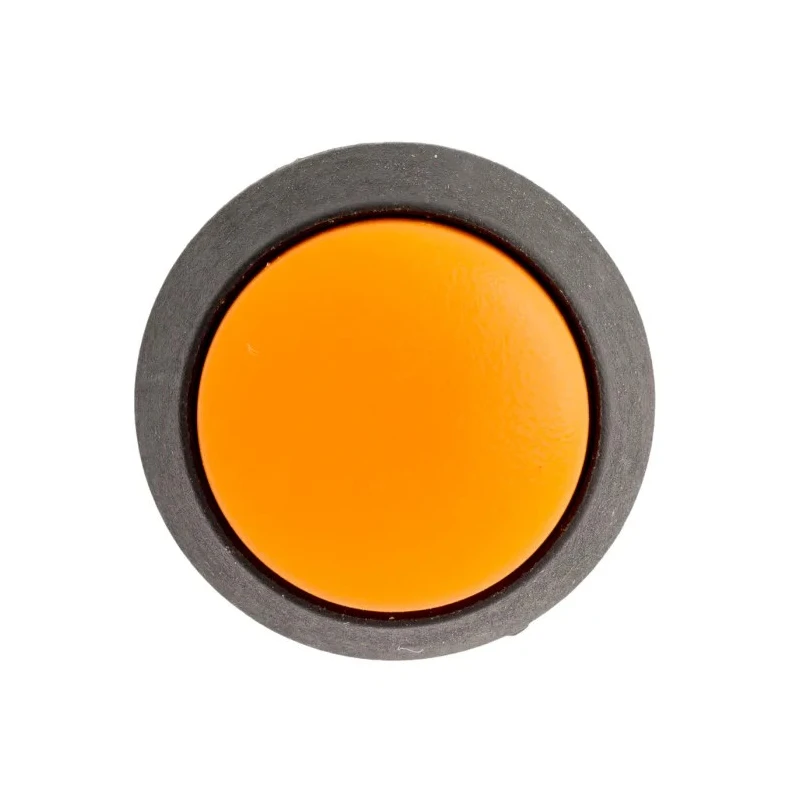

EOZ FL Series Illuminated Momentary Push Button Switch, Panel Mount, 12 mm Cutout, SPST, Orange LED, IP67, 2.5 kV AC FL12LO5
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Operating Temperature Range | -40 to +85°C |
| Model | FL12LO5 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Panel Thickness | 1 mm to 6 mm |
| Ingress Protection | IP67 |
| Series | FL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | 1 NO |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 12 mm |
| Terminal type | Plug-In |
| Standards/Approvals | RoHS |
| LED Colour | Orange |
| Switch Operation | Momentary |
| Actuator Colour | Orange |
| Actuator Style | Cap |
| Switch Contact Current | 65mA |
| Contact AC Voltage | 2.5kV ac |
| Contact terminals | Gold plated nickel |
| LED terminals | Silver plated nickel |
Key Features
- Features full-face orange LED illumination for high visibility.
- Offers IP67 ingress protection ensuring dust-tight and water-resistant performance.
- Constructed for panel thickness from 1 mm up to 6 mm.
- Rated for a high contact AC voltage of 2.5 kV with 65 mA switch contact current.
- Operates reliably within a temperature range of -40°C to 85°C.
- Gold plated nickel contact terminals and silver plated nickel LED terminals enhance durability.
- Vandal resistant design provides robust protection for industrial applications.
- Includes plug-in terminal type measuring 2.8 x 0.5 mm for easy installation.
Product Description
EOZ FL12LO5 is a high-quality illuminated push button switch engineered for industrial and commercial electrical control panels. This momentary switch features a 12 mm panel cutout size and an SPST (Single Pole Single Throw) contact configuration suitable for precise momentary contact operation. The switch incorporates a robust cap-style actuator with full-face orange LED illumination, offering enhanced visibility in control environments.
The FL Series switches are IP67 rated, providing excellent dust and water ingress protection, suitable for harsh environments. With a durable exterior, these switches are vandal resistant, enhancing longevity in demanding installations.
The contact terminals are gold plated nickel, and the LED terminals are silver plated nickel, ensuring reliable electrical connections and corrosion resistance. The switch is compatible with panel thicknesses ranging from 1 mm to 6 mm and equipped with plug-in terminals sized at 2.8 x 0.5 mm for straightforward wiring.
This push button switch operates efficiently across a broad temperature range from -40 to +85°C, meeting industry standards and RoHS compliance. Full-face orange LED for excellent illumination and indication. IP67 ingress protection rating for water and dust resistance.
Vandal resistant design for robust industrial applications. Gold plated nickel contact terminals for enhanced conductivity and durability. Silver plated nickel LED terminals ensure long lamp life and performance. Plug-in terminal type supports easy and secure installation.
Suitable for panels 1 mm to 6 mm thick. RoHS compliant and built to meet rigorous standards.
This EOZ FL Series illuminated push button switch is ideal for automation, electrical control, and industrial machinery panels needing reliable push button operation combined with visual status indication. Explore more EOZ Push Button Switches for varied configurations and illumination options in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Single Throw (SPST) contact configuration, suitable for momentary contact operation.
This model operates efficiently within a temperature range of -40°C to 85°C.
The EOZ FL Series switch has an IP67 rating, providing excellent protection against dust and water ingress.
The required panel cutout size for this switch is 12 mm.
The switch has a contact current rating of 65 mA.
It is equipped with plug-in terminals measuring 2.8 x 0.5 mm, allowing for easy installation.
The contact terminals are made of gold plated nickel, while the LED terminals are silver plated nickel, enhancing conductivity and durability.
This model features a cap-style actuator with full-face orange LED illumination for high visibility.
Yes, the switch is RoHS compliant, meeting industry standards for safety and environmental impact.
The switch is designed to be vandal resistant, providing robust protection suitable for industrial applications.
This switch is compatible with panel thicknesses ranging from 1 mm to 6 mm.
It is ideal for automation, electrical control, and industrial machinery panels requiring reliable push button operation and visual indication.
