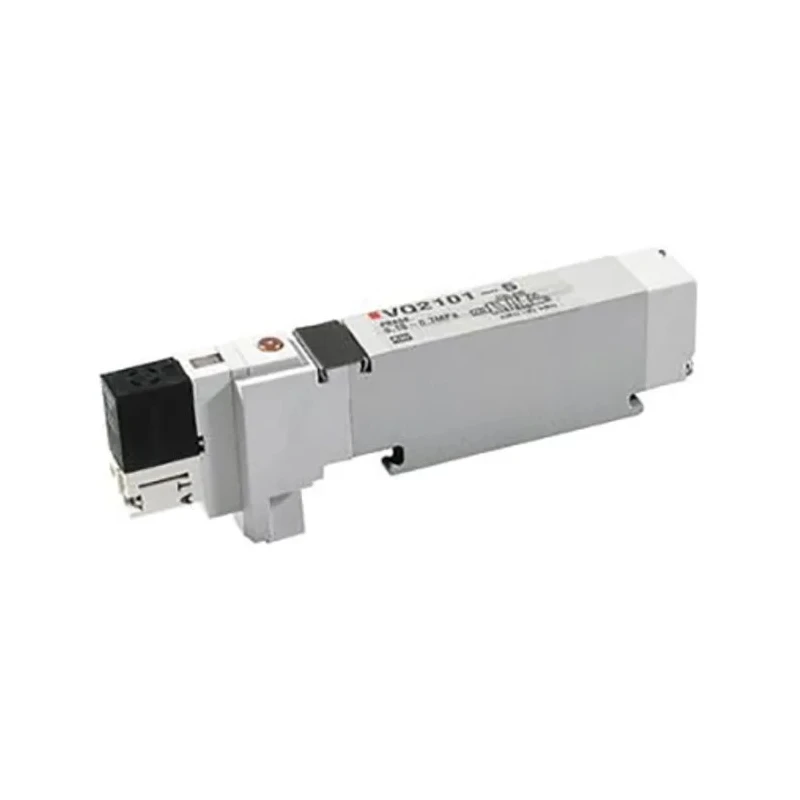

SMC Pneumatic Solenoid Valve 5/2 Solenoid/Spring VQ100 Series 24V DC 1W Power

SMC VQ2101N-51-Q pneumatic solenoid valve from the VQ100 series features a 5/2 solenoid/spring configuration with a coil voltage of 24V DC and a power consumption of 1W. This valve is designed for high-speed, frequent operation, delivering stable response times and a long service life. Ideal for pneumatic applications requiring precise control of air or inert gas flow.

The valve includes a die cast zinc body for sturdy construction and rubber seals for tight sealing performance. It provides a 5-port arrangement suitable for various port types, including cylinder, elbow fitting, exhaust, one-touch fitting, and support ports. The valve mounts on a base and employs a single solenoid actuator combined with spring return, enabling reliable switching between two positions.

Operating pressure ranges from 0.15 to 0.7 MPa with maximum pilot pressure of 0.7 MPa, supporting a working temperature range between -10°C and 50°C. Its compact size with dimensions 123 mm (length) x 63.5 mm (width) x 93.5 mm (height) allows installation flexibility in industrial automation, manufacturing, HVAC, and fluid power systems.

The product conforms to CE and RoHS certifications, ensuring compliance with industry standards. The solenoid valve is engineered in Japan and delivers efficient control with minimal power consumption of 1W.

Key features include its 5/2 valve function, female port gender, and effective sealing with rubber materials. This valve supports manifold mounting and quick piping connections via built-in one-touch fittings, saving installation time and labor.

Operates with a 5-port configuration designed for cylinder and exhaust port connections. Die cast zinc body offers durable and robust housing. Features rubber sealing ensuring reliable leak-tight performance. Valve function is 5/2 double position with base mount type for easy installation.

Operating pressure up to 0.7 MPa, suitable for air and inert gases. Compact dimensions: length 123 mm, width 63.5 mm, height 93.5 mm. Designed for operating temperatures from -10°C to 50°C for versatility in many environments.

Includes CE and RoHS compliant standards for quality assurance. Single solenoid actuation with spring return ensures stable operation. Construction utilizes female port gender and one-touch fitting for convenience.

This SMC Pneumatic Solenoid Valve is suitable for a wide range of industrial and commercial pneumatic automation applications, including manufacturing assembly lines, fluid handling systems, laboratory equipment, HVAC controls, and packaging machines. Its robust construction and reliable design ensure sustained performance and easy maintenance.
