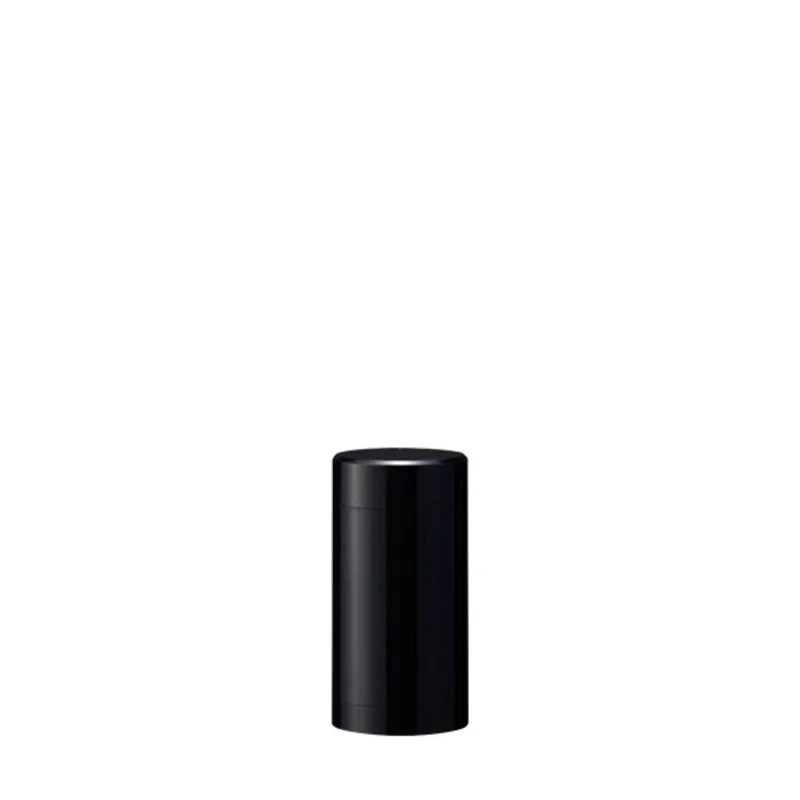

Patlite LR5 Series Black Steady Effect Body Unit LED Bulb 24V dc AC IP65 LR5-02KTNK

Patlite LR5-02KTNK from the LR5 Series is a black steady effect body unit featuring an LED Bulb designed to operate at 24V dc power supply with AC compatibility and protection rating of IP65. It is built for industrial and automation signalling applications where reliable, visible signaling is essential.

The unit’s modular twist and lock design enables quick and easy installation or replacement of components, allowing users to customize or reconfigure LED modules without difficulty. Unlike flashing signal units, this model provides a steady light output, ideal for continuous status indication in control gear environments.

Constructed with a durable black housing, the device incorporates a redesigned lens and enhanced module construction that delivers bright and uniform illumination with a light output intensity reaching up to 2000mcd. This improves visibility from further distances, which is critical for monitoring in noisy or visually complex industrial settings.

The body unit boasts a compact form factor, measuring 99mm in height and 50mm in base diameter, supporting direct mounting installations. It operates efficiently with a current consumption of 45mA and connects via cable terminal type. The operating temperature range from -20°C to 50°C, along with an IP65 ingress protection, ensures dependable performance under harsh conditions involving dust and water exposure.

This model does not include a sounder module, thus it produces no audible signals but maintains an IP65 rating due to its enclosed construction. It is certified to CSA standards and complies with international directives including EMC (EN61000-6-4 and EN61000-6-2), FCC Part 15 Class A, and low-voltage directives IEC/EN60947-5-1 and EN62471. The unit is manufactured in Indonesia ensuring international safety and quality compliance.

Features a modular twist and lock system for easy customization and reconfiguration. Steady LED light effect for clear and continuous indication. Redesigned lens and module construction for increased brightness and visibility.

Compact design with 99mm height and 50mm base diameter for base mounting. IP65 rated for robust protection against dust and water ingress. Wide operating temperature range from -20°C to 50°C suitable for industrial environments.

Consumes 45mA current with cable terminal type connection. Certified to CSA, FCC, EMC, and low-voltage safety standards. Manufactured in Indonesia ensuring quality and compliance.

This Patlite LR5-02KTNK black steady effect body unit is ideal for automation signaling in industrial, manufacturing, and electrical control scenarios. It is designed to provide reliable, bright visual status indication with modular flexibility and rugged durability for challenging environments.
