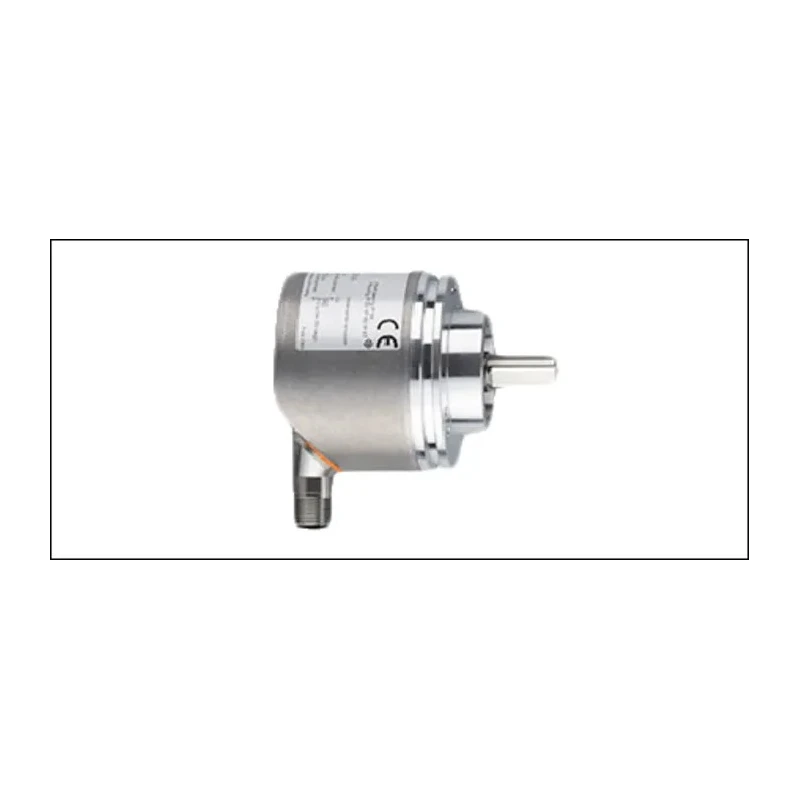

ifm electronic RV3100 Series Incremental Encoder, 30V dc, 9999 ppr, TTL HTL Signal, Solid Shaft 10 mm RV3100

ifm electronic RV3100 Series Incremental Encoder is a precision industrial sensor designed for motion control applications requiring high resolution and reliability. The encoder features incremental encoder technology with programmable pulses per revolution up to 9999ppr, supporting precise position feedback in automation systems. The device operates with a solid 10 mm shaft and offers TTL and HTL signal outputs, making it compatible with a broad range of control equipment.

This encoder is engineered for durability with an IP64 ingress protection rating, safeguarding against dust ingress and water splashes, maintaining reliable operation in demanding industrial environments. It supports interfacing through IO-Link and offers a switching frequency of 1MHz, enabling rapid and accurate signal generation up to 12000 rpm maximum revolutions.

The RV3100 encoder is built with a clamping flange mount type for robust mechanical attachment. Operating temperature ranges from -40°C to 85°C, allowing use in varied climatic and industrial conditions. It undergoes CE certification ensuring compliance with European electrical safety standards. Manufactured in Poland, it reflects high-quality engineering standards.

Accessory options are available enhancing installation flexibility and system integration. These include software for configuration, cables, memory plugs, sockets, spring discs, couplings, measuring wheels and brackets, supporting extensive customization. The magnetic detection system improves the device’s resistance to environmental disturbances.

Operates with maximum supply voltage of 30V dc. Output signal types include TTL and HTL for compatibility. Encodes positions with 9999 pulses per revolution accuracy. Mount type is clamping flange providing secure fit. IP64 rating protects against dust and splash water.

Operating temperature range from -40°C to 85°C suits industrial conditions. Supports IO-Link interface for digital communication. Switching frequency of 1 MHz allows fast response. Dimensions: Depth 79.5 mm, Height 64 mm, Width 58.6 mm.

Made in Poland with CE approval.

This high-precision Incremental Encoder from ifm electronic is ideal for industrial, manufacturing, automation, and motion control applications requiring dependable and accurate shaft position feedback. Explore the extensive motion sensor category and other ifm electronic products to enhance your automation solutions.
