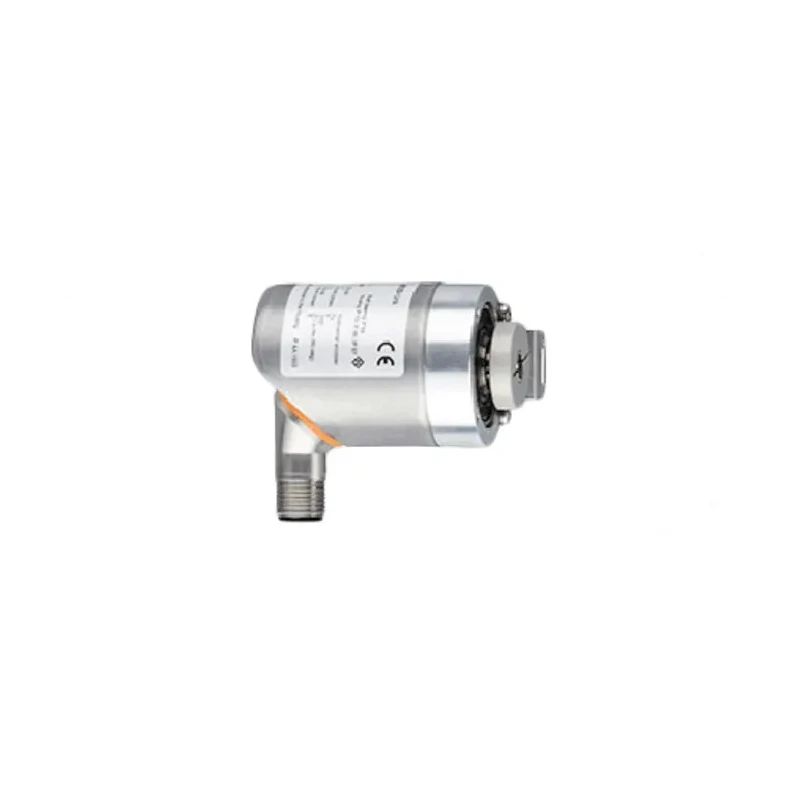

ifm electronic Incremental Encoder RA3100 Series 30V DC, 10000 PPR, HTL/TTL Signal, Hollow Shaft 6 mm RA3100

ifm electronic RA3100 Incremental Encoder Series is engineered for precision position sensing in industrial automation and motion control applications. This series offers programmable incremental encoders with a robust magnetic detection system, available in solid or hollow shaft variants.

The RA3100 series supports up to 10000 pulses per revolution, making it suitable for high-resolution feedback requirements. It features HTL and TTL output signals enabling compatibility with various control devices and systems. The hollow shaft design with a diameter of 6 mm and hollow shaft flange mount facilitates easy and flexible installation.

Operating at a maximum of 12000 rpm, these encoders can handle rapid rotational speeds. The product supports an IO-Link interface for efficient device communication and configuration. With an operating temperature range from -40°C to 85°C and an IP64 ingress protection rating, the encoder is resilient in harsh industrial environments.

Compact overall dimensions (58.5 mm depth, 43.3 mm height, 36.5 mm width) make it suitable for space-constrained installations. The switching frequency of 1 MHz ensures quick and reliable signal output, critical in precise automation control loops.

This encoder series offers extensive accessories such as software tools, various cables, memory plugs, sockets, spring discs, couplings, measuring wheels, and brackets. Applications include industrial machinery automation, robotics, conveyor systems, and process control instrumentation where accurate motion feedback is essential.

Choose the ifm electronic RA3100 Incremental Encoder for a reliable, durable, and versatile encoder solution in factory automation and motion control. Explore more motion control sensor products and related accessories at EnvMart for your industrial and automation needs.
