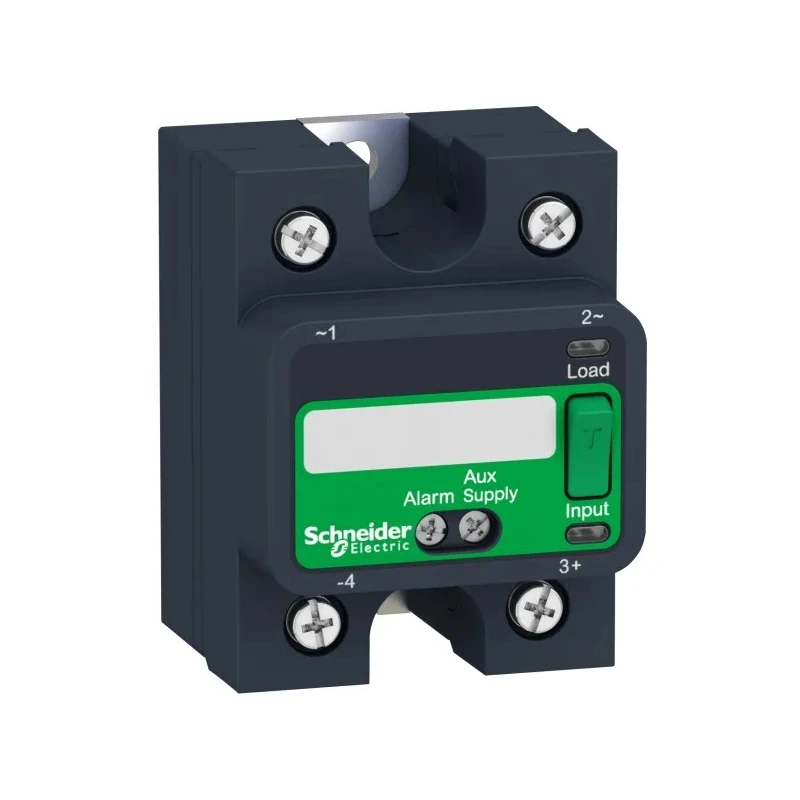

Schneider Electric Solid State Relay Panel Mount 75 A Load 660 V AC Load 32 V DC Control SSP1

Schneider Electric SSP1 Series Solid State Relay SSP1 provides an efficient panel mount solution for industrial electrical control applications with a maximum load current rating of 75 A and a load voltage capacity of up to 660 V AC. It uses a screw terminal type for easy and secure mounting. The solid state relay employs zero voltage switching technology, reducing electrical noise and enhancing device durability.

Designed for continuous operation in industrial environments, it supports control voltages from 4 V DC to 32 V DC and maintains functionality across temperatures ranging from -40°C to 80°C. The relay structure features a Single Pole Single Throw (SPST) contact configuration and has an off-state leakage current of 1 mA ensuring minimal energy loss. Its capacitance at 8 pF further contributes to noise reduction during switching operations.

The relay is constructed using SCR output type, enabling a full electronic and maintenance-free operation with unlimited lifespan. Its IP20 protection rating guards against solid objects and mechanical impact, while it is resistant to shock and vibration, making it suitable for harsh industrial environments. With dimensions of 58.9 mm height, 44.5 mm length, and 34.29 mm width, it offers a slim and modular design for space-conscious panel installations.

This Schneider solid state relay meets multiple international certifications including CE, CSA, EAC, EN/IEC 62314, REACH, RoHS, and UL ensuring compliance with global quality and safety standards. Its design also features a smart diagnostic signal alarm output to aid troubleshooting and minimize downtimes during machine operation.

Applications range widely across industries including industrial machines, packaging machines, injection moulding, HVAC systems, building automation, medical equipment, and textile machines. The solid state relay's silent and reliable switching without mechanical contacts reduces wear, prolongs equipment life, and enhances system efficiency.

Supports a maximum load current of 75 A for demanding applications. Designed for panel mounting with screw terminal connections. Operates at maximum load voltage of 660 V AC, suitable for industrial use. Control voltage ranges from 4 V DC minimum to 32 V DC maximum.

Features zero voltage switching for reduced electrical noise and enhanced efficiency. Has an IP20 rating protecting against solid intrusions and limited dust. Constructed with robust SCR output type for reliable solid state switching.

Operates reliably between -40°C to 80°C temperature range. Complies with CE, CSA, EAC, EN/IEC 62314, REACH, RoHS, and UL standards. Manufactured in Mexico ensuring international quality standards. Explore the Schneider Electric Solid State Relay range on EnvMart for reliable, efficient, and maintenance-free industrial automation components tailored to diverse applications.
