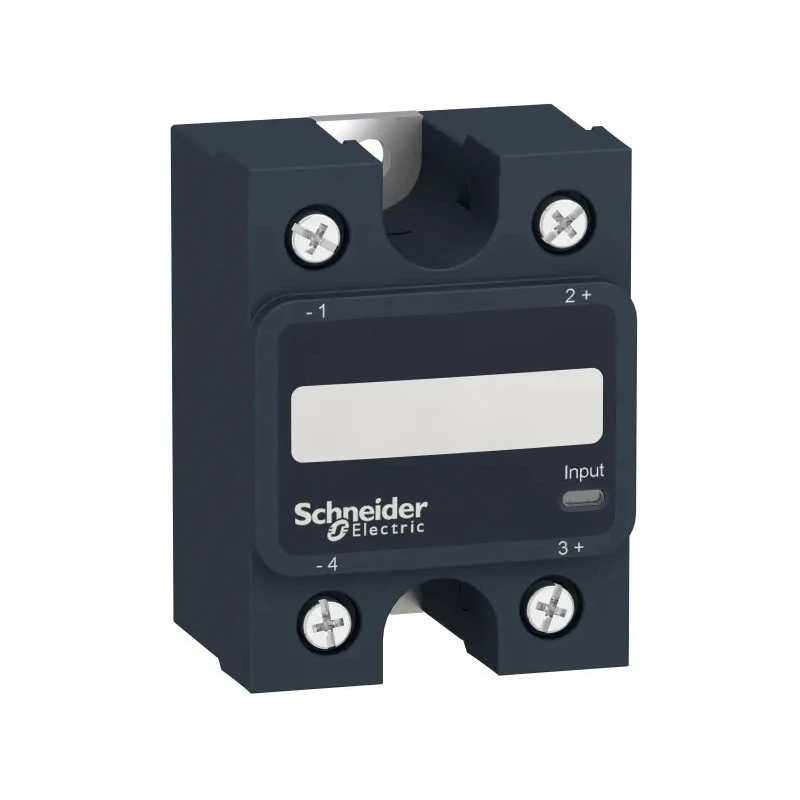

Schneider Electric Harmony Relay Series Solid State Relay Panel Mount 50A Load 300V AC 3-32V DC Control SSP1A150BDT

Schneider Electric SSP1A150BDT Harmony Relay Series solid state relay is a robust industrial component intended for panel mounting with a maximum load capability of 50 amperes. It features a control input voltage range of 3V to 32V DC and supports load voltages ranging from 24V to 300V AC with zero voltage switching, ensuring minimal electrical noise and enhanced efficiency. The relay employs a screw terminal connection and has a Single Pole Single Throw (SPST) contact configuration.

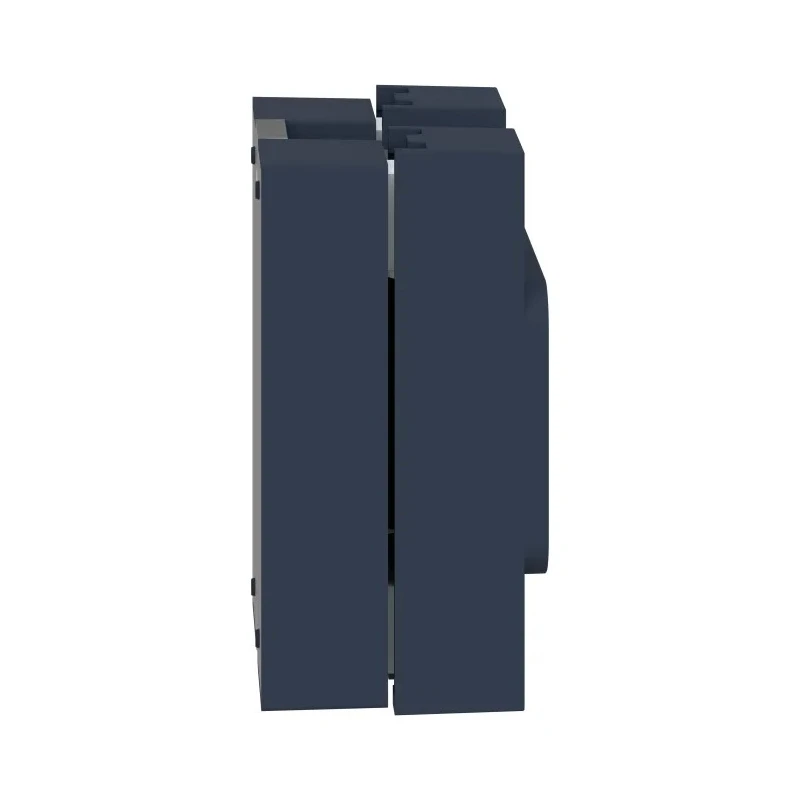

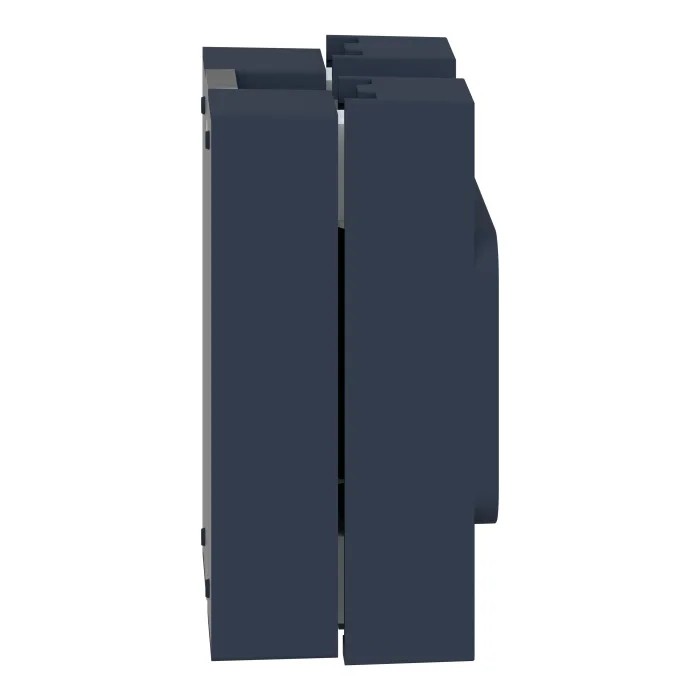

This solid state relay is equipped with a thermal pad input and offers silent operation without moving contacts, ensuring maintenance-free use and reliability over an unlimited electronic lifespan. Its compact form factor with dimensions 58.9mm height, 34.29mm width, and 44.5mm length allows easy integration into control panels.

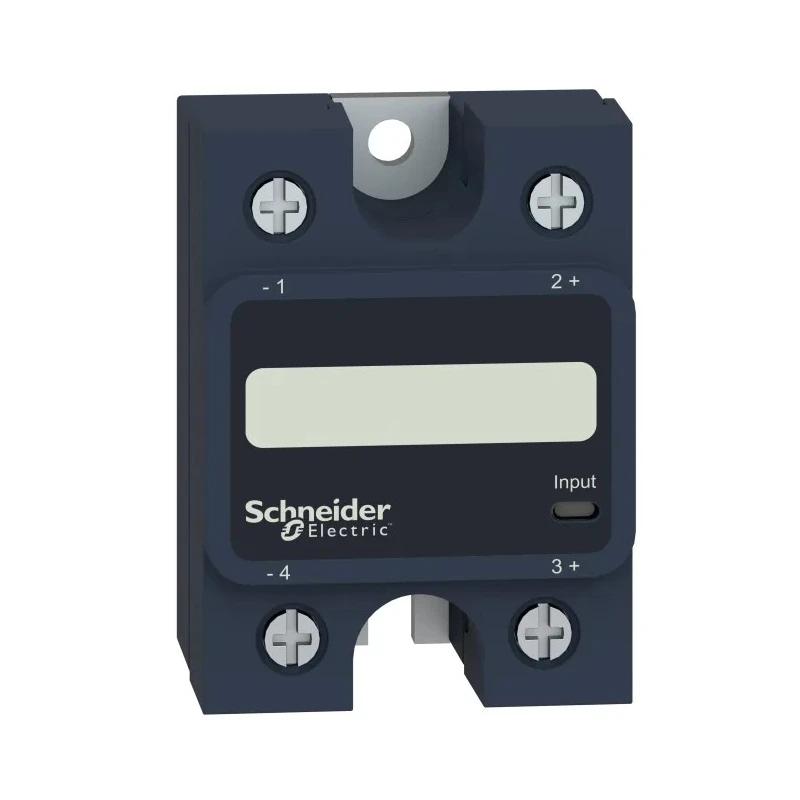

The device includes a visual indicator for monitoring input status and an alarm output for swift fault detection and troubleshooting, minimizing downtime in critical industrial environments.

Operating in a temperature range of -40°C to 80°C with an IP20 protection rating, this relay withstands harsh environments, shocks, and vibrations commonly encountered in manufacturing, HVAC, packaging, textile, building automation, and medical equipment sectors.

Rated for 50A maximum load current with panel mount capability. Input control voltage between 3V and 32V DC for accurate switching. Load voltage range of 24V to 300V AC with zero voltage switching function. Screw terminal type connection and SPST contact configuration.

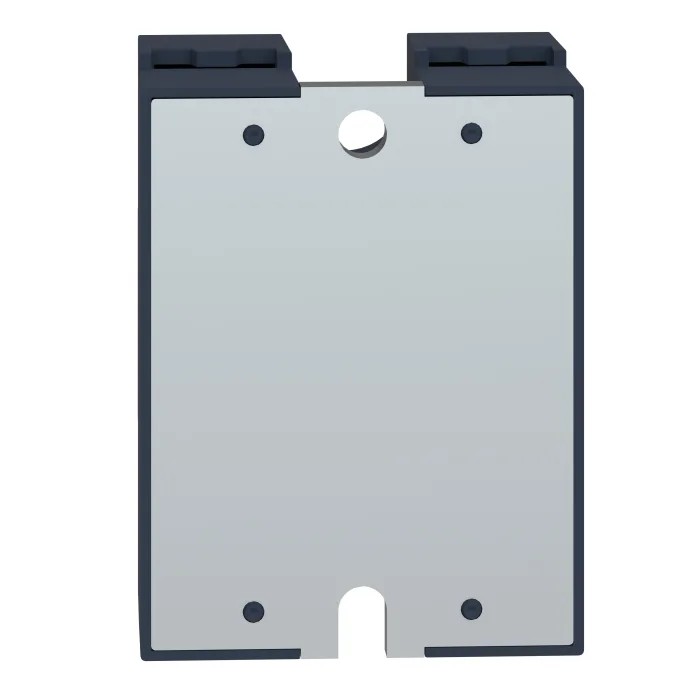

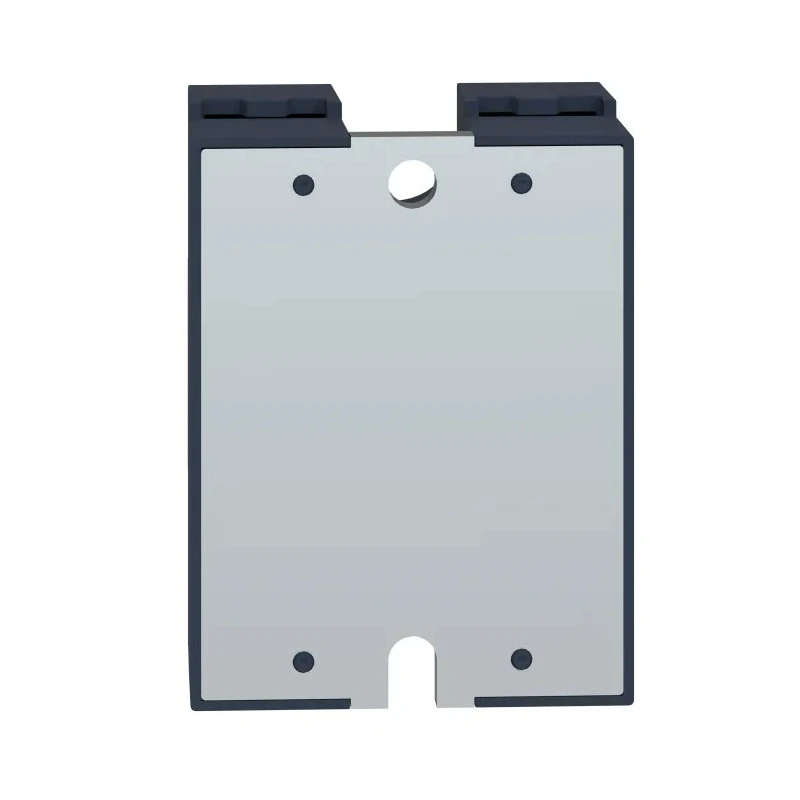

Thermal pad input design for efficient heat dissipation. Visual input status indicator and alarm output to enhance diagnostics. Maintenance-free, silent operation with no moving parts. Compact dimensions for easy panel integration.

IP20 protection and operating temperature from -40°C to 80°C. Suitable for industrial machines, packaging, HVAC, textile, building and medical equipment applications.

Produced by Schneider Electric with strict adherence to international standards including CE, CSA, EAC, EN/IEC 62314, REACH, RoHS, and UL, this Solid State Relay ensures high quality and dependable performance. The device is made in Mexico and is part of the renowned Harmony Relay series known for advanced solid state switching solutions.
