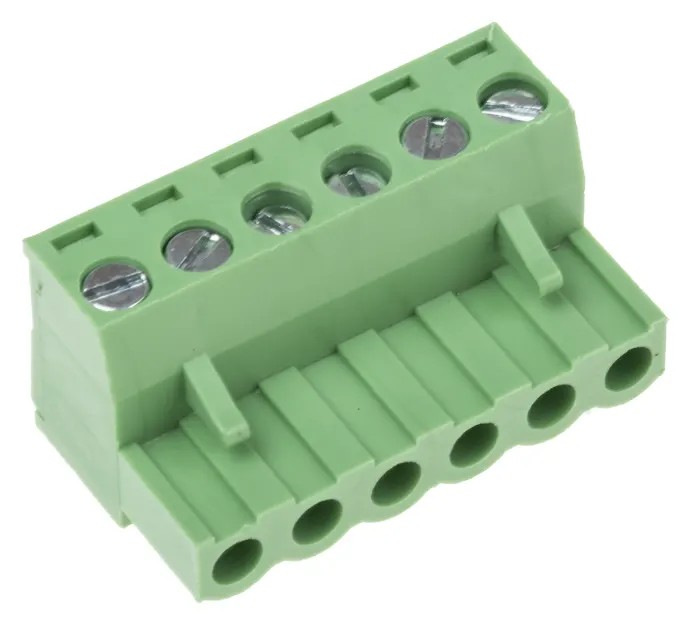

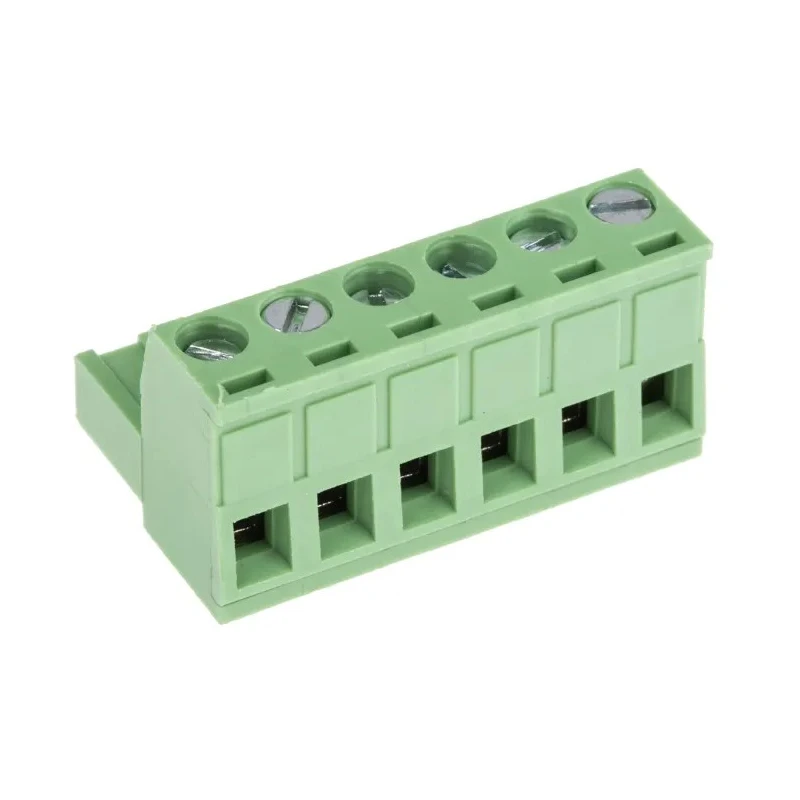

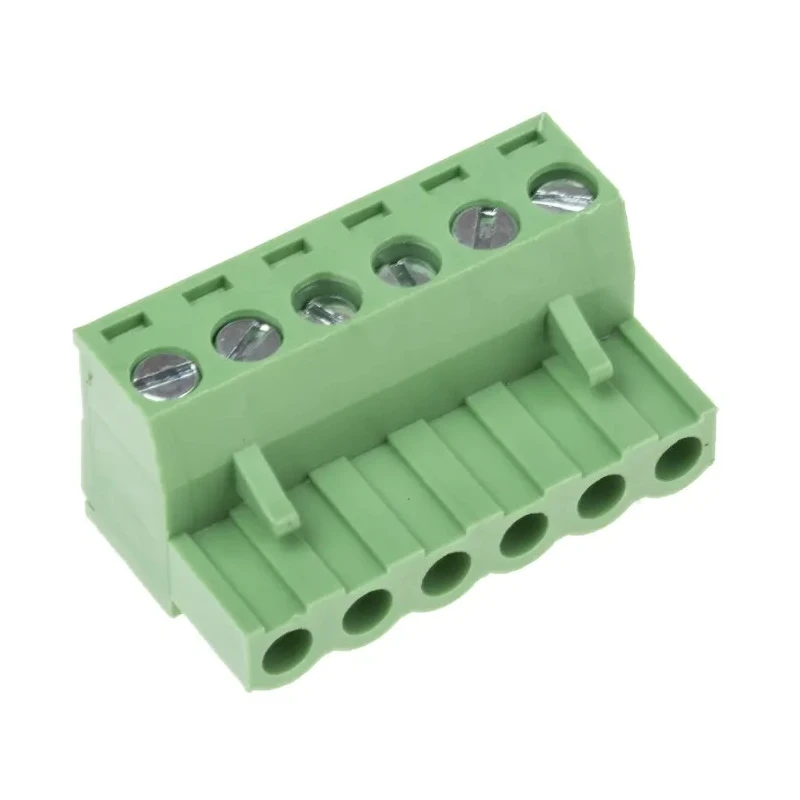

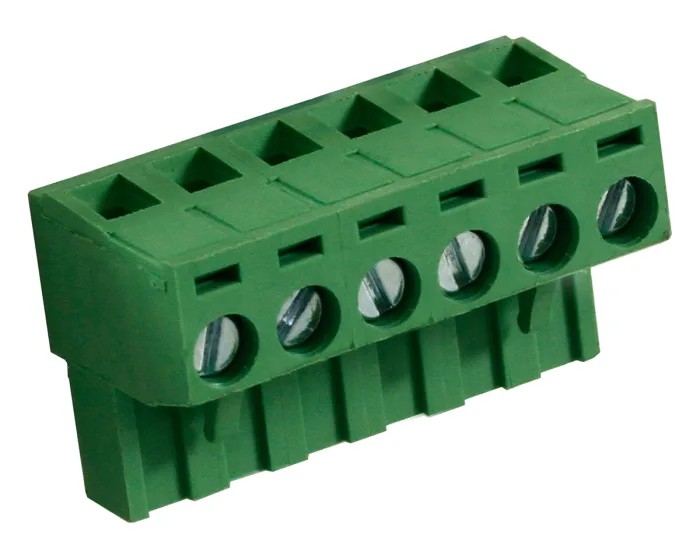

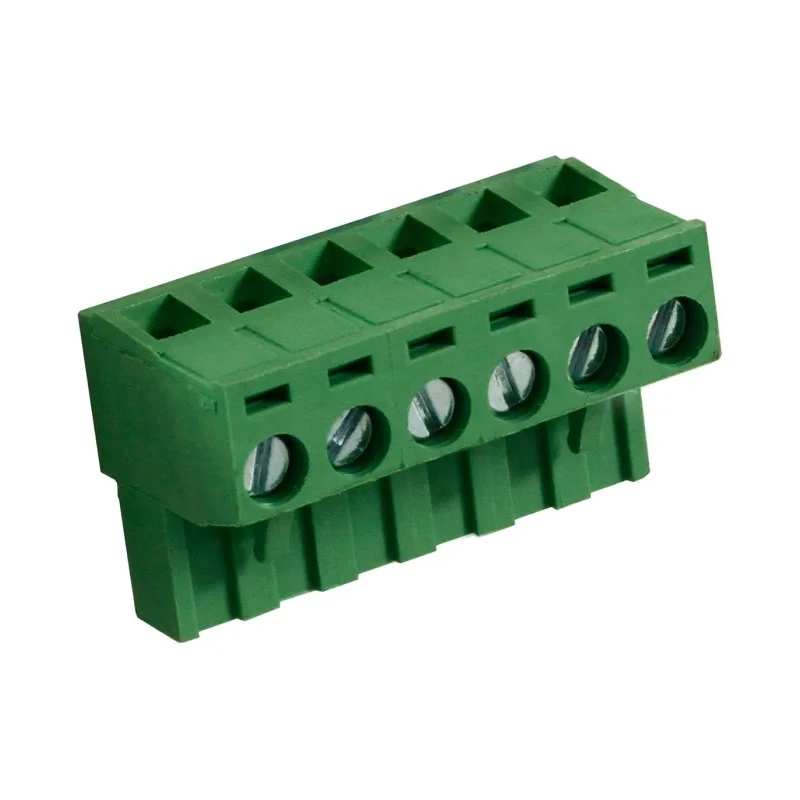

RS PRO Pluggable Terminal Block 6-Contact 5.08 mm Pitch 1 Row 300V 15A 897-1228
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| Colour | Green |
| Orientation | Right Angle |
| Current | 15A |
| Length | 30.5mm |
| Model | 897-1228 |
| Depth | 15mm |
| Width | 17.7mm |
| Housing Material | Polyamide |
| Series | RS PRO |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | cURus, UL94-V0 |
| Number of Contacts | 6 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.33mm² |
| Maximum Wire Size mm² | 2mm² |
| Wire Connection Method | Screw |
| RS PRO Pluggable Terminal Block, 6-Contact, 5 mm Pitch, 1 RowBrand | RS PRO |
Key Features
- Constructed from flame retardant UL94-V0 polyamide material in green colour.
- Features a right-angled female connector with screw wire connection method for stability.
- Supports wire sizes from 0.33 mm² to 2 mm² with a maximum current rating of 15A.
- Operates safely at voltages up to 300V with certified standards cURus and UL94-V0.
- Includes tin-plated brass terminals with M2.5 captive screws and guided pin alignment for reliable contact.
- Designed for safe data, signal, and power transfer directly to PCBs in industrial and electronic applications.
Product Description
RS PRO 897-1228 is a high-quality Pluggable Terminal Block featuring 6 contacts with a 5.08 mm pitch in a single row configuration. It is engineered for use in industrial electronics, power connections, and circuit boards, providing reliable and secure electrical connections.
The terminal block is constructed from green polyamide material that wears flame retardant UL94-V0 certification, ensuring safety under demanding conditions. The connector is female gender with a right-angle orientation, enabling versatile PCB mounting options.
This product supports wire sizes from 0.33 mm² to 2 mm², either solid or stranded, and utilizes an M2.5 slotted captive screw connection for robust wire retention. Rated for currents up to 15 Amps and voltages up to 300 Volts, it complies with industry standards cURus and UL94-V0, offering excellent durability and safety.
The tin-plated brass terminals and guided pin alignment facilitate stable electrical contact and ease of installation. Its compact size (30.5 mm length, 17.7 mm width, 15 mm depth) allows integration in dense circuitry.
This terminal block is ideal for use in industrial automation, electronics manufacturing, control panels, and power distribution applications where safety and reliability are paramount.
Constructed from flame retardant UL94-V0 polyamide material in green colour. Features a right-angled female connector with screw wire connection method for stability. Supports wire sizes from 0.33 mm² to 2 mm² with a maximum current rating of 15A.
Operates safely at voltages up to 300V with certified standards cURus and UL94-V0. Includes tin-plated brass terminals with M2.5 captive screws and guided pin alignment for reliable contact. Compact dimensions: 30.5 mm length, 17.7 mm width, and 15 mm depth.
Designed for safe data, signal, and power transfer directly to PCBs in industrial and electronic applications. Browse the Electronics Components and Power Connectors categories for additional RS PRO professional-grade terminal blocks and connectors at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this terminal block is 15A.
It operates safely at voltages up to 300V.
This terminal block supports wire sizes from 0.33 mm² to 2 mm², accommodating both solid and stranded wires.
It is constructed from flame retardant UL94-V0 polyamide material.
This model features a right-angled female connector with a screw wire connection method for stability.
The terminal block has a length of 30.5 mm, a width of 17.7 mm, and a depth of 15 mm.
It complies with cURus and UL94-V0 standards, ensuring safety and reliability.
This terminal block features 6 contacts in a single row configuration.
The pitch of the contacts is 5.08 mm.
It is designed for safe data, signal, and power transfer directly to PCBs in industrial and electronic applications.
It utilizes M2.5 slotted captive screws for robust wire retention.
The terminal block is manufactured in China.
