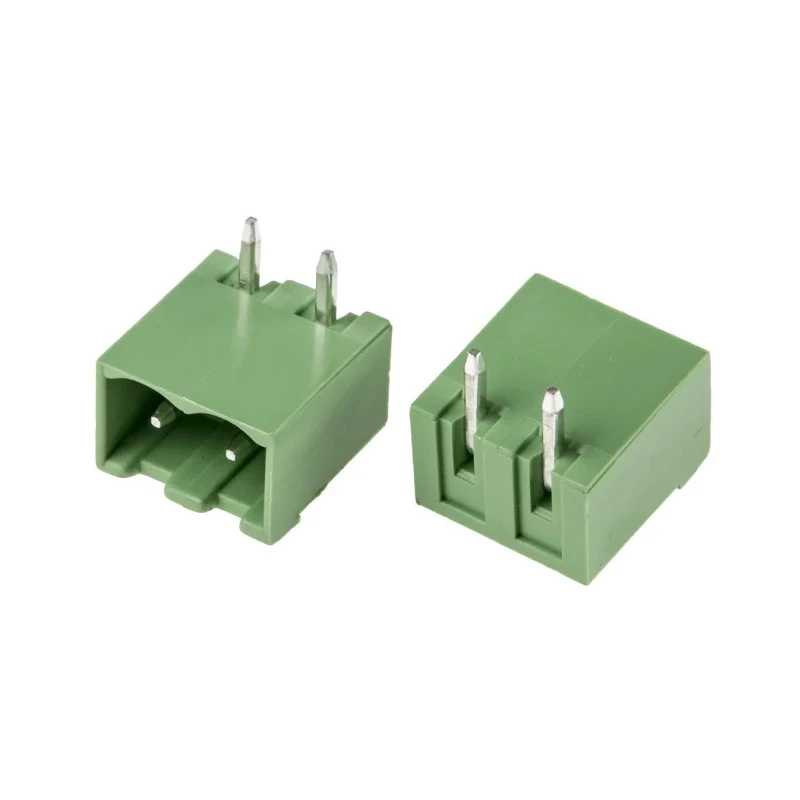

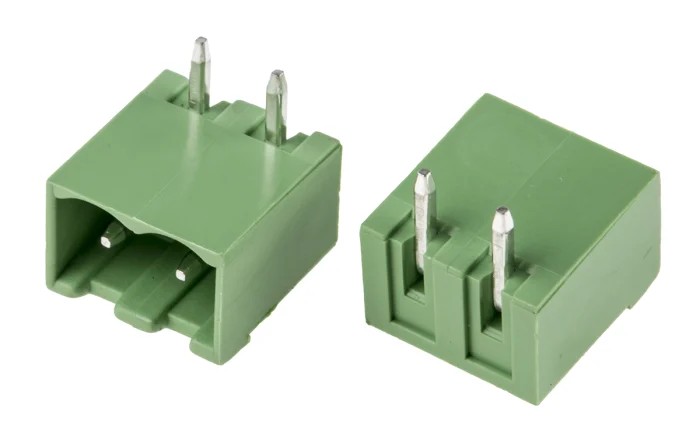

RS PRO Right Angle Through Hole Pluggable Terminal Block, 2 Contacts, 5 mm Pitch, 1 Row, Shrouded 897-1183

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Right Angle Through Hole Pluggable Terminal Block, 2 Contacts, 5 mm Pitch, 1 Row, Shrouded 897-1183

Name: RS PRO Right Angle Through Hole Pluggable Terminal Block, 2 Contacts, 5 mm Pitch, 1 Row, Shrouded 897-1183
Brand: RS PRO
SKU: 386172
Price: 0.21 USD
Availability: InStock



Category Pluggable Terminal Block Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	RS PRO
Orientation	Right Angle
Current	15A
Model	897-1183
Mount Type	Through Hole
Housing Material	Polyamide
Series	RS PRO
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	5mm
Standards/Approvals	UL94-V0, LR, Flame Resistant
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Tail Pin Length	3.5mm
RS PRO Pluggable Terminal Block, 2-Contact, 5.08 mm Pitch, 1 RowBrand	RS PRO

Key Features

Constructed with flame retardant polyamide housing.
Shrouded design for enhanced safety and polarisation.
Rated for currents up to 15A and voltages up to 250V.
Right angle orientation with through-hole mounting.
Features tin-plated contacts and male contact gender.
Operates between -40°C and 105°C temperature range.
Solder termination with 3.5 mm tail pin length.
Complies with UL94-V0, LR flame resistance standards.

Product Description

RS PRO model 897-1183 is a right angle, through hole pluggable terminal block designed with 2 contact points and a 5 mm pitch in a single row configuration. The terminal block features a shrouded design made of polyamide with UL94-V0 flame resistant rating to ensure safety and reliability in electrical assemblies.

This component supports currents up to 15 amps and voltages up to 250 volts, suitable for a variety of electronics and industrial applications including PCB connections in power connectors and control circuits. The right angle orientation facilitates PCB layout flexibility while the through hole mount type ensures robust mechanical and electrical connection.

With tin-plated male contacts and a solder termination type with a 3.5 mm tail pin length, the terminal block is optimized for stable signal and power transmission. It reliably operates within a temperature range from -40°C to 105°C, withstanding demanding thermal conditions commonly found in industrial automation, electronics manufacturing, and laboratory equipment.

Certified to UL94-V0 and LR flame resistance standards, this terminal block guarantees high safety and compliance levels for industrial and commercial usage. Its shrouded and polarised moulding design prevents incorrect mating and enhances wiring accuracy.

The RS PRO 897-1183 terminal block is manufactured in China and is ideal for electrical engineers, PCB designers, and manufacturing engineers requiring reliable and compliant PCB connector components.

Constructed with polyamide housing for flame resistance. Shrouded design enhances electrical safety. Supports up to 15A current and 250V voltage. Right angle, through hole mounting type. Tin plating ensures corrosion resistance for contacts.

Rated for operation from -40°C to 105°C. Standards compliant with UL94-V0 and LR. Explore the Electronics & Electricals category at EnvMart for more high-quality Pluggable Terminal Blocks and related components.
