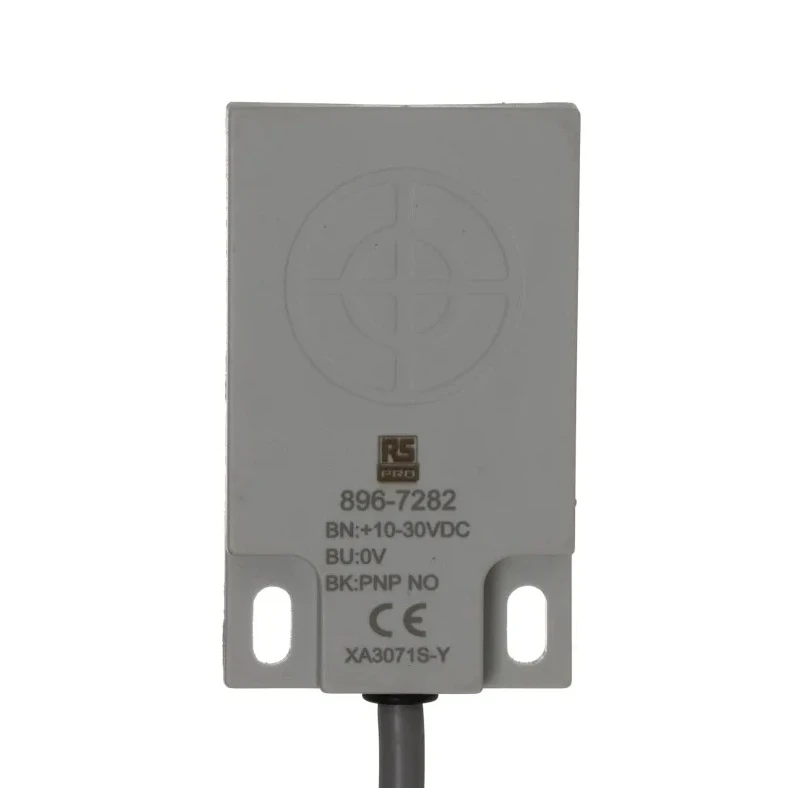

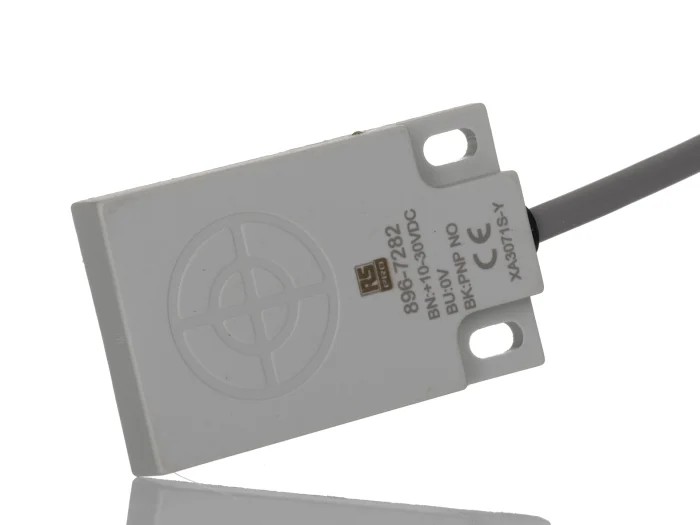

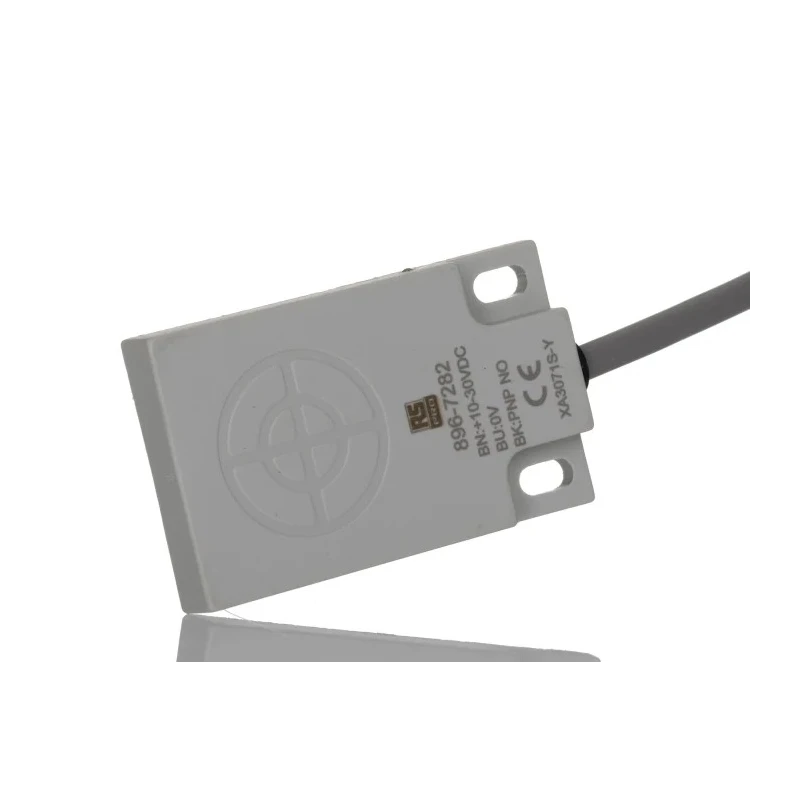

RS PRO Capacitive Proximity Sensor Block Style 8 mm Detection Range PNP Output 200mA 30V AC/DC 50x30x7 mm 896-7282

RS PRO 896-7282 capacitive proximity sensor is a block-style sensor designed for detection of both metallic and non-metallic objects without any physical contact. This sensor utilizes capacitive sensing technology, leveraging an electrical field to detect materials with a higher dielectric constant than air.

The sensor features a durable polybutylene terephthalate (PBT) housing, providing excellent resistance to chemicals and heat, making it ideal for harsh industrial conditions. With an IP67 ingress protection rating, it is dust-tight and capable of withstanding temporary immersion in water, ensuring longevity and reliability in diverse environments.

This device supports a maximum supply voltage of 30 V AC/DC and provides PNP output with a switching current capacity of 200 mA. It operates at a maximum switching frequency of 30 Hz, suitable for fast industrial automation tasks. Reverse polarity protection and short circuit overload protection are integrated to protect connected equipment against wiring errors and electrical faults.

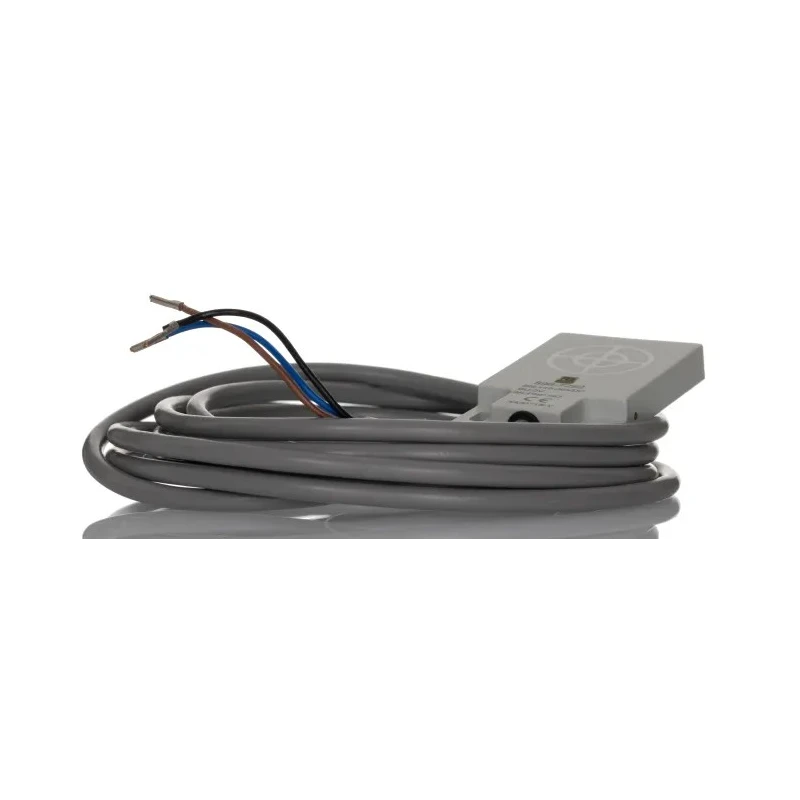

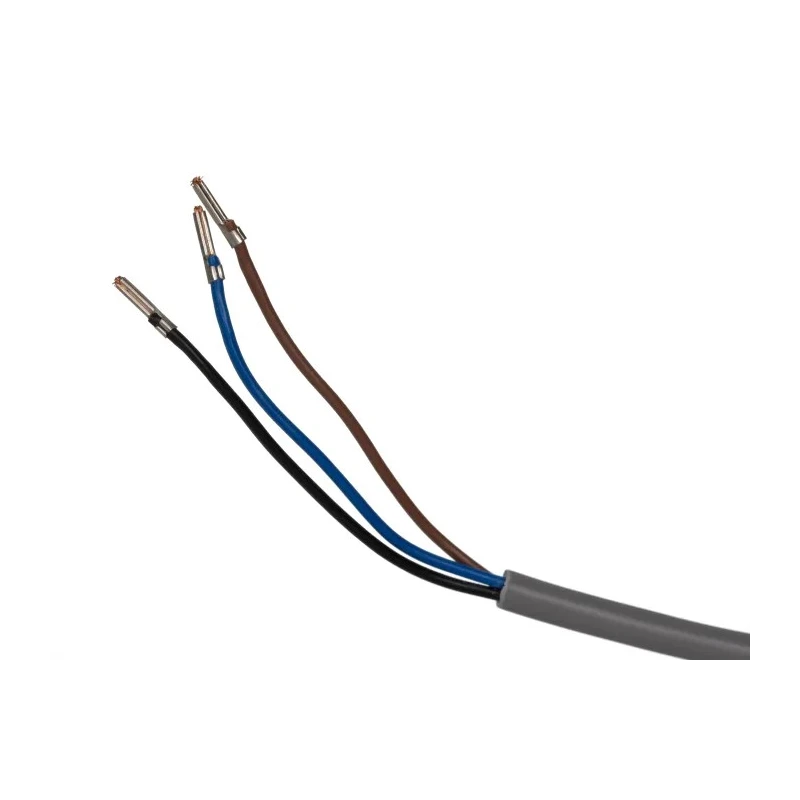

The sensor's dimensions are 50 mm in length, 30 mm in width, and 7 mm in depth with a maximum detection range of 8 mm. It is engineered for non-flush mounting and comes with a pre-cabled terminal type to facilitate straightforward installation and integration.

Designed to detect both metallic and non-metallic materials, this sensor is widely used across industrial automation, manufacturing processes, electrical control systems, and material handling operations. The robust construction and reliable performance make it suitable for laboratory, HVAC, water treatment, and commercial applications where precise object detection is vital.

Compact block body measuring 50 x 30 x 7 mm for versatile mounting. Operates with supply voltage up to 30 V AC/DC ensuring broad compatibility. Robust polybutylene terephthalate (PBT) housing for chemical and heat resistance.

IP67 rated for dust-tight protection and temporary water immersion. Supports switching current up to 200 mA with a frequency of 30 Hz for fast response. Includes reverse polarity and short circuit overload protection to safeguard equipment.

Non-flush mount type with pre-cabled terminal for easy installation. Suitable for demanding industrial environments requiring reliable presence detection. Explore additional Capacitive Proximity Sensors and automation control gear at EnvMart to find the ideal solution for your industrial or laboratory needs.
