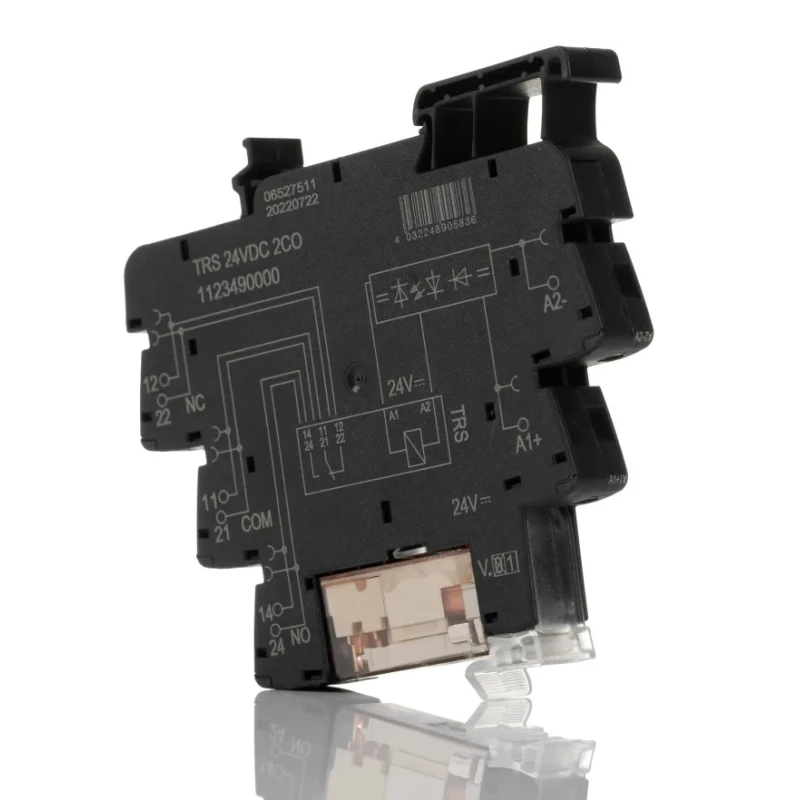

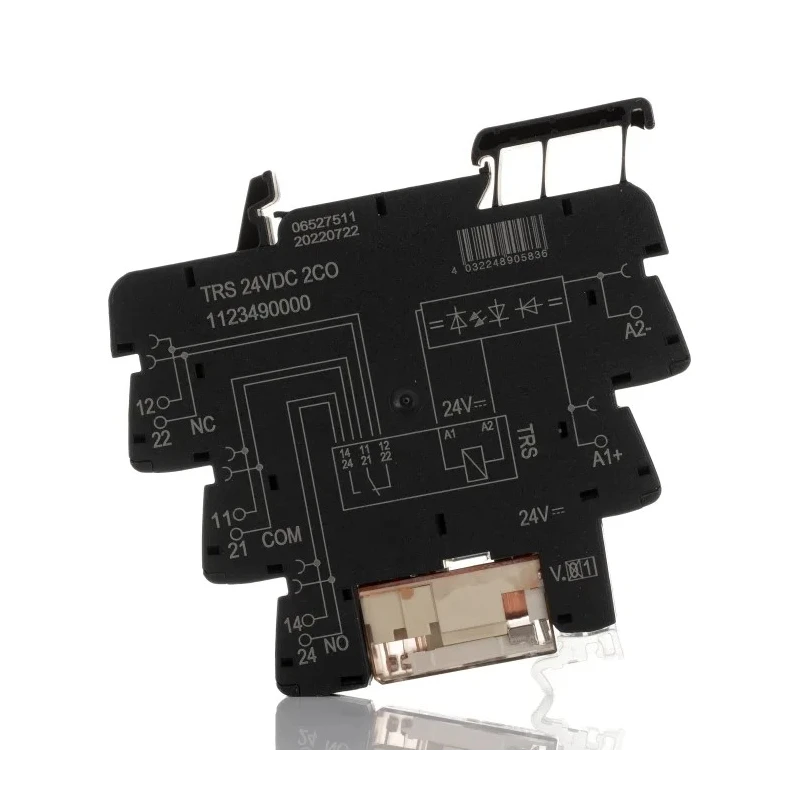

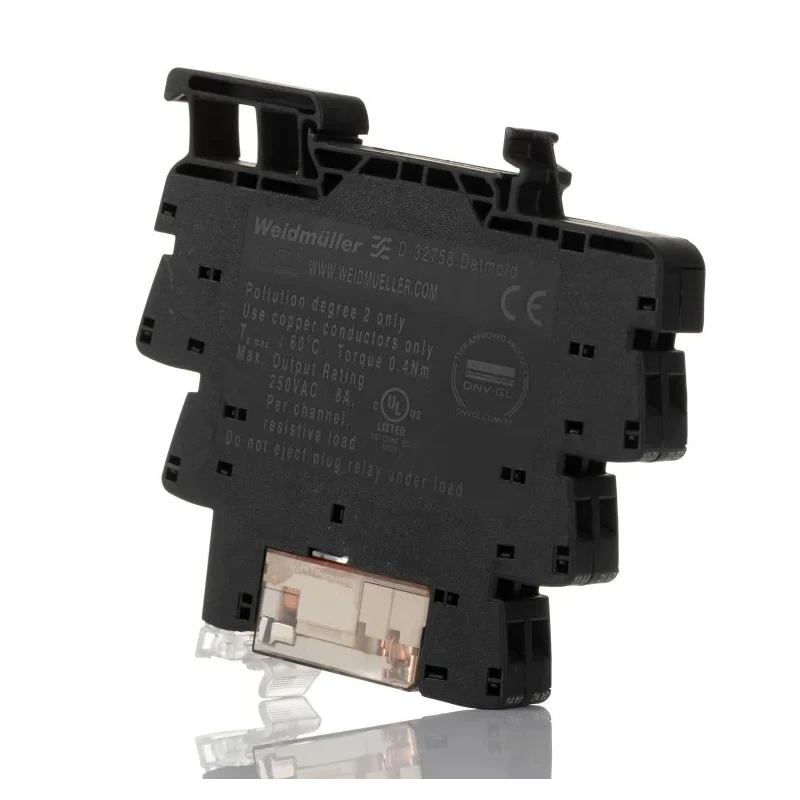

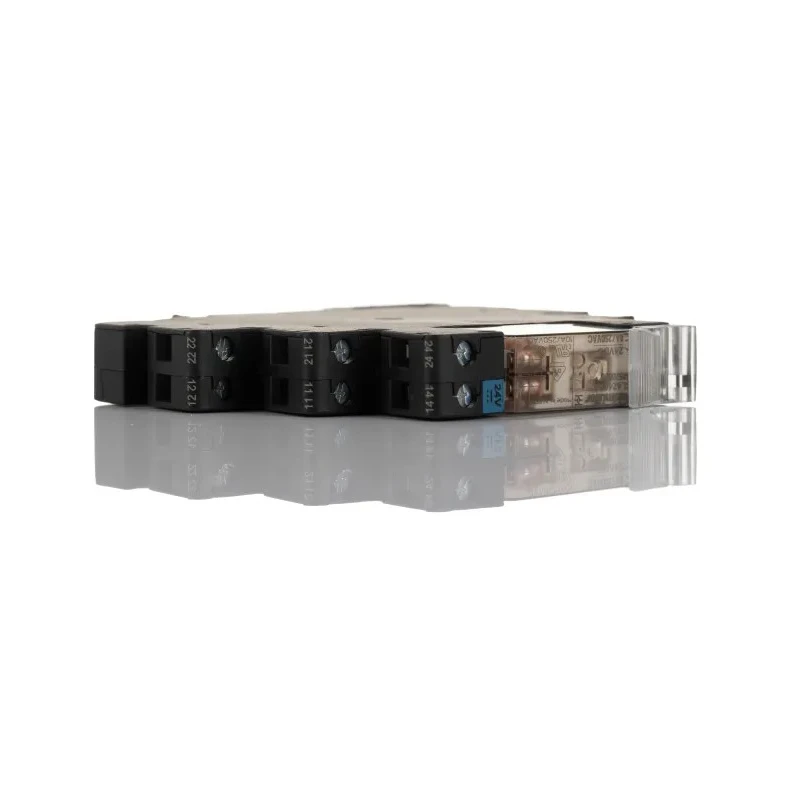

Weidmüller TRS Series Interface Relay DIN Rail Mount 24V Coil DPDT 20mA 1123490000
Specifications
| Country of Origin | China |
|---|---|
| Brand | Weidmüller |
| Height | 88mm |
| Length | 90mm |
| Width | 12.8mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | TRS |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Screw |
| Coil Voltage | 24V |
| Coil Current | 20mA |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
Key Features
- Compact size with dimensions 90mm length x 12.8mm width x 88mm height for efficient panel installation.
- Equipped with screw terminals ensuring secure and reliable electrical connections.
- Low coil current at 20mA enables energy-efficient operation.
- Contact current rated at 8A with silver alloy contacts to provide high conductivity and resistance to corrosion.
- Wide operating temperature range from -40°C to 60°C, suitable for harsh industrial environments.
- IP20 rated for touch protection and resistance against penetration by objects larger than 12mm.
- Mechanical durability rated for 30 million switching cycles, ensuring long-term reliability.
- Complies with EN 50178, EN 55011, EN 61000-6-1, EN 61000-6-2, and EN 61000-6-4 standards for safety and electromagnetic compatibility.
Product Description
Weidmüller 1123490000 Interface Relay is a DIN Rail-mount electromechanical relay designed for industrial automation, control, and signal conditioning applications. Featuring a 24V coil voltage with a low coil current of 20mA, this relay offers energy-efficient operation while providing reliable switching through its double-pole double-throw (DPDT) contact configuration.
The relay's compact dimensions of 90mm length, 12.8mm width, and 88mm height allow for easy integration into control panels and confined spaces. Its screw terminal connections ensure robust and secure wiring for long-term use.
Utilizing silver alloy contact material, the relay provides excellent conductivity and corrosion resistance, supporting a switching current of up to 8A and voltage ratings of 250V AC and DC. The unit's IP20 rating offers touch protection and prevents intrusion by larger foreign objects, enhancing safety in demanding industrial settings.
Built to withstand tough conditions, the relay operates reliably across a wide temperature range from -40°C to 60°C and offers a mechanical service life rated at 30 million cycles, making it a durable choice for continuous operation.
Compliance with multiple international standards - including EN 50178, EN 55011, and EN 61000 series for electromagnetic compatibility - ensures the relay's suitability for rigorous industry requirements.
The relay also features a green LED indicator for quick visual confirmation of operation status, aiding in diagnostics and maintenance. Applications range from transportation systems and telecommunications to security devices and broader industrial automation, reflecting its versatile and dependable nature.
Choose the Weidmüller TRS Series Interface Relay 1123490000 for robust and reliable interface switching solutions in your industrial control systems. Explore additional Interface Relay options at EnvMart for comprehensive electrical and automation component solutions.
Compact DIN Rail mounting with screw terminal connections provide ease of installation. Low coil current of 20mA enables energy-efficient operation. Silver alloy contacts rated for 8A switching ensure durability and conductivity.
Wide operating temperature range suitable for harsh environments. IP20 protection rating for user safety and equipment protection. Mechanical service life of 30 million cycles supports long-term reliability. Green LED indicator simplifies status monitoring.
Complies with multiple international electromagnetic compatibility and safety standards. Ideal for use in transportation, telecommunications, security, and industrial automation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has compact dimensions of 90mm in length, 12.8mm in width, and 88mm in height, making it suitable for efficient panel installation.
It operates with a coil voltage of 24V and has a low coil current of 20mA, promoting energy-efficient operation.
This model features a double-pole double-throw (DPDT) contact configuration, allowing for versatile switching applications.
The relay is rated for a maximum switching current of 8A, ensuring reliable performance in various applications.
It is equipped with screw terminals, which provide secure and reliable electrical connections for long-term use.
The relay operates reliably across a wide temperature range from -40°C to 60°C, making it suitable for harsh industrial environments.
The contacts are made from silver alloy, which offers high conductivity and resistance to corrosion.
It has a mechanical durability rating of 30 million switching cycles, ensuring long-term reliability in continuous operation.
The relay complies with multiple standards including EN 50178, EN 55011, and the EN 61000 series for electromagnetic compatibility and safety.
It has an IP20 rating, providing touch protection and preventing the intrusion of objects larger than 12mm.
Yes, it features a green LED indicator that provides a quick visual confirmation of the operation status, aiding in diagnostics and maintenance.
This relay is suitable for applications in transportation systems, telecommunications, security devices, and broader industrial automation.
