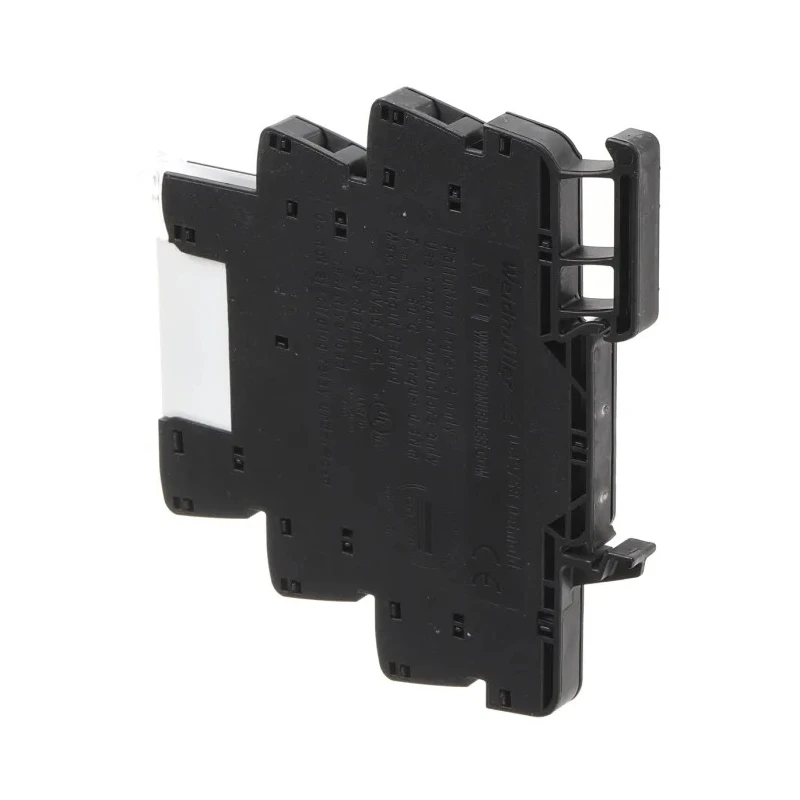

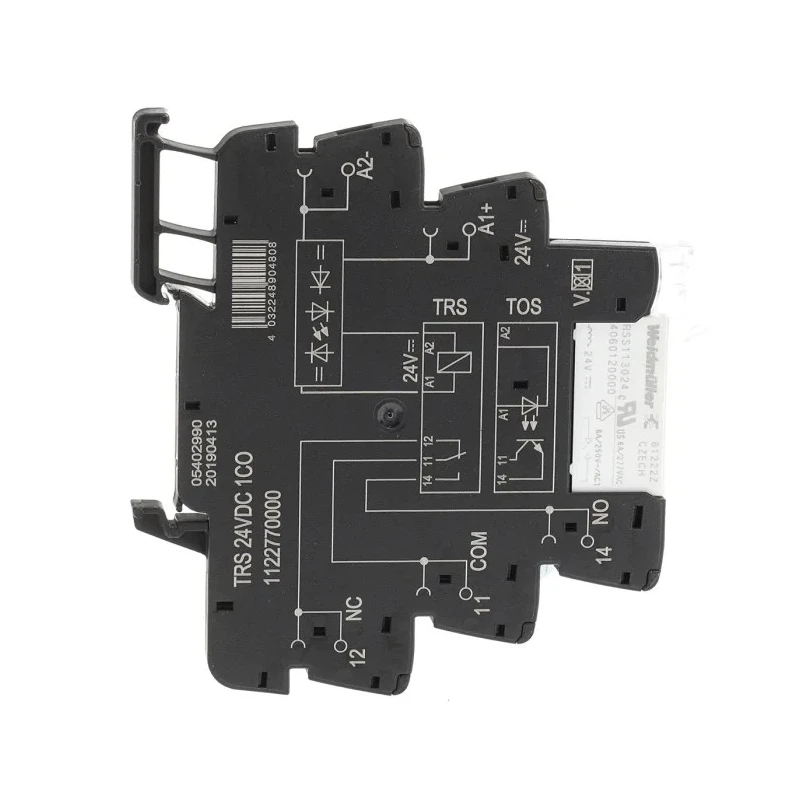

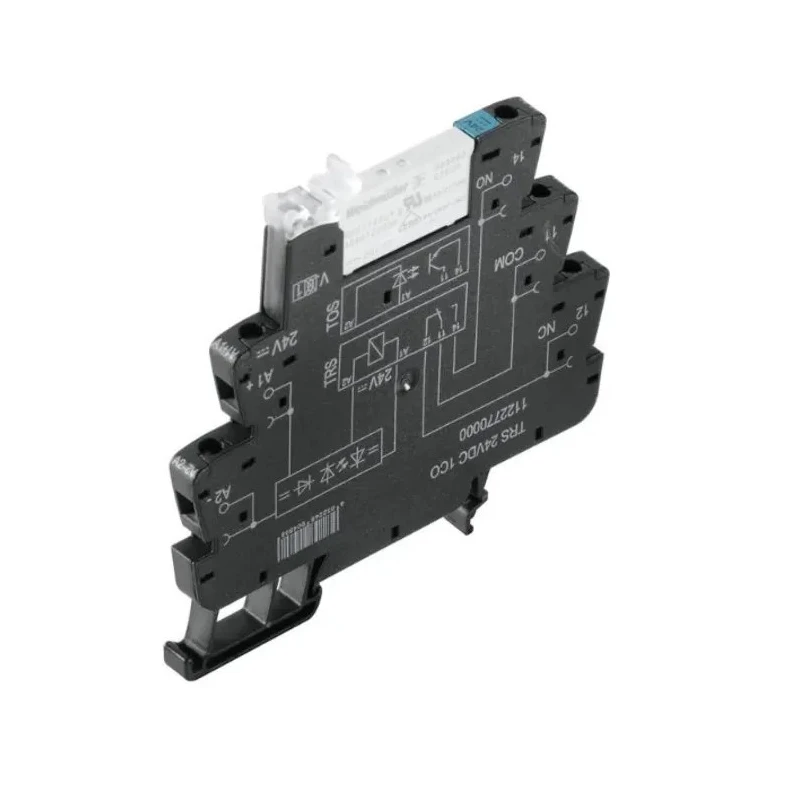

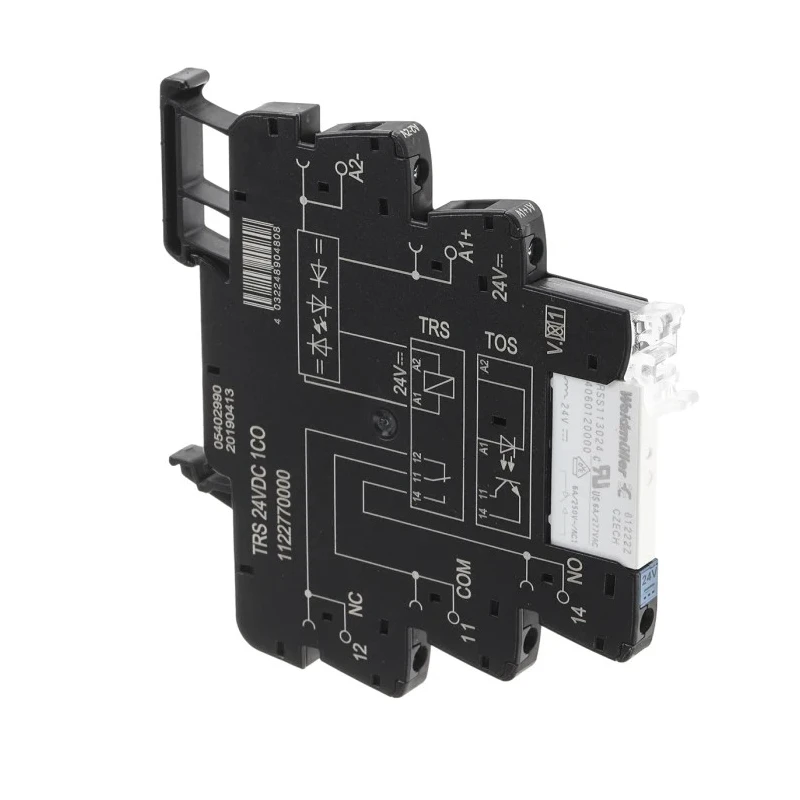

Weidmüller TRS Series Interface Relay DIN Rail Mount 24V Coil Voltage SPDT Contact Configuration 6A Switching 1122770000

Weidmüller 1122770000 TRS Series Interface Relay is a high-quality DIN Rail mounted electromechanical relay designed to provide reliable and galvanically isolated switching for automation and control systems. Operated by a 24V coil voltage, this interface relay features a SPDT contact configuration capable of switching 6 amperes continuous current and up to 250V AC or DC voltage loads.

The relay’s compact size of 90mm length, 88mm height, and 6.4mm width makes it ideal for efficient panel integration without occupying excessive space. Its silver alloy contacts ensure robust electrical conductivity and resistance against corrosion, ensuring long operational life in industrial settings.

Designed for demanding environments, this interface relay supports an extended temperature range of -40°C to +60°C and complies with several stringent standards such as EN 61000-6-4 and EN 61000-6-2, providing electromagnetic compatibility in industrial applications. The IP20 protection rating ensures finger-safe operation and protection against foreign objects larger than 12mm.

With a low coil current consumption of 10mA and power rating of 240mW, the relay is energy-efficient while providing dependable switching. The screw terminal type ensures easy and secure wiring installation in control cabinets and automation panels.

Applications include industrial automation, control networks, medical equipment, and radio-electronic systems where reliable signal interfacing is critical. The galvanic isolation inside minimizes electrical interference between different system components, enhancing signal integrity and system performance.

24V coil voltage supports common control voltages. SPDT contacts allow flexible switching configurations. 6A switching current enables control of moderate loads. Compact DIN Rail mounting saves space in control panels. Silver alloy contact material ensures durability and conductivity.

Wide operating temperature range for harsh industrial environments. Low coil current consumption enhances energy efficiency. Meets multiple international electromagnetic compatibility standards. IP20 finger-safe protection rating.

Lightweight design with 33 grams mass.

For modern industrial automation and control, the Weidmüller 1122770000 Interface Relay provides accurate, reliable, and energy-efficient switching solutions. Explore the full range of Weidmüller relays and interface modules at EnvMart to find matching components for your system setup.
