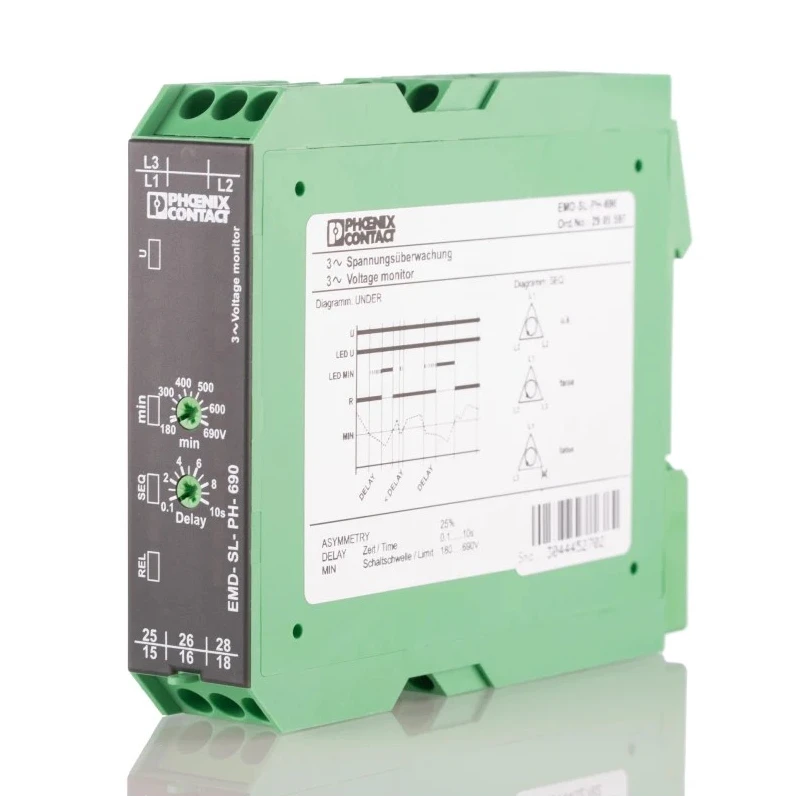

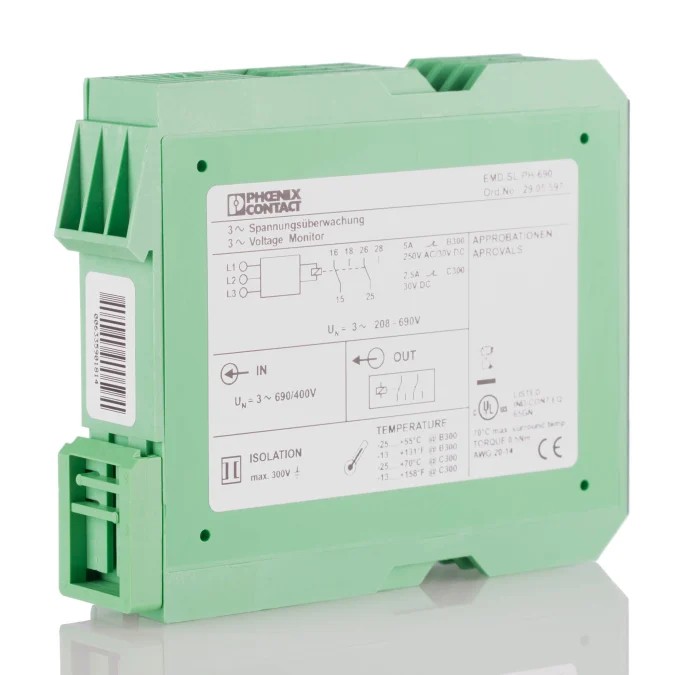

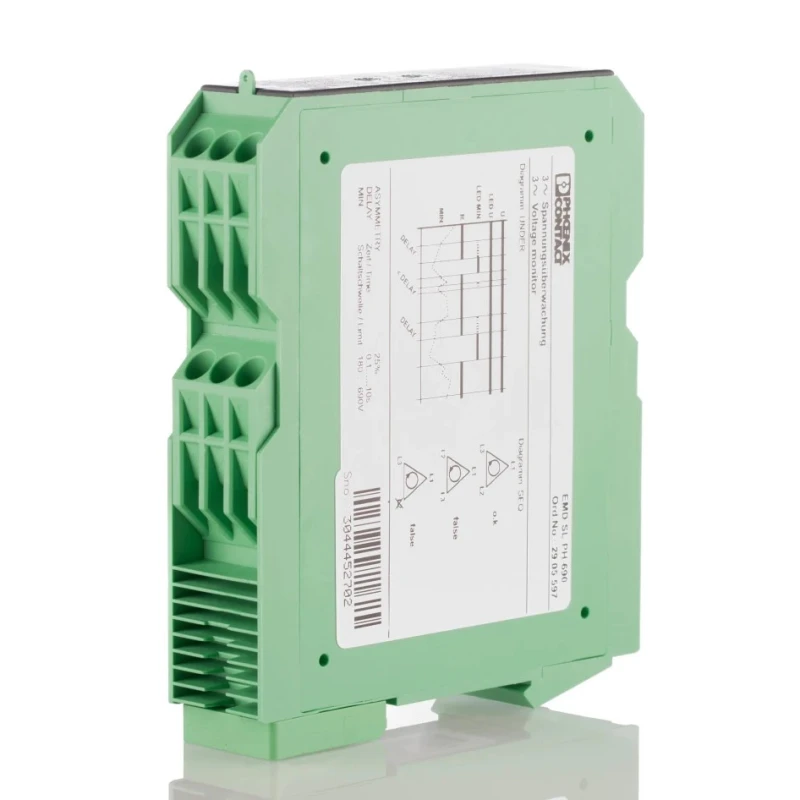

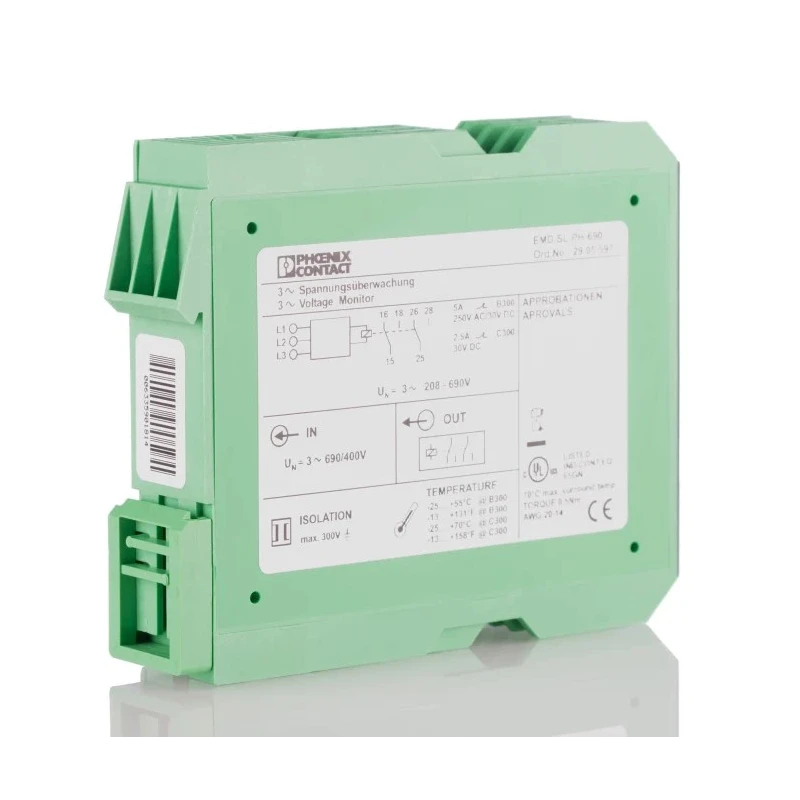

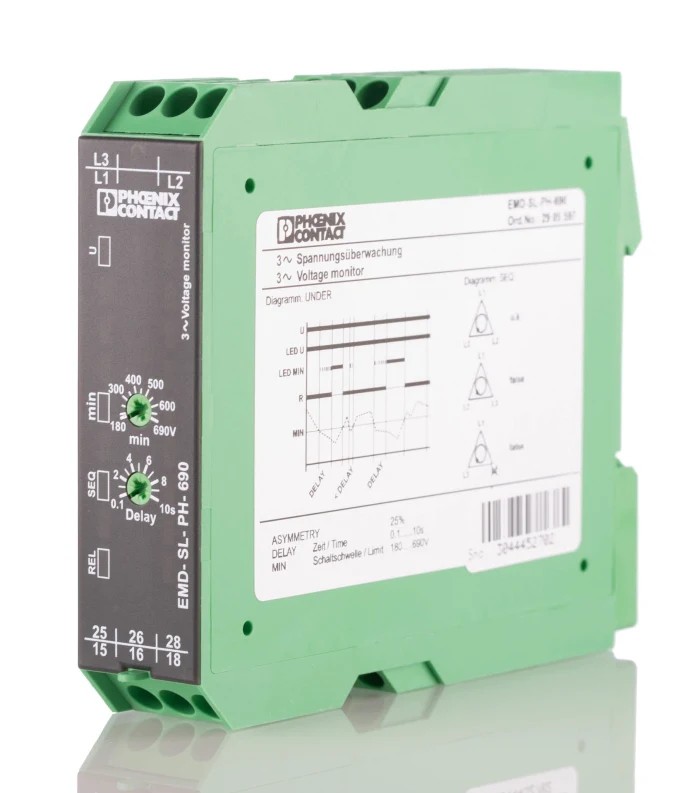

Phoenix Contact 3-Phase DPDT Monitoring Relay, DIN Rail Mount, 174-794 V AC, 30 V DC, Model 2905597
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | Phoenix Contact |
| Height | 90mm |
| Length | 113mm |
| Model | 2905597 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | EMD-SL-PH-690 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | +70°C |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Standards/Approvals | RoHS, UL, cUL, cULus |
| Switching Voltage | 400V ac |
| Contact Current | 2.5A |
| Supply DC Voltage | 30 V dc |
| Supply AC Voltage | 174, 794V ac |
Key Features
- Built-in colour-coded LEDs for monitoring undervoltage, phase failure, and phase asymmetry.
- DIN rail mountable for flexible and compact installation.
- Fast-blow 5 A fuse protects against dangerous power surges.
- Adjustable response delay time from 0.1 to 10 seconds.
- Broad input voltage range of 177 to 794 V AC supports diverse electrical setups.
- Compact dimensions of 90 mm height, 22.5 mm width, and 113 mm depth.
- Suitable for industrial, electrical automation, and control systems.
- Complies with RoHS, UL, cUL, and cULus standards ensuring safety and reliability.
Product Description
Phoenix Contact 2905597 is a 3-phase, double-pole double-throw (DPDT) monitoring relay designed for DIN rail mounting. It operates with a supply voltage range of 174 to 794 V AC and 30 V DC, making it ideal for monitoring voltage irregularities in industrial and electrical automation environments. The relay utilizes colour-coded LEDs to provide clear visual indicators of undervoltage, phase failure, or phase asymmetry, enhancing system safety and reliability.
This monitoring relay includes a fast-blow 5 A fuse integrated into the terminal block, ensuring immediate circuit interruption during excessive current conditions to protect connected equipment and personnel. The response delay time is adjustable between 0.1 and 10 seconds, allowing users to tailor the relay's sensitivity according to specific application needs.
Its compact size, measuring 90 mm in height, 22.5 mm in width, and 113 mm in length, allows for efficient use of space on DIN rails in control panels, enabling neat and organized installations. The relay is suitable for demanding industrial applications such as electrical and automation controls, manufacturing setups, and other environments requiring precise voltage monitoring.
Compliant with RoHS, UL, cUL, and cULus standards, the Phoenix Contact 2905597 offers assured quality and safety. Originating from Austria, it belongs to the EMD-SL-PH-690 series, known for robust performance and reliability in voltage monitoring tasks.
Built-in colour-coded LEDs for monitoring undervoltage, phase failure, and phase asymmetry. DIN rail mountable for flexible and compact installation. Fast-blow 5 A fuse protects against dangerous power surges. Adjustable response delay time from 0.1 to 10 seconds.
Broad input voltage range of 177 to 794 V AC supports diverse electrical setups. Compact dimensions of 90 mm height, 22.5 mm width, and 113 mm depth. Suitable for industrial, electrical automation, and control systems. Complies with RoHS, UL, cUL, and cULus standards ensuring safety and reliability.
Explore the full range of Monitoring Relays at EnvMart for reliable electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The monitoring relay operates with a supply voltage range of 174 to 794 V AC and 30 V DC.
This model features a double-pole double-throw (DPDT) contact configuration.
The relay has compact dimensions of 90 mm in height, 22.5 mm in width, and 113 mm in length.
The maximum operating temperature for this monitoring relay is 70°C.
It is designed for DIN rail mounting, allowing for flexible and compact installation.
The relay complies with RoHS, UL, cUL, and cULus standards, ensuring safety and reliability.
The response delay time can be adjusted from 0.1 to 10 seconds.
It includes a fast-blow 5 A fuse that protects against dangerous power surges.
The contact current rating for this relay is 2.5 A.
This monitoring relay operates with a 3-phase electrical system.
The minimum operating temperature for this model is +70°C.
It belongs to the EMD-SL-PH-690 series, known for its performance in voltage monitoring tasks.
