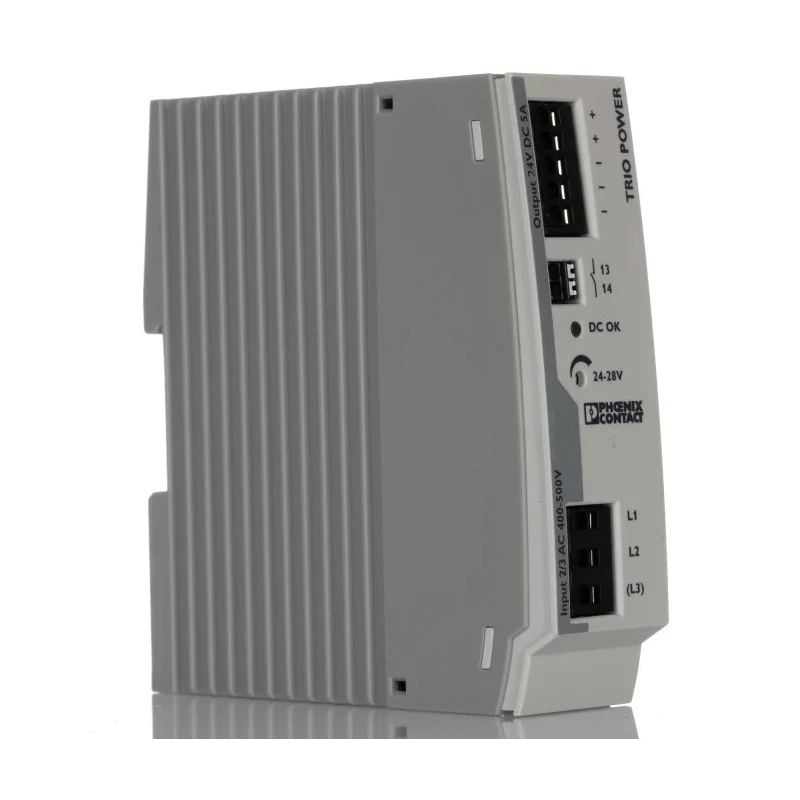

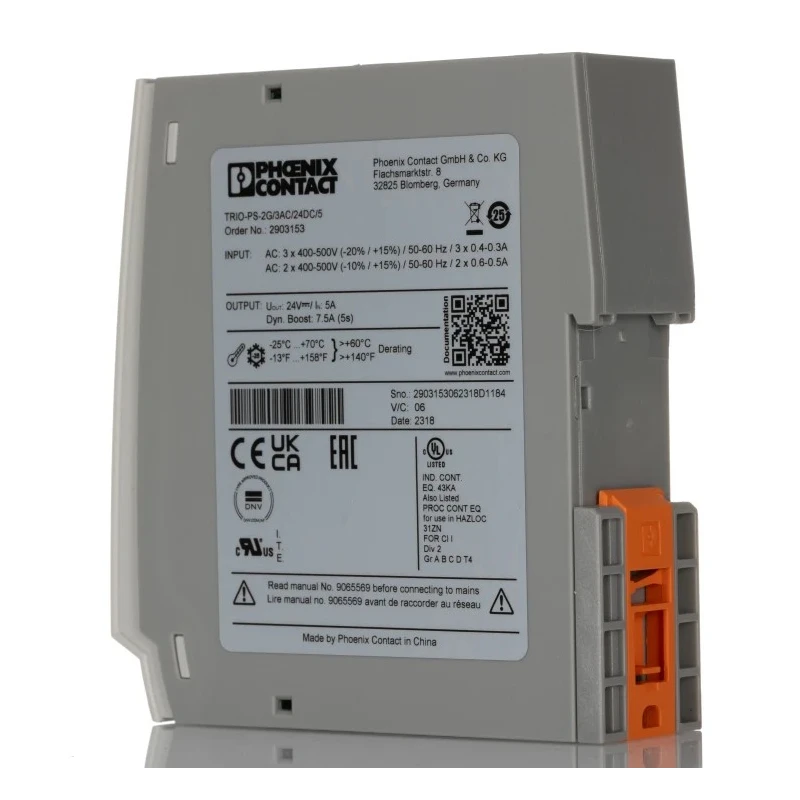

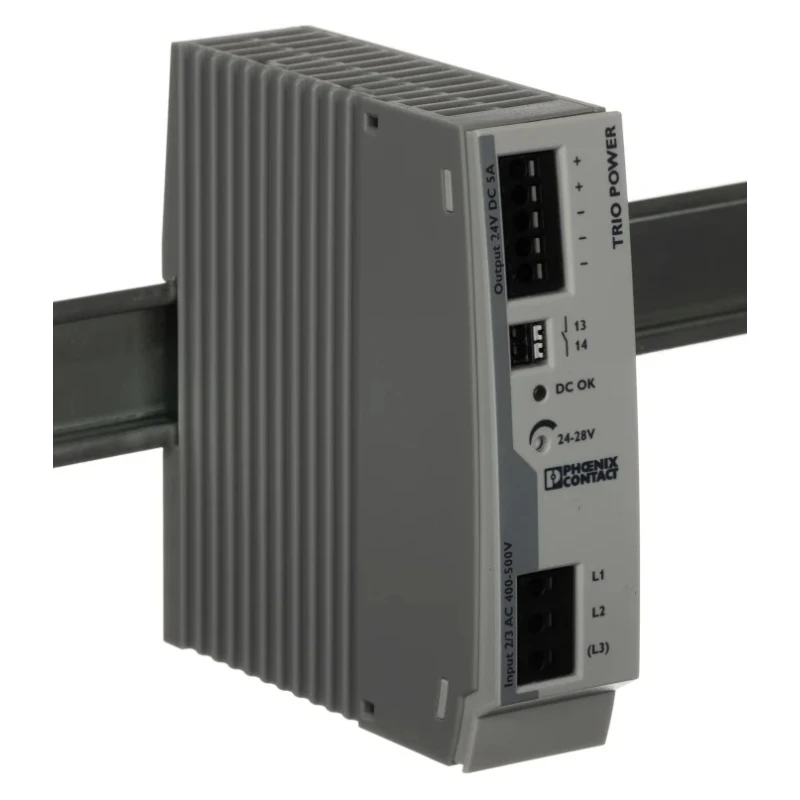

Phoenix Contact TRIO POWER Switched Mode DIN Rail Power Supply 575V AC Input 28V DC, 5A Output 120W 2903153

Phoenix Contact 2903153 TRIO POWER Switched Mode DIN Rail Power Supply is engineered for demanding industrial and machine building applications. This 120W power supply converts three-phase AC input voltage between 320V and 575V AC to a stable 28V DC output delivering up to 5A current. Its robust electrical and mechanical design ensures reliable power delivery even under harsh ambient conditions, offering high system availability.

The compact footprint of 35mm width, 130mm height, and 115mm depth allows for efficient use of space on DIN rails in control cabinets. It features an integrated 3.15A fuse that provides essential short circuit protection, safeguarding connected devices and operators.

Rated with an IP20 ingress protection classification, this unit offers dust protection and prevents access to hazardous parts. The UL94V-0 flame retardant rating indicates the power supply will self-extinguish fire within 10 seconds, enhancing safety in hazardous environments such as factories and assembly lines.

Operating reliably between -25°C and 70°C, it accommodates a wide range of industrial environments. Active function monitoring via a DC-OK LED and a floating signal contact ensures timely fault detection and system status communication.

This power supply unit is ideal for powering sensors, solenoid valves, relays, and other automation devices. The high efficiency rating of 91% maximizes energy savings while maintaining performance. Despite its capabilities, the unit is lightweight at approximately 0.4 kg, making installation and handling straightforward.

Overall, the Phoenix Contact TRIO POWER 2903153 power supply supports dynamic power boost functionality, allowing up to 150% nominal current for five seconds to start difficult loads, meeting high industrial demands.

This DIN Rail Power Supply conforms to multiple international standards including EN 50178, EN 60204-1, IEC 60950-1, and UL 60950-1, assuring compliance and safety for diverse industrial applications.

Explore the comprehensive range of power supplies and components from Phoenix Contact available at EnvMart, your trusted source for industrial electrical equipment. High efficiency of 91 percent ensures reliable power usage.

Supports 3-phase AC input voltage ranging from 320V to 575V AC. Provides a steady 28V DC output at 5A current for connected devices. Compact design measuring 35mm width, 130mm height, and 115mm depth fits DIN rail installations with limited space.

Includes integrated 3.15A fuse for short circuit protection enhancing equipment safety. IP20 rated for dust protection and safe operation in industrial environments. Operating temperature range from -25°C to 70°C suitable for harsh ambient conditions.

Designed with UL94V-0 fire rating to prevent flame spread in hazardous areas. Features active function monitoring with DC-OK LED and floating signal contact for system status reporting. Lightweight construction at approximately 0.4 kg enables easy handling and installation.
