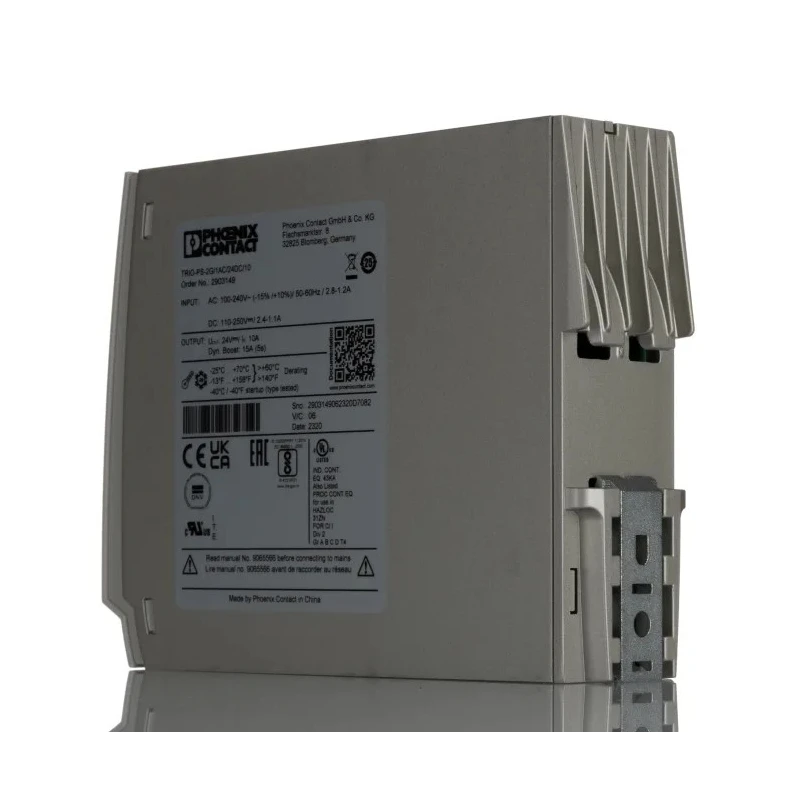

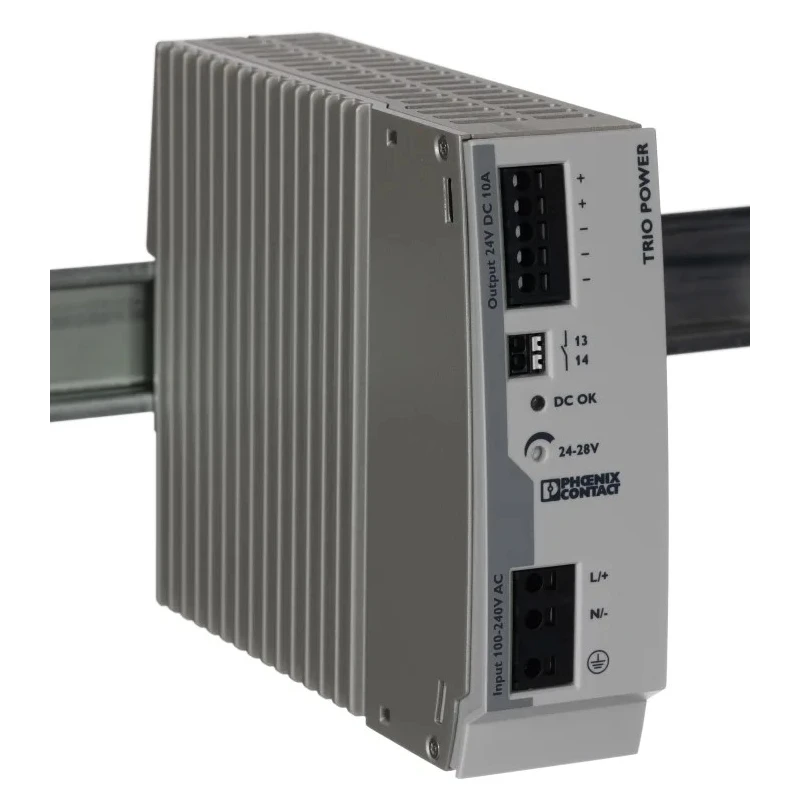

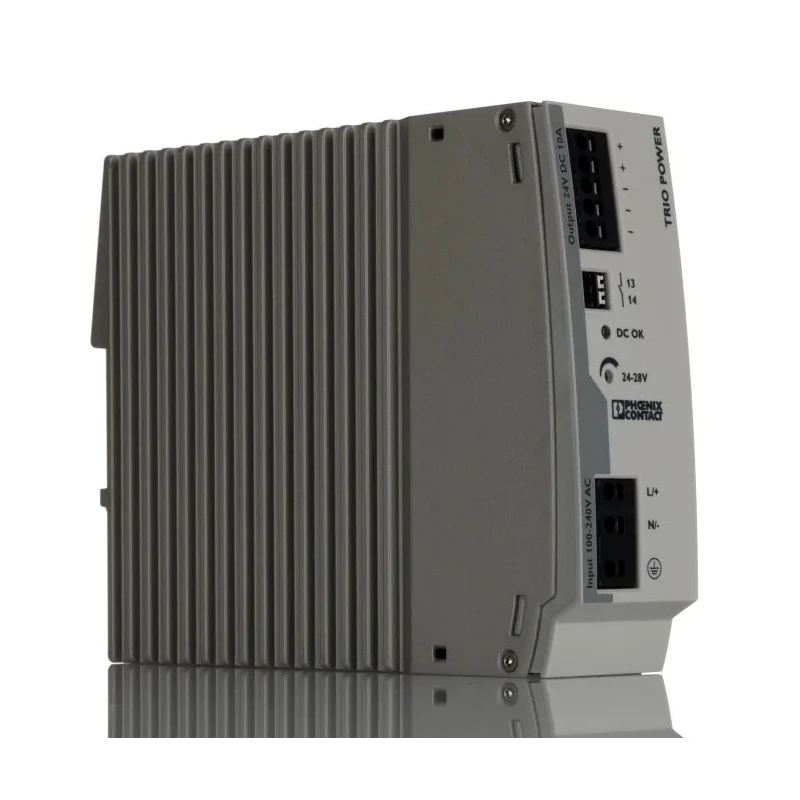

Phoenix Contact TRIO POWER Switched Mode DIN Rail Power Supply 264V AC Input 28V DC Output 10A 240W 2903149
Specifications
| Country of Origin | China |
|---|---|
| Brand | Phoenix Contact |
| Power | 240W |
| Efficiency | 91% |
| Height | 130mm |
| Model | 2903149 |
| Depth | 160mm |
| IP Rating | IP20 |
| Width | 42mm |
| Series | TRIO POWER |
| Output Current | 10A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 2 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 28V dc |
| Minimum Input Voltage | 85V ac |
| PULS Redundancy Module, CP SeriesBrand | PULS |
Key Features
- Supports single-phase electrical input for versatile installation.
- High efficiency of 91% reduces energy loss during operation.
- Compact design with dimensions 130mm (H) x 42mm (W) x 160mm (D) saves space in control panels.
- Robust thermoplastic housing ensures durability and impact resistance.
- Dynamic power boost capability allows 150% of nominal current for short startups.
- Integrated 6.3A fuse protects against short circuits for enhanced safety.
- Suitable for powering sensors, solenoid valves, and relays in harsh industrial environments.
- IP20 rated for protection against dust and solid objects larger than 12mm.
Product Description
Phoenix Contact 2903149 TRIO POWER switched mode DIN rail power supply delivers 240W power at a 28V DC output with a current rating of 10A from an AC input voltage range of 85V to 264V. This power supply is designed specifically for industrial and machine building applications where reliability and durability are critical.
The unit features a highly robust thermoplastic housing that ensures impact resistance and is rated IP20, providing protection against solid objects larger than 12 mm. It includes an integrated fuse protection at 6.3A for electrical safety in the event of short circuits and is also compatible with circuit breakers for additional system protection.
The power supply supports both series and parallel connection options, providing flexible design configurations. It features a dynamic power boost, delivering 150% nominal current for up to five seconds, which is useful for starting difficult loads with high initial current requirements.
The compact dimensions (130mm height, 42mm width, and 160mm depth) optimize installation space within control cabinets or electrical enclosures. Operating temperature ranges from -25°C to 70°C ensure dependable operation in harsh environmental conditions.
This device complies with key international standards including UL 508, IEC 60950-1 (SELV), EN 50121-4, DIN VDE 0100-410, and others. The high MTBF (mean time between failures) of over 1.8 million hours guarantees long-term reliability for industrial, manufacturing, process control, and automation systems.
Supports industrial applications requiring stable DC power from an AC source. Power supply units from the TRIO POWER series are designed for high system availability in machine building and automation. Robust mechanical and electrical construction for harsh ambient conditions.
Tool-free push-in connection simplifies installation and maintenance. Dynamic power boost improves starting of heavy or capacitive loads. Suitable for powering sensors, relays, and solenoid valves in control panels.
Choose Phoenix Contact TRIO POWER for reliable, efficient DIN rail power supply solutions tailored to demanding industrial environments. Explore our range of power supplies and accessories to meet diverse electrical requirements.
