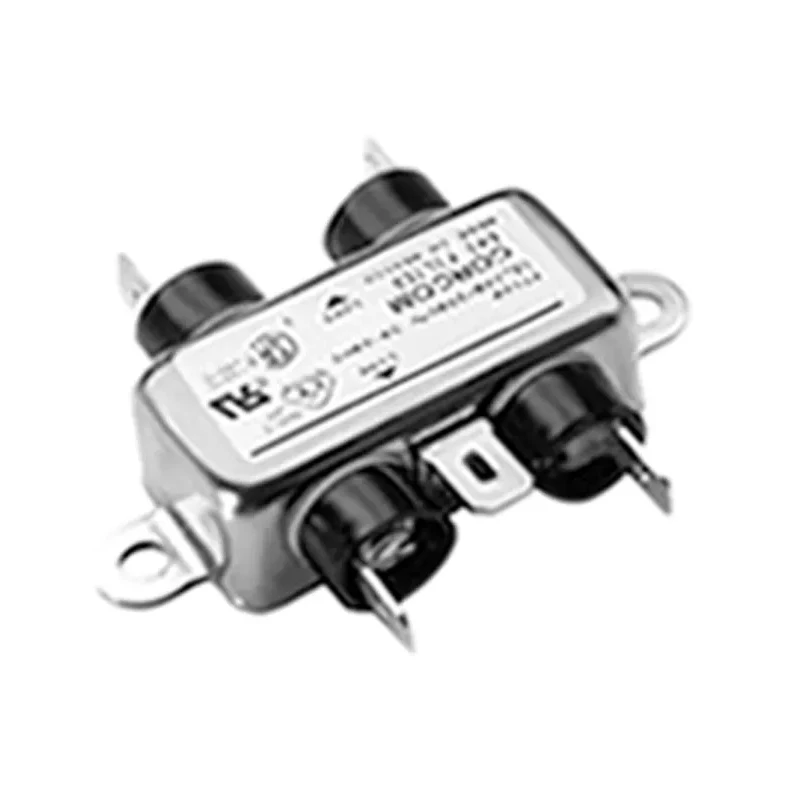

TE Connectivity Corcom B Series RFI Filter 1 A 250V AC 50Hz 60Hz Flange Mount Fast-On Termination 6609020-1

TE Connectivity 6609020-1 Corcom B Series RFI Filter is a general purpose, low current EMI/RFI Filter designed for single-phase power lines. Operating at 250V AC and supporting both 50Hz and 60Hz frequencies, it provides wide band noise suppression with low attenuation suitable for high impedance loads.

This flange-mounted filter uses fast-on terminations, enabling easy and reliable connection. The compact size (Length 57.2 mm, Height 64.3 mm, Depth 16.8 mm) suits confined installation environments commonly found in HVAC systems, battery charging stations, exercise equipment, home appliances, televisions, audio/video devices, and computing accessories.

Featuring 100 nF capacitance and 1.86 mH inductance, the filter minimizes electromagnetic interference and radio frequency interference, enhancing equipment safety and performance. Its low leakage current (700 μA) makes it compliant with standards required in portable and non-patient medical equipment. Operating temperature ranges from -10°C to +40°C, ensuring stable filtering under typical industrial and commercial conditions.

The Corcom B Series filters are internationally recognized with UL1283 approvals, CSA, and VDE certifications, confirming adherence to stringent quality and safety requirements. Designed for 1 A maximum current at 250V AC operation.

Supports operating frequencies of 50 Hz and 60 Hz for versatile use. Mount type is flange for secure installation. Termination style features fast-on connectors for quick wiring. Compact dimensions make it suitable for space-constrained applications.

Low leakage current of 700 μA ensures safety compliance in medical and portable equipment. Includes 100 nF capacitance and 1.86 mH inductance for effective noise filtering. Meets UL1283 safety standards, approved for global use.

Suitable for HVAC, battery chargers, home appliances, audio/video, and computing peripherals. Operating temperature ranges from -10°C to +40°C for reliable performance.

This product is suitable for industrial, commercial, HVAC, and electronic manufacturing applications where electromagnetic interference reduction is critical. Its reliable performance helps maintain compliance with electromagnetic compatibility regulations, protecting electronic devices and improving overall system stability.
