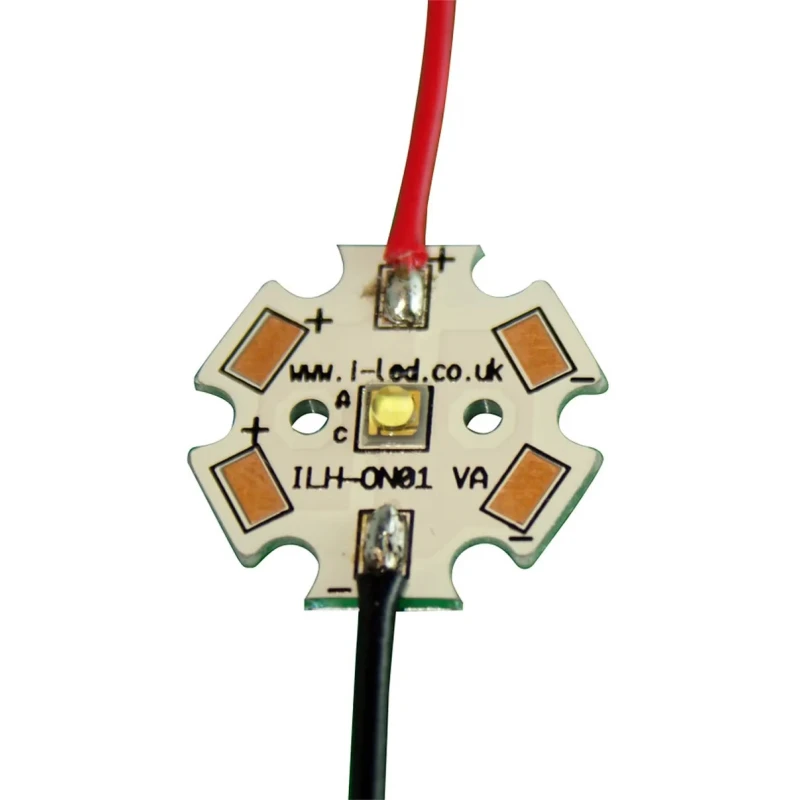

Intelligent LED Solutions OSLON 80 1+ PowerStar LED Array 1 LEDs Red, Constant Voltage, 1A ILH-ON01-FRED-SC211-WIR200.

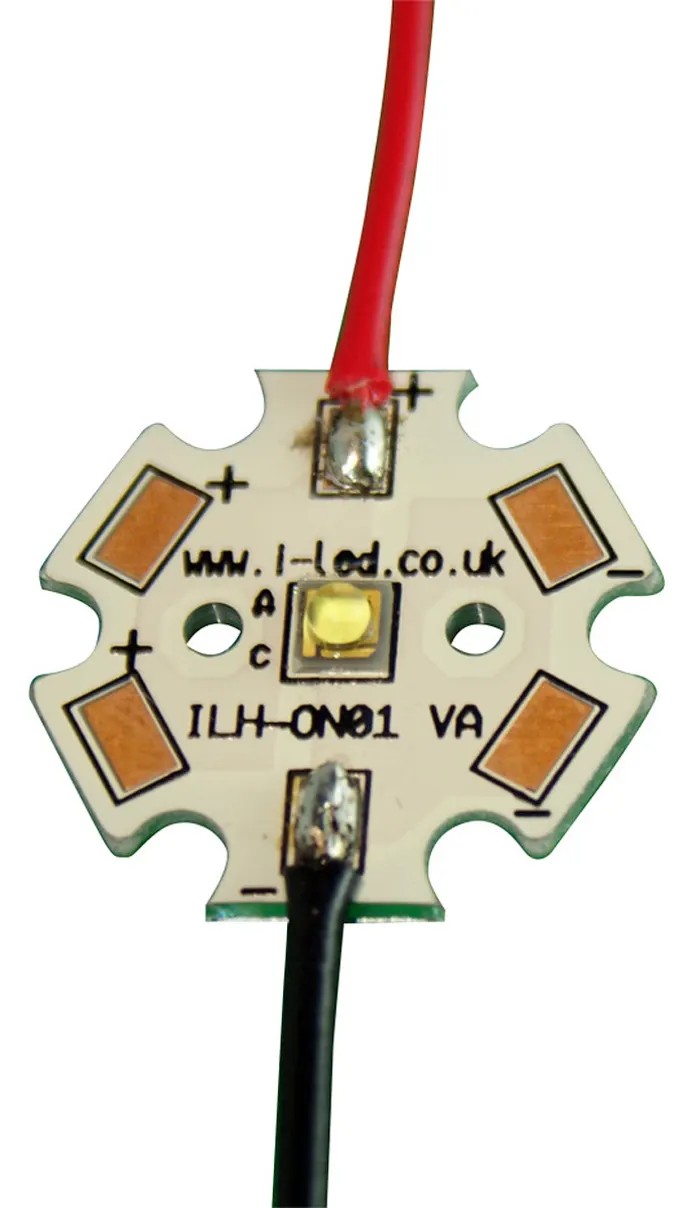

Intelligent LED Solutions ILH-ON01-FRED-SC211-WIR200. OSLON 80 1+ PowerStar LED Array is a high-performance red LED module featuring one Osram Oslon SSL 80 LED with an integrated 80° silicone resin lens. It is prewired with 200mm flying lead wires, ensuring convenient integration into various lighting systems.

This LED array utilizes Osram's latest power chip technology, delivering efficient light output at currents up to 1000mA. Its construction on an aluminum substrate provides excellent thermal management with a low thermal resistance of 7 K/W, promoting cool operation and long service life. The size of the PowerStar LED array is a compact 20mm by 20mm with a height of 3.85mm, suitable for tight installation spaces.

The product includes mounting holes designed for M3 screws, facilitating secure and reliable installation. It produces a typical luminous flux of 201mW with a constant voltage output type and onboard driver, simplifying power supply considerations.

Applications for this LED array cover general lighting, decorative accents, task illumination, retail displays, downlighting, spotlights, and entertainment lighting setups where high efficiency, precise red illumination, and reliability are essential.

Secondary optics are included to enhance beam shaping and improve lighting effects. The array complies with RoHS environmental standards and is manufactured in the United Kingdom, assuring quality and regulatory compliance.

PowerStar LED arrays are designed to be linked to form longer chains for extended lighting requirements but must be mounted on suitable heat sinks to prevent overheating and damage.

The product features 1 high-power red LED for focused illumination. Typical luminous flux output is 201mW, ideal for precise lighting applications. Pre-wired with 200mm flying lead wires for ease of installation. Compact dimensions of 20mm x 20mm x 3.85mm fit constrained spaces.

Includes mounting holes compatible with M3 screws for secure attachment. Low thermal resistance of 7 K/W ensures stable temperature management. Designed for general, decorative, task, retail, and entertainment lighting. Secondary optics included for enhanced beam control and light shaping.

Complies with RoHS standards, manufactured in the United Kingdom. Operating current range from 100mA up to 1A supports variable brightness.
