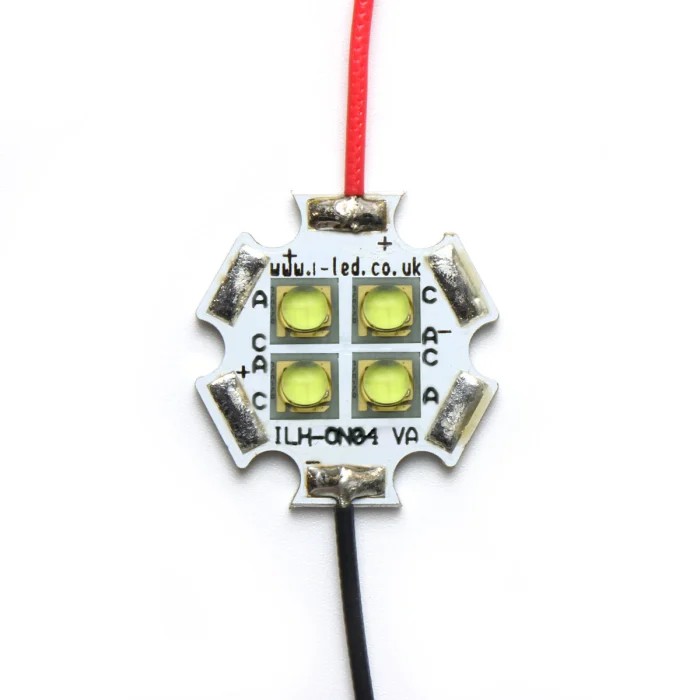

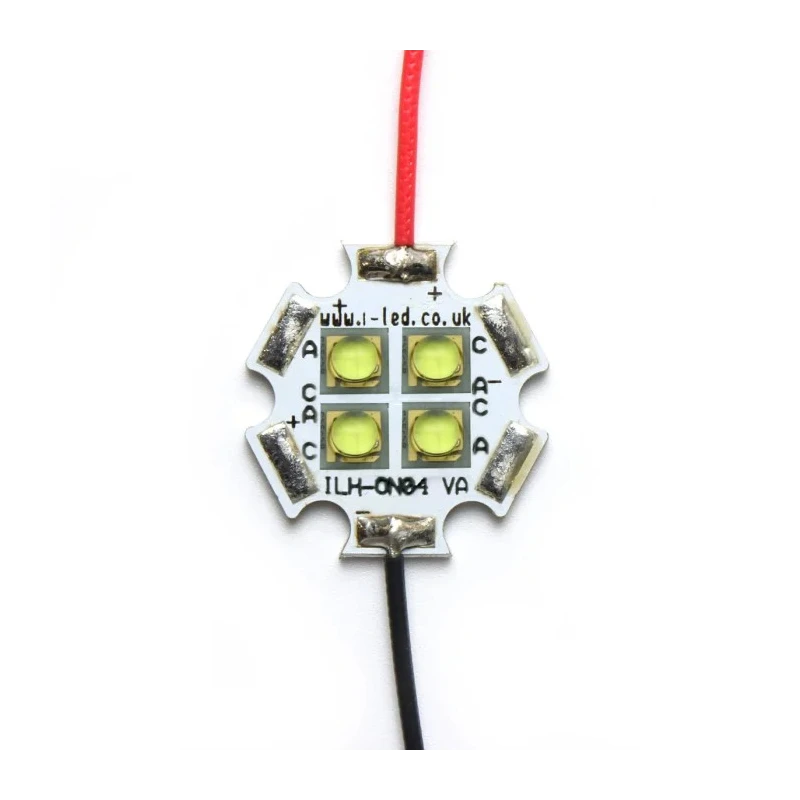

Intelligent LED Solutions Oslon 80 4+ PowerStar LED Array 4-LEDs White 6500K 8.68W ILH-ON04-ULWH-SC211-WIR200.
Specifications
| Country of Origin | India |
|---|---|
| Brand | Intelligent LED Solutions |
| Current | 1A |
| Model | ILH-ON04-ULWH-SC211-WIR200. |
| Connection Type | Solder |
| Output type | Constant Current |
| Series | OSLON 80 4+ PowerStar |
| Outside diameter | 20mm |
| Number Of Leds | 4 |
| Power Dissipation | 8.68W |
| Standards/Approvals | RoHS |
| Colour Temperature | 6500k |
| LED Colour | White |
| Fixing Hole Diameter | 2mm |
| Better World Verification | UK Energy Efficiency Label C |
| LED Voltage | 10.8, 14V |
| Typical Luminous Flux | 500lm |
| PowerStar size (L x W x H) | 20mm x 20mm x 3.85mm |
Key Features
- The array includes 4 Oslon SSL 80 ThinGan LEDs with integral 80° silicone resin lenses.
- Operates at currents up to 1000mA with low thermal resistance for cool running.
- Power dissipation rated at 8.68 watts ensuring high efficiency.
- Compact size of 20mm by 20mm by 3.85mm for versatile mounting.
- Pre-wired with 200mm solder connection wires for easy installation.
- Designed with mounting holes for M3 screws for secure fixing.
- Typical luminous flux of 500 lumens suitable for general and decorative lighting.
- Includes onboard driver and supports constant current output type for reliability.
Product Description
Intelligent LED Solutions ILH-ON04-ULWH-SC211-WIR200. Oslon 80 4+ PowerStar LED Array features 4 high-power white LEDs with a colour temperature of 6500K, delivering efficient and reliable illumination with a typical luminous flux of 500 lumens.
This LED array employs Osram’s latest ThinGan (UX:3) LED technology for superior brightness and thermal management. The aluminium substrate base and low thermal resistance of 7 K/W ensure the LEDs remain cool even at currents up to 1000mA, prolonging operational lifetime and efficiency.
The compact dimensions of 20mm by 20mm by 3.85mm and mounting holes for M3 screws allow for flexible and secure integration into various lighting fixtures. The array is pre-wired with 200mm soldered wires to facilitate easy electrical connection.
Designed for constant current operation with an onboard driver, this LED array dissipates 8.68 watts of power and is certified RoHS compliant with UK Energy Efficiency Label C. It is ideal for a variety of lighting solutions including general lighting, decorative effects, retail displays, task lighting, spotlights, downlighters, and entertainment venues.
Includes 4 Oslon SSL 80 LEDs with integral 80° silicone resin lenses. Compact power star design sized 20mm x 20mm x 3.85mm. Pre-wired with 200 mm solder connection wires. Mounting holes support M3 screws for easy installation.
Typical luminous flux of 500 lumens for high brightness. Power dissipation of 8.68 watts under constant current operation. RoHS compliant and energy efficient with UK Energy Efficiency Label C. Suitable for industrial, commercial, and entertainment lighting applications.
Note: The PowerStar LEDs require appropriate heat sinking to prevent overheating, which can cause damage or failure. Do not operate with unlimited current power supplies; ensure constant current limiting power supplies are used.
Explore the Intelligent LED Solutions range on EnvMart for advanced LED components and reliable lighting solutions tailored for industrial and commercial needs.
Explore more products in our LED Arrays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power dissipation of this LED array is rated at 8.68 watts under constant current operation.
This model delivers a typical luminous flux of 500 lumens, suitable for general and decorative lighting applications.

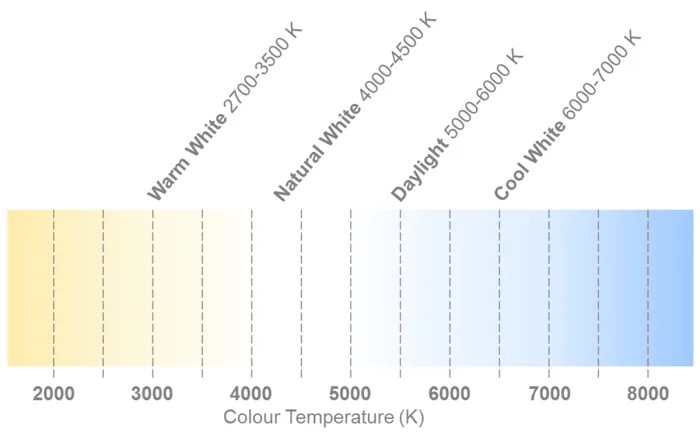

The LEDs in this array have a colour temperature of 6500K, producing a cool white light.
The dimensions of this LED array are 20mm by 20mm by 3.85mm, allowing for versatile mounting options.
This unit is pre-wired with 200mm solder connection wires for easy installation.
This LED array can operate at currents up to 1000mA.
It supports a constant current output type, ensuring reliable performance.
The array features an aluminium substrate base and integral silicone resin lenses for effective thermal management and light distribution.
This model includes mounting holes for M3 screws, providing secure fixing options.
Yes, it is RoHS compliant and has a UK Energy Efficiency Label C certification.
It is suitable for various lighting solutions including general lighting, decorative effects, retail displays, task lighting, and entertainment venues.
The fixing hole diameter for mounting this LED array is 2mm.
