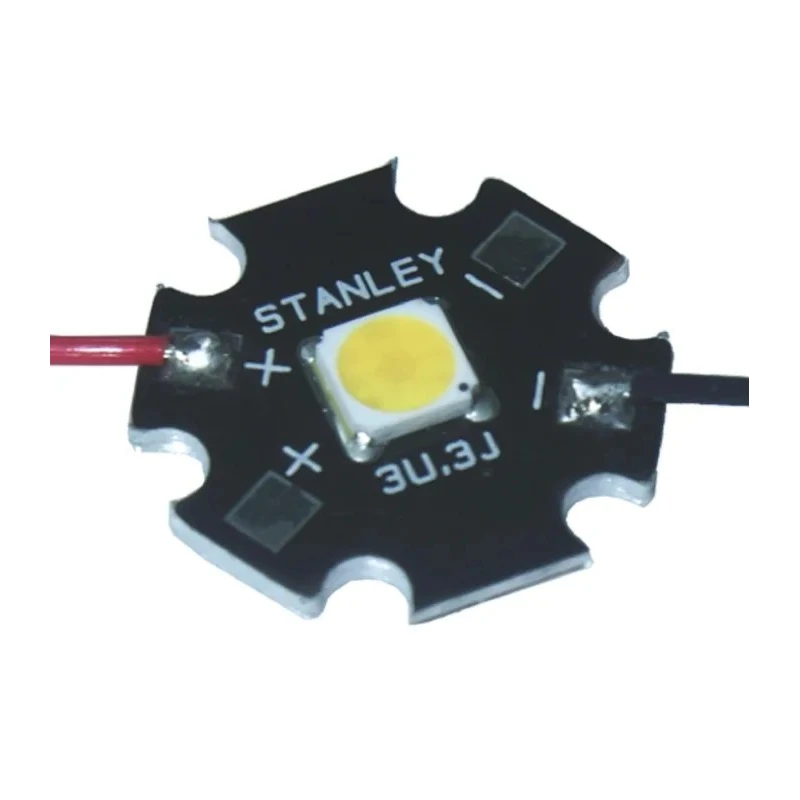

Intelligent LED Solutions PowerStar LED Array 1-LEDs White 6500K ILH-SJ01-UL95-SC201-WIR200

Intelligent LED Solutions ILH-SJ01-UL95-SC201-WIR200 PowerStar LED Array is a high-performance LED module designed to provide efficient white light output with enhanced brightness and longevity. This model is equipped with a Stanley Electric 3J series single LED that delivers a color temperature of 6500K, producing bright white illumination suitable for a range of industrial, commercial, and decorative lighting applications.

The LED array operates at a constant current output of 800mA with a typical luminous flux of 100 lumens, ensuring consistent light quality. Its compact size, measuring 20 x 20 x 3.85 millimeters, allows it to be integrated into constrained spaces, supporting diverse lighting designs including spotlights, downlighters, and display lighting.

Constructed on an aluminum substrate, the LED array benefits from optimal thermal management, enhancing reliability and performance. It arrives pre-wired with 200mm connection wires and features solder connection type with an onboard driver, simplifying the installation process. The product is RoHS compliant, guaranteeing adherence to environmental and safety standards.

The PowerStar LED array is engineered for a long operating lifetime, reaching up to 60,000 hours while maintaining 70% of its original brightness. Mounting holes compatible with M3 screws facilitate easy and secure installation in various housing configurations. Users should ensure the LED array is attached to a suitable heat sink during operation to prevent overheating and potential damage.

This LED array does not hold automotive standards but is ideal for general lighting, task lighting, retail lighting, and entertainment lighting purposes. It represents a reliable solution for manufacturers and engineers requiring high-quality LED modules with stable output and extended durability.

Equipped with one Stanley Electric 3J series LED for superior luminance. White LED color with a color temperature of 6500K delivers bright, crisp lighting. Operates at 800mA current with a typical luminous flux of 100lm.

Compact dimensions of 20 x 20 x 3.85 mm for versatile installation. Includes onboard driver and solder connection for easy integration. Power dissipation rated at 2.1W with a LED voltage of 3V. Pre-wired with 200mm wires for convenient electrical connection.

RoHS compliant and built to high standards without automotive certification. Provides up to 60,000 hours lifetime maintaining 70% original brightness. Includes mounting holes for M3 screws for secure fitting.
