RS PRO Double Level Terminal Block Beige 2.5mm² 2-Level Screw Termination 800V 24A 878-7471

Free Delivery in India | Lowest Global Shipping Charges

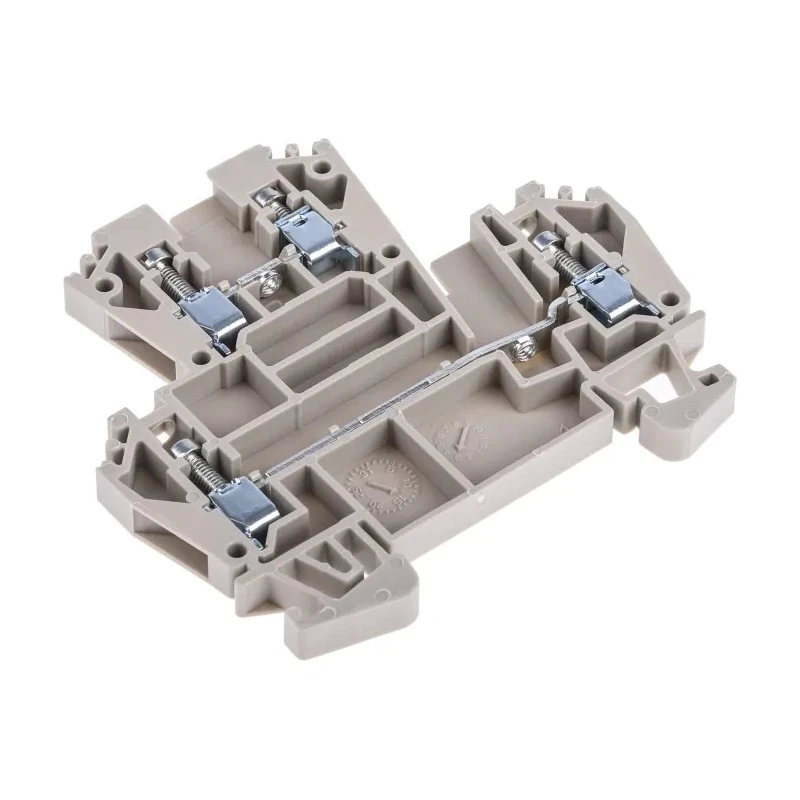

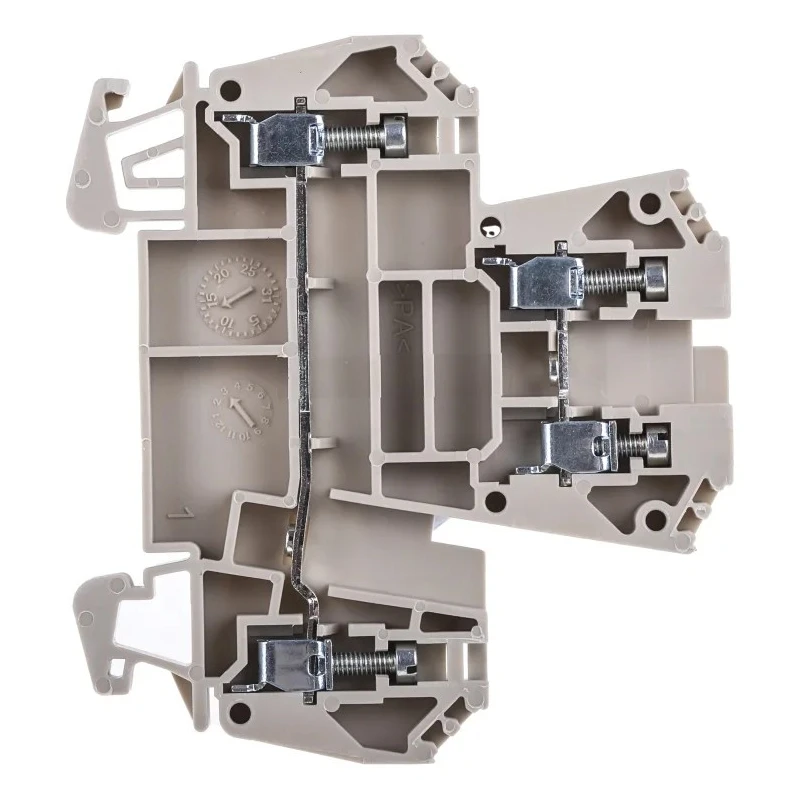

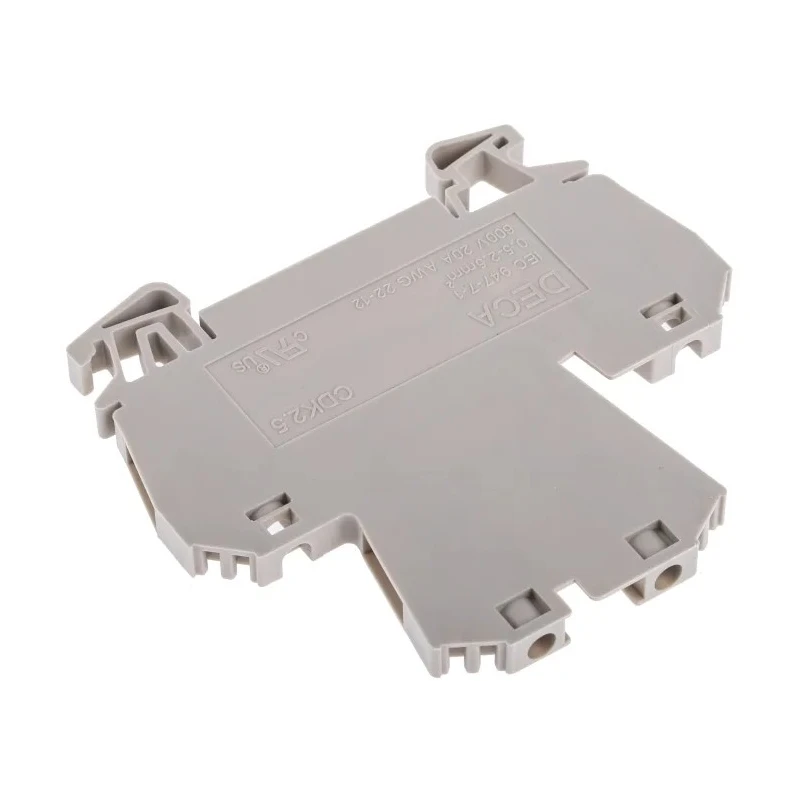

RS PRO Double Level Terminal Block Beige 2.5mm² 2-Level Screw Termination 800V 24A 878-7471

Name: RS PRO Double Level Terminal Block Beige 2.5mm² 2-Level Screw Termination 800V 24A 878-7471
Brand: RS PRO
SKU: 384369
Price: 20.22 USD
Availability: InStock



Category Terminal Block Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	800V
Brand	RS PRO
Colour	Beige
Model	878-7471
Termination Type	Screw
Maximum Operating Temperature	105°C
Number of Levels	2
Minimum Operating Temperature	-40°C
Standards/Approvals	UL, IEC, cUL, CSA
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	12AWG
Cable CSA	2.5mm²
Terminal Block Current	24A

Key Features

Double-level design reduces space requirements and simplifies wiring.
Screw termination ensures secure and reliable wire connections.
Supports wire sizes from 22 AWG to 12 AWG.
Rated for 800 V voltage and 24 A current to handle industrial loads.
Operates reliably between -40°C and 105°C for various environments.
Mounts easily on DIN rails with snap-fit feet for quick installation.
Compliant with UL, IEC, cUL, and CSA standards ensuring safety and quality.
High vibration resistance and low maintenance enhance operational reliability.

Product Description

RS PRO 878-7471 Double Level Terminal Block is a high-quality beige DIN rail terminal block designed for industrial and commercial electrical applications. Featuring two levels, this terminal block allows for efficient use of space and reduces the need for rail extensions, making wiring compact and organized.

The screw termination type provides secure and maintenance-friendly connections with wire sizes ranging from 22 AWG to 12 AWG, supporting a cable cross-sectional area of 2.5 mm². It is rated for up to 800 volts and can safely carry currents up to 24 amperes, accommodating industrial control panel requirements.

The terminal block is engineered to operate in harsh environments, withstanding temperatures from -40°C to 105°C. Its snap-fit mounting feet facilitate quick and easy installation and removal from standard DIN rails, saving time during assembly and maintenance. This component is compliant with global standards including UL, IEC, cUL, and CSA, ensuring safety and reliability in critical electrical circuits.

Designed for diverse use cases such as industrial automation systems, power distribution, and circuit board assemblies, this RS PRO terminal block reduces exposed wiring hazards and aids in isolating individual components to maintain circuit integrity.

Double-level terminal block for space-saving wiring. Screw termination type for strong mechanical and electrical connections. AWG wire size support from 22 to 12 with 2.5mm² cable capacity. Voltage rating of 800 V and current capacity of 24 A for robust performance.

Wide operating temperature range from -40°C to 105°C for versatility. Snap-in feet for DIN rail mounting ensuring easy installation. Certified by UL, IEC, cUL, and CSA standards for assured quality. High vibration resistance and low maintenance requirement.

Manufactured in Taiwan, Province Of China to high quality specifications.

This RS PRO series terminal block is ideal for electrical engineering professionals needing dependable, efficient, and compact terminal solutions for control panels and industrial wiring systems. Browse the RS PRO collection for more high-quality electrical components and Terminal Block solutions on EnvMart.
