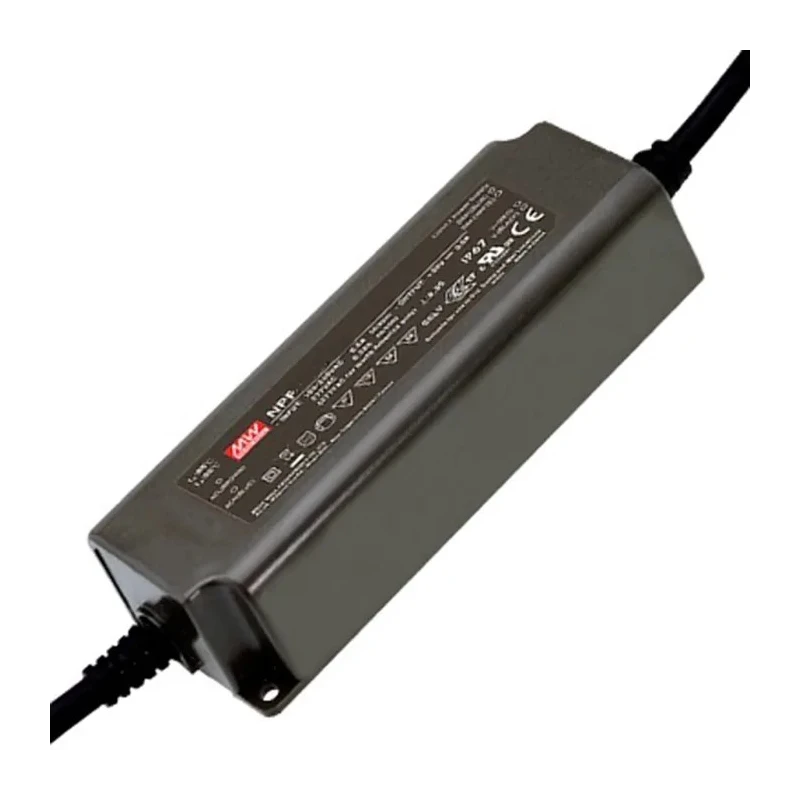

MEAN WELL IP67 5 Output Dimmable Constant Voltage LED Driver 48V 120W 2.5A PWM Resistance

MEAN WELL NPF-120D-48 is a 5 output LED driver designed for constant voltage applications, providing 48V output at 120W power and 2.5A current.

This LED driver is part of the NPF-120-D series, featuring dimmable operation with 3-in-1 dimming functions including 0 - 10V DC, PWM signal, and resistance dimming. It offers a high efficiency of up to 95%, contributing to energy saving while maintaining excellent performance.

The unit is enclosed in a fully encapsulated IP67 rated plastic case, making it suitable for installation in harsh and dusty environments. The case is made of flame retardant 94V-0 plastic and contains silicone potting to enhance vibration resistance up to 5G and improve heat dissipation.

This LED driver supports a wide input voltage range from 90 to 305 VAC with active Power Factor Correction (PFC) integrated. It includes multiple protective features such as short circuit, over voltage, over current, and over temperature protections, ensuring reliable and safe operation.

MEAN WELL NPF-120D-48 is designed as a Class II power supply with double insulation and a weather resistant cable to allow flexible installation options without the need for grounding. It operates efficiently within a temperature range of -40°C to +70°C, making it suitable for industrial, commercial, water treatment, and outdoor lighting applications requiring robust and waterproof LED drivers.

Supports 5 output channels for versatile LED lighting applications. Dimmable via resistance and PWM methods providing flexible brightness control. High efficiency of up to 95% with low standby power consumption below 0.15W.

Waterproof IP67 rated and flame retardant casing ensures durability in harsh environments. Comprehensive protections include short circuit, over current, over voltage, and thermal safeguards. Wide universal AC input voltage from 90 to 305 V with built-in active PFC function.

Class II design with double insulation and weather resistant cable for safe installation. Operating temperature range from -40°C to +70°C suitable for demanding environments. Cooling by free air convection eliminates the need for fans, enhancing long-term reliability.

This product is appropriate for industrial LED lighting systems, outdoor commercial illumination, and other applications requiring reliable, waterproof constant voltage LED drivers. MEAN WELL LED drivers provide trusted power supplies for diverse industrial sectors including manufacturing, water treatment, and HVAC systems.

EnvMart offers this MEAN WELL NPF-120D-48 LED driver as part of its comprehensive electronics components range, suitable for professionals and engineers demanding quality and durability.
