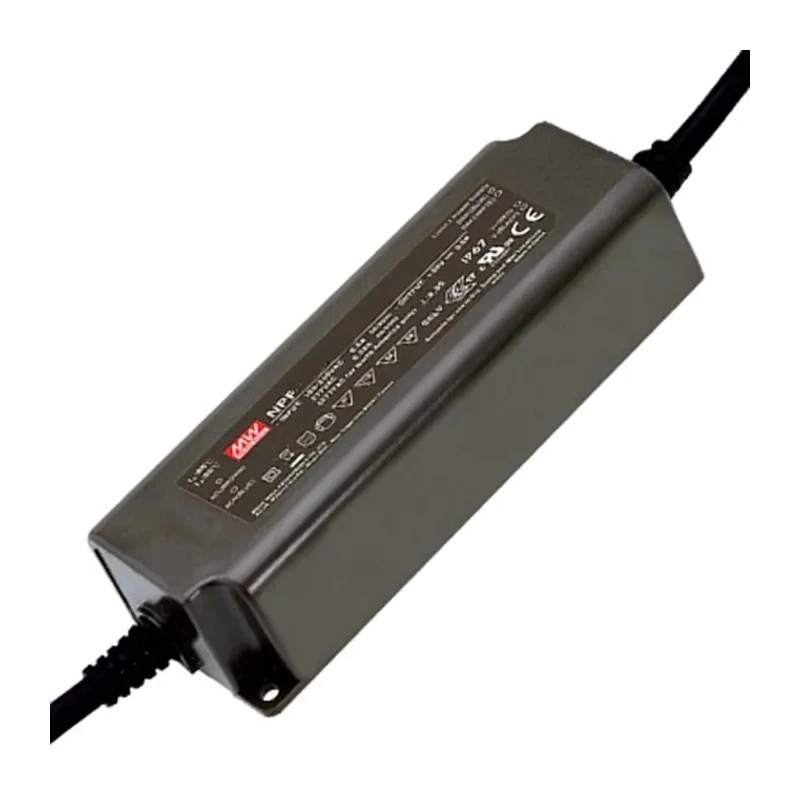

MEAN WELL 120W IP67 5 Output Constant Voltage AC-DC LED Driver, 30V, 4A
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | NPF-120 |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Voltage |
| Number of outputs | 5 |
| Terminal type | Wire |
| Maximum Output Power | 120W |
| Input Voltage | 305, 90, 127, 431V ac |
| Output Voltage | 30V |
| Power Dissipation | 120W |
| Standards/Approvals | CAN/CSA, CB, UL, CE, EAC, ENEC, SELV |
| Primary Type | AC-DC |
| Driver Current | 4A |
Key Features
- Provides 120 watts maximum output power for efficient LED operation.
- Supports five separate constant voltage outputs rated at 30 volts each.
- Equipped with IP67 ingress protection for dust and water resistance.
- Features built-in active PFC function and high efficiency up to 95%.
- Operates with universal AC input voltage range from 90 to 305 volts.
- Constructed with a fully encapsulated, flame retardant plastic case for enhanced durability.
- Designed for use in dry, damp, and wet locations with a rugged enclosure.
- Cooling is passively managed by free air convection with no moving parts.
Product Description
MEAN WELL NPF-120-30 is a 120W, 30V constant voltage LED driver with 5 outputs and a 4A rated driver current, designed for reliable LED lighting power supply applications.
This IP67 rated LED driver features a fully encapsulated plastic casing that provides excellent dustproof and waterproof capabilities, making it suitable for harsh environments including industrial, commercial, and outdoor uses. The case is made from 94V-0 flame retardant plastic, and the internal circuitry is fully potted with silicone to resist vibration up to 5G and enhance heat dissipation.
The driver supports universal AC input voltage ranging from 90 to 305VAC and includes an active power factor correction (PFC) function, contributing to high energy efficiency up to 95% and low no-load power consumption below 0.15W. Its design incorporates class II double insulation and weather-resistant cable, enabling flexible installation in various LED lighting systems.
Maximum output power of 120W delivers robust lighting performance. Five isolated constant voltage outputs rated at 30V each allow for versatile multi-channel LED configurations. Protection against short circuit, over current, over voltage, and over temperature ensures operational safety and driver longevity.
IP67 IP rating confirms strong resistance to dust intrusion and water immersion. Total encapsulation and flame retardant materials enhance durability in industrial and outdoor environments.
This LED driver complies with multiple international standards and approvals including UL8750, CSA C22.2 No.250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, and IP67 for safety and performance.
MEAN WELL NPF-120-30 driver is ideally suited for applications in LED lighting installations in industrial buildings, commercial properties, outdoor signage, and architectural lighting, delivering stable, efficient, and safe power supply under a wide range of temperatures from -40°C to +70°C.
Explore a wide selection of MEAN WELL LED drivers and related LED lighting components at EnvMart for all your industrial and commercial lighting needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this LED driver is 120 watts.
This LED driver features five separate constant voltage outputs.
Each output is rated at 30 volts.
It provides protection against short circuit, over current, over voltage, and over temperature.
This LED driver has an IP67 ingress protection rating, indicating strong resistance to dust and water.
The rated driver current is 4A.
It is constructed with a fully encapsulated, flame retardant plastic case.
It can operate in a wide temperature range from -40°C to +70°C.
It uses a screw mount type for installation.
It complies with multiple standards including UL8750, CSA C22.2 No.250.13-12, and ENEC EN61347-1.
The driver achieves high efficiency up to 95%.
