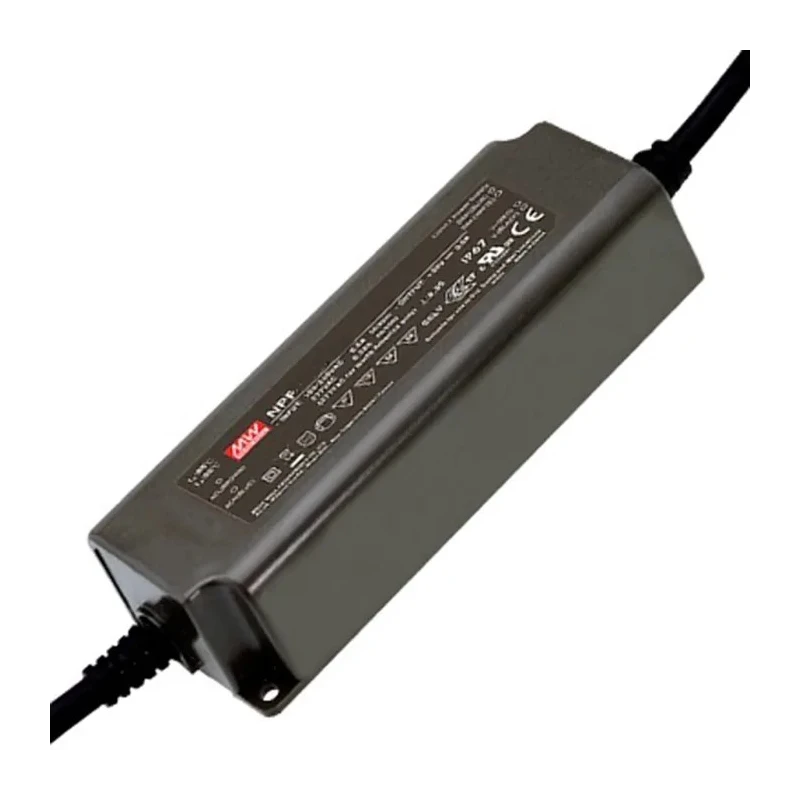

MEAN WELL IP67 5 Output Constant Voltage LED Driver 20V 120W 6A Screw Mount
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | NPF-120 |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Voltage |
| Number of outputs | 5 |
| Terminal type | Wire |
| Maximum Output Power | 120W |
| Input Voltage | 305, 90, 127, 431V ac |
| Output Voltage | 20V |
| Power Dissipation | 120W |
| Standards/Approvals | CAN/CSA, CB, CE, EAC, ENEC, SELV, UL |
| Primary Type | AC-DC |
| Driver Current | 6A |
Key Features
- Capable of operating with input voltage ranging from 90 to 305Vac for universal AC compatibility.
- Equipped with active PFC function to enhance power efficiency up to 95%.
- Designed with IP67 enclosure, ensuring protection against dust and water ingress.
- Includes protections against short circuit, over current, over voltage, and over temperature for safe operation.
- Made with flame retardant and fully encapsulated plastic case for durability in harsh environments.
- Operates in a wide temperature range from -40°C to +70°C suitable for dry, damp, and wet locations.
- Class II power unit design with no FG pin for safe and flexible installation.
- Low no-load power consumption below 0.15W, minimizing energy waste.
Product Description
MEAN WELL NPF-120-20 is a robust and reliable 120W constant voltage LED driver designed for industrial, commercial, and outdoor LED lighting applications requiring multiple outputs. It features 5 output channels each providing a stable 20V output at 6A current capacity. The LED driver is built to withstand harsh environments, evidenced by its IP67 rating, fully encapsulated silicone potting, and flame retardant plastic enclosure.
The device accepts a wide input voltage range from 90 to 305Vac, supporting global AC mains standards with active power factor correction (PFC) to achieve high operational efficiency up to 95%. It has multiple built-in safety protections including short circuit, overcurrent, overvoltage, and thermal shutdown to ensure continuous and safe operation in demanding conditions.
Designed for ease of installation, the NPF-120-20 mounts securely via screws and connects through wire terminals. Its compact design and Class II insulation enable safe, flexible mounting without grounding pins. This LED driver suits a variety of applications such as industrial lighting, architectural illumination, signage, and other LED lighting systems exposed to dust, moisture and vibration up to 5G.
The device complies with international standards including CAN/CSA, UL, CB, CE, EAC, ENEC, SELV, and meets IP67 ingress protection rating ensuring reliability in wet and dusty environments. Operating temperature range between -40°C and +70°C allows deployment in extreme climates.
With low no-load power consumption (.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this LED driver is 120W.
It operates with an input voltage range from 90 to 305Vac.
This LED driver features 5 output channels, each providing a stable output.
The output voltage provided by this model is 20V.
It includes protections against short circuit, over current, over voltage, and over temperature.
The operating temperature range is from -40°C to +70°C.
This model is designed for screw mounting.
The IP rating of this LED driver is IP67, providing protection against dust and water ingress.
It uses wire terminals for connections.
It complies with standards including CAN/CSA, CB, CE, EAC, ENEC, SELV, and UL.
The driver current capacity is 6A.
The power dissipation for this LED driver is 120W.
