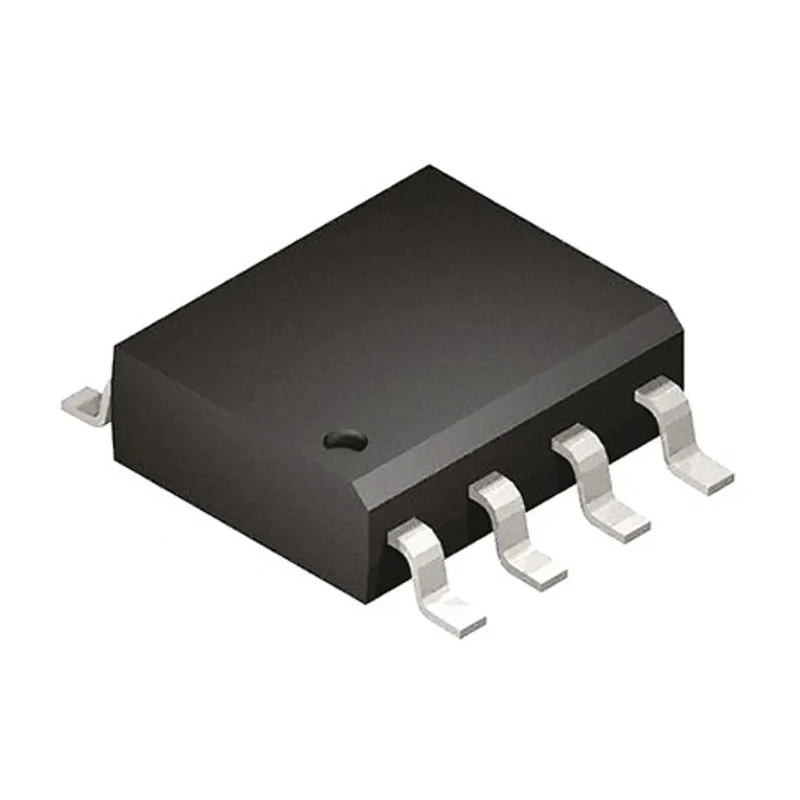

onsemi MOSFET Gate Driver 2 Outputs 2.5A 8-Pin SOP 1V-20V Operating Voltage FAN73901MX
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.55mm |
| Length | 5.12mm |
| Model | FAN73901MX |
| Width | 4.15mm |
| Mount Type | Surface |
| Series | FAN73901 |
| Output Current | 2.5A |
| Maximum Operating Temperature | 125°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Rise Time | 50ns |
| Standards/Approvals | JESD51-3, JESD51-2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | 1V |
| Number of Drivers | 2 |
| Fall Time | 45ns |
| Driver Type | MOSFET |
Key Features
- This device features a minimum supply voltage of 1V and maximum of 20V.
- It provides fast switching with rise time of 50ns and fall time of 45ns.
- The gate driver incorporates 2 independent drivers for versatile circuit applications.
- Designed for surface mounting, it measures 5.12 mm in length, 4.15 mm in width, and 1.55 mm in height.
- Operates reliably within a temperature range from -40°C to 125°C.
- Built to meet industry standards JESD51-2 and JESD51-3 for enhanced performance.
- Automotive standard compliance is not applicable for this model.
- Suitable for use in power management in electronic circuits, industrial control, and motor driving applications.
Product Description
onsemi FAN73901MX MOSFET Gate Driver is a dual-output power management IC designed to drive high and low side MOSFETs efficiently. Its robust output current of 2.5A ensures rapid switching, making it ideal for industrial and automotive power applications.
This device is encapsulated in an 8-pin SOP package measuring 5.12 mm by 4.15 mm and a height of 1.55 mm, optimized for surface mount technology. The gate driver operates over a wide supply voltage range from 1V to 20V and can withstand operating temperatures from -40°C to 125°C, suitable for demanding environments.
With rise and fall times of 50ns and 45ns respectively, it supports fast switching frequencies, enhancing system efficiency and responsiveness. The FAN73901MX is compliant with standards JESD51-2 and JESD51-3, assuring design quality and reliability in power management applications.
This device features a minimum supply voltage of 1V and maximum of 20V. Supports an output current of up to 2.5A for effective MOSFET gate driving. Includes 2 independent MOSFET drivers to handle dual output configurations.
Compact 8-pin SOP surface mount package for easy PCB integration. Reliable operation within a broad temperature range from -40°C to 125°C. Fast switching times with 50ns rise time and 45ns fall time. Meets industry standards (JESD51-2, JESD51-3) for thermal and electrical performance.
Ideal for industrial, laboratory, HVAC, manufacturing, and motor control applications.
This MOSFET gate driver variant from onsemi is optimized for power control tasks requiring precise and high-current gate drive capabilities. Its wide voltage range and temperature tolerance make it versatile for multiple sectors including industrial automation, power supplies, and electric motor drivers.
Explore more power management ICs and gate driver solutions on EnvMart for your technical and industrial needs.
Explore more products in our Gate Drivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides an output current of up to 2.5A, ensuring effective MOSFET gate driving.
The FAN73901MX operates within a supply voltage range of 1V to 20V.
It features a rise time of 50ns and a fall time of 45ns, supporting fast switching frequencies.
This model measures 5.12 mm in length, 4.15 mm in width, and 1.55 mm in height.
It operates reliably within a temperature range from -40°C to 125°C.
This device is designed for surface mounting, optimized for PCB integration.
It meets industry standards JESD51-2 and JESD51-3 for thermal and electrical performance.
The FAN73901MX is encapsulated in an 8-pin SOP package.
It is suitable for power management in electronic circuits, industrial control, and motor driving applications.
Its fast switching capabilities, with rise and fall times of 50ns and 45ns, enhance system responsiveness and efficiency.
The FAN73901MX is manufactured in India.
