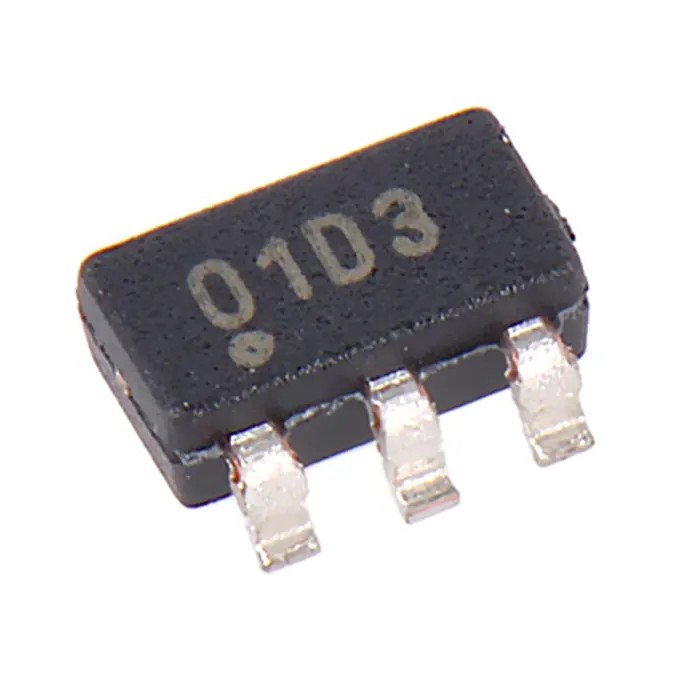

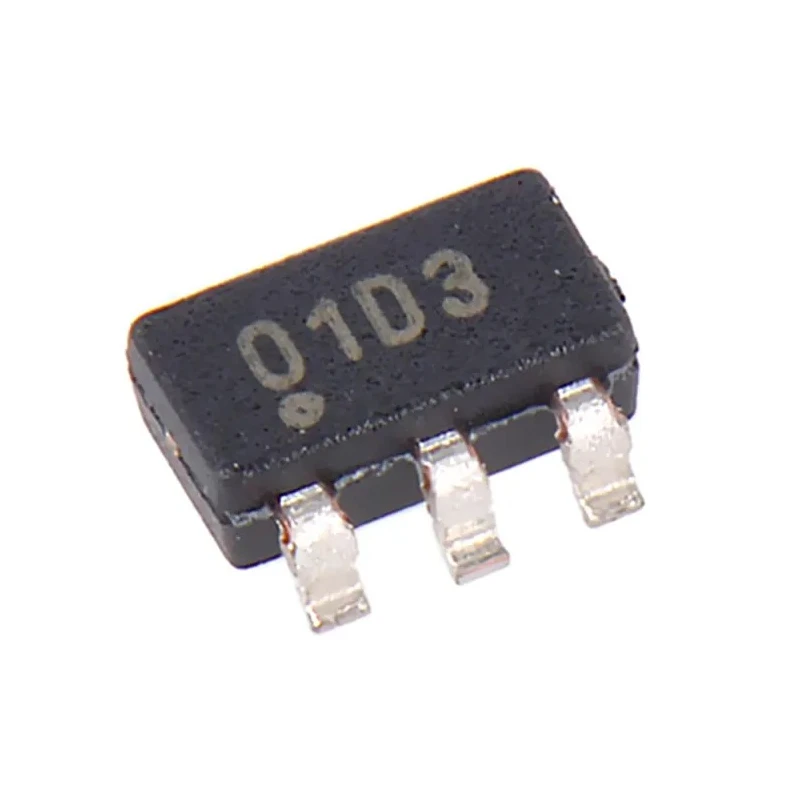

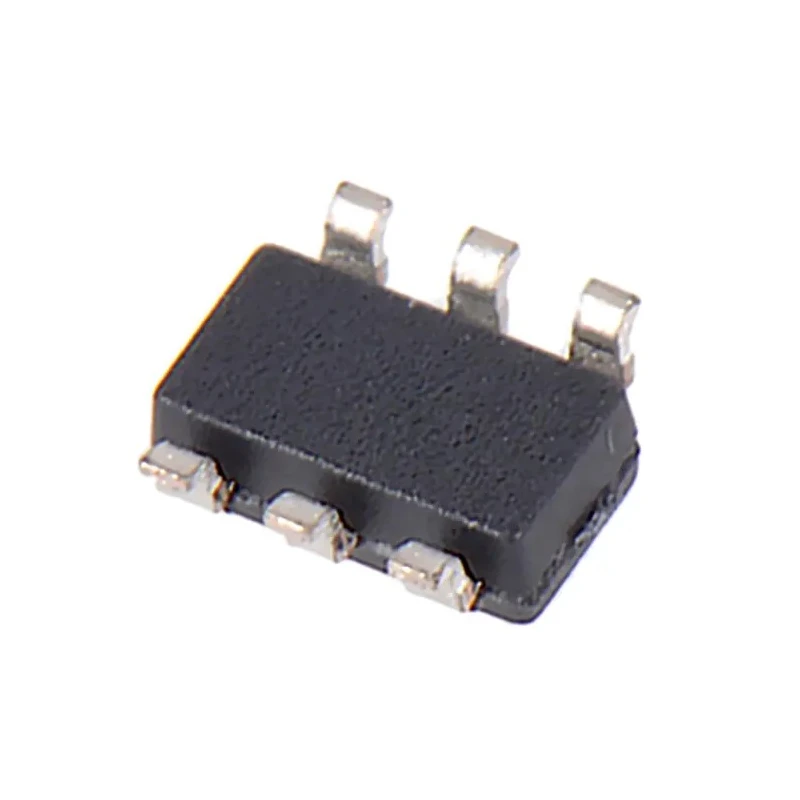

Microchip MTCH101 Capacitive Touch Sensor 2V to 5.5V, 25mA Open Drain Output, 6-Pin SOT-23 Package MTCH101
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | MTCH101 |
| Width | 1.8mm |
| Mount Type | Surface |
| Output type | Open Drain |
| Series | MTCH101 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Maximum Output Current | 25mA |
| Pin Count | 6 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2V |
| Microchip MTCH101 Capacitive Proximity Detector 2 V 5.5V 6 SOT-23Brand | Microchip |
Key Features
- Operates on a voltage range from 2 volts to 5.5 volts.
- Features an open drain output type for effective signal interfacing.
- Maximum output current is rated at 25 milliamps.
- Compact 6-pin SOT-23 package measuring 3.1 mm x 1.8 mm x 1.3 mm.
- Wide operational temperature range from -40°C to +85°C.
- Designed for surface mount applications for easy PCB integration.
- Does not comply with automotive standards, intended for general electronic applications.
- Part of the MTCH101 series of capacitive proximity and touch controllers.
Product Description
Microchip MTCH101 Capacitive Touch Sensor MTCH101 is designed for use in human-machine interface (HMI) applications, providing capacitive proximity and touch sensing capabilities. Operating over a supply voltage range of 2 to 5.5 volts, it delivers a maximum output current of 25mA through an open drain output, enabling flexible interfacing with control systems.
The sensor is housed in a compact 6-pin SOT-23 package with dimensions 3.1 mm length, 1.8 mm width, and 1.3 mm height, optimized for surface mount mounting techniques to facilitate high-volume PCB assembly. It operates reliably in a wide temperature range from -40°C to +85°C, making it suitable for varied environmental conditions.
This device is ideal for industrial, laboratory, automation, and consumer electronic applications requiring capacitive sensing technologies. Although not automotive grade, it serves effectively in standard electronic equipment for proximity detection and touch input.
Operates from 2V to 5.5V supply voltage. Open drain output type allowing simple integration with external circuitry. Maximum output current of 25mA ensures robust signal drive. Surface mount 6-pin SOT-23 package enables compact PCB layouts.
Operating temperature from -40°C to +85°C supports diverse environments. Suitable for human machine interfaces and capacitive proximity detection. Non-automotive sensor tailored for electronic components. Part of the dedicated MTCH101 series by Microchip.
The package includes the MTCH101 capacitive touch sensor in SOT-23 format, ready for integration into your electronic design requiring sensitive and reliable touch or proximity control. Explore the broader range of Microchip sensor ICs for complementary solutions in automation and control gear.
EnvMart offers this Microchip MTCH101 Capacitive Touch Sensor with validated specifications and reliable supply chains, ensuring your projects have trusted components.
Explore more products in our Capacitive Proximity Sensor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MTCH101 operates over a supply voltage range of 2 volts to 5.5 volts.
It has a maximum output current rating of 25 milliamps.
This model features an open drain output type, allowing for effective signal interfacing with control systems.
The sensor is housed in a compact 6-pin SOT-23 package measuring 3.1 mm in length, 1.8 mm in width, and 1.3 mm in height.
It operates reliably within a wide temperature range from -40°C to +85°C.
This model is designed for surface mount applications, facilitating easy integration into PCBs.
It is suitable for various applications including industrial, laboratory, automation, and consumer electronics requiring capacitive sensing technologies.
The sensor features a 6-pin configuration.
No, this sensor does not comply with automotive standards and is intended for general electronic applications.
It is part of the MTCH101 series of capacitive proximity and touch controllers by Microchip.
The country of origin for the MTCH101 is India.
The open drain output type allows for simple integration with external circuitry, enhancing flexibility in signal interfacing.
