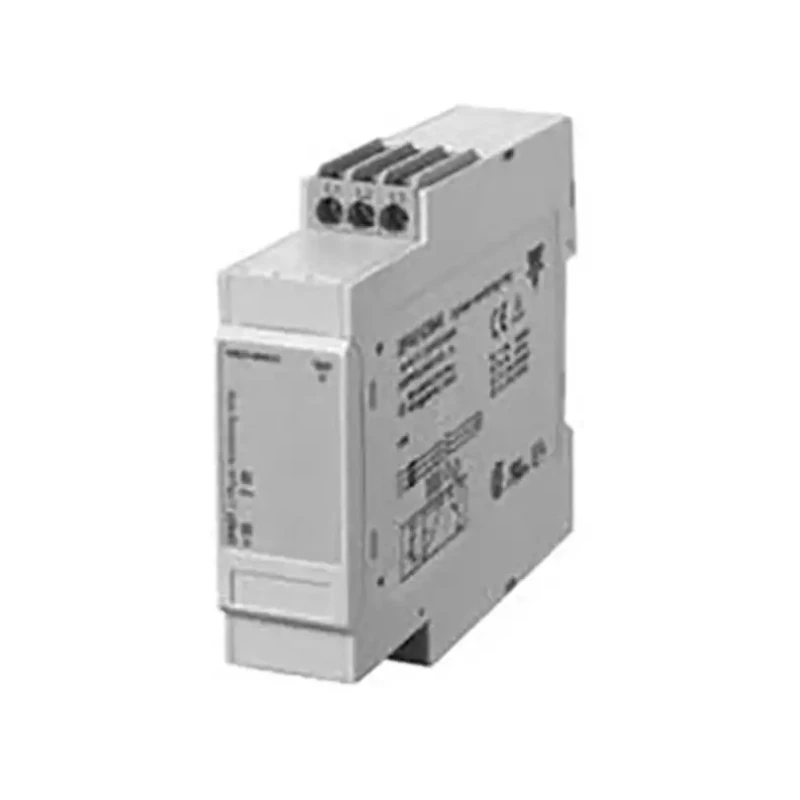

Carlo Gavazzi 3 Phase Over Voltage Over Current Monitoring Relay, SPDT Contact, 510/760 V AC Monitor Range, DIN DPA01CM69

Carlo Gavazzi DPA01CM69 is a high-performance monitoring relay designed for industrial and electrical automation applications to monitor over voltage and over current conditions in three-phase systems. It operates within a monitoring voltage range of 510/760 V AC and provides reliable switching via an 8 A SPDT relay contact.

The relay features programmable latching that maintains the output relay's ON state during alarm conditions, enhancing operational safety and control. The red LED alarm indicator provides immediate visual status feedback.

This DIN Rail mountable device is constructed with an IP20 rated enclosure, combining durability with easy installation via screw terminals. The relay supports a supply voltage of 24 V DC and can monitor AC voltages up to 690 V AC, making it suitable for a wide range of electrical panels and automation control environments.

Adjustable measuring ranges, selectable by DIP-switches, enhance flexibility with options spanning from 2 to 20 VAC/DC, 5 to 50 VAC/DC, and higher ranges up to 50 to 500 VAC/DC. The device is suitable for industrial monitoring, HVAC installations, manufacturing process control, and electrical system protection.

Standards compliance includes UL and CSA certifications, and electromagnetic compatibility confirmed by EN 61000-6-3 and EN 61000-6-2 approvals ensures reliable operation in electrically noisy environments.

Dimensional compactness with a height of 80 mm, length of 99.5 mm, and width of 22.5 mm makes it well suited for panel mounting without consuming excessive space.

Ideal for industrial, manufacturing, building automation, and electrical control panel applications, the Carlo Gavazzi DPA01CM69 monitoring relay delivers precise, reliable performance for phase sequence, over voltage, and over current monitoring.

Explore the range of Monitoring Relays at EnvMart to find solutions optimized for your electrical control and automation requirements. Equipped with a single-pole double-throw (SPDT) relay contact for versatile switching.

Suitable for DIN Rail mounting with screw terminal connections. Operating voltage includes 24 V DC supply and 600 to 690 V AC supply range. Features adjustable measuring ranges and programmable latching for precise monitoring.

Built-in latch maintains output relay ON position during alarm conditions. Red LED status indicator displays alarm states clearly. Robust IP20 rated enclosure protects internal components. Compliant with UL, EN 61000-6-3, CSA, and EN 61000-6-2 standards.

Compact dimensions: 80 mm height, 99.5 mm length, 22.5 mm width. Country of origin: Italy.
