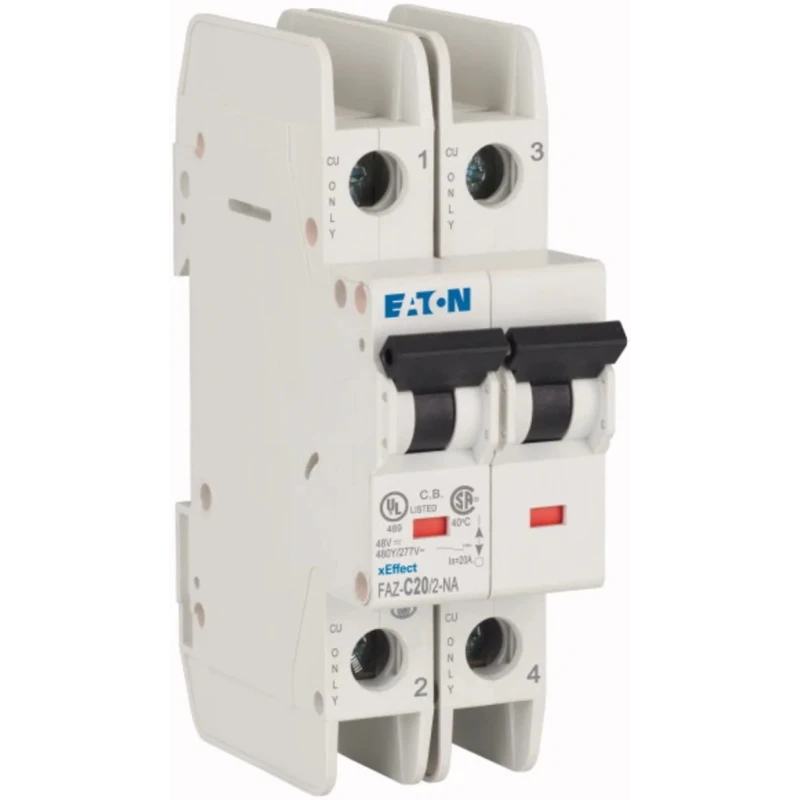

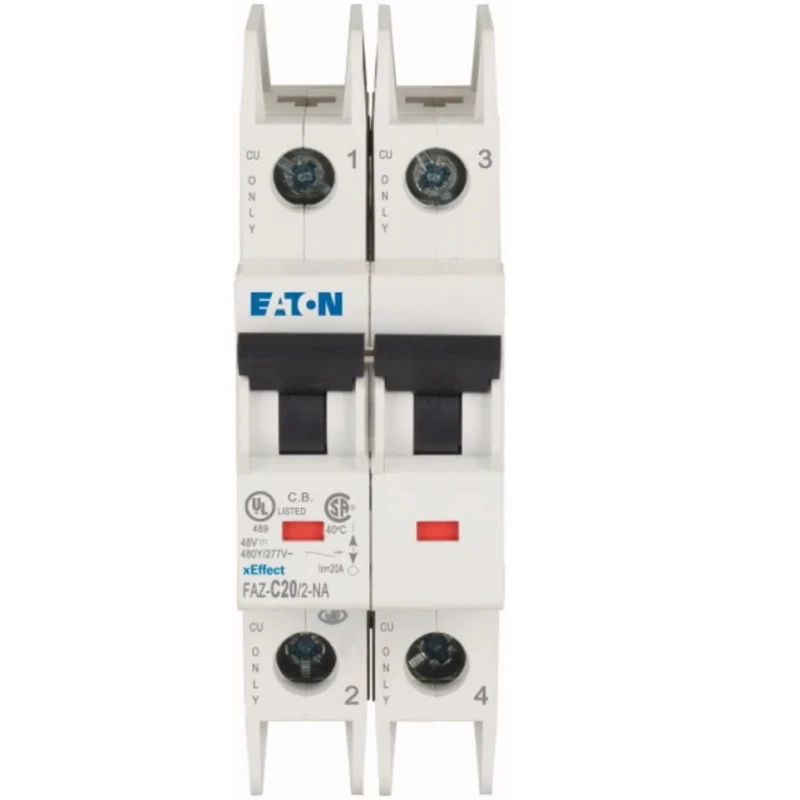

RS PRO xEffect Miniature Circuit Breaker 2-Pole 20A Type C 415V AC 60V DC 10kA Breaking Capacity 102171 FAZ-C20/2-NA

Eaton 102171 FAZ-C20/2-NA Miniature Circuit Breaker (MCB) is a high-quality electrical protection device for safeguarding circuits from overload and short circuits. This 2-pole MCB with Type C tripping characteristics is engineered for industrial, commercial, and residential applications, especially where high inrush currents from equipment like air conditioners and submersible pumps are common.

Rated for 20A current, 415V AC, and 60V DC voltages, it ensures robust performance in diverse electrical environments. The thermal magnetic tripping mechanism provides fast and reliable disconnection, protecting sensitive electronic components and wiring.

The MCB is designed for practical installation on a DIN rail with screw terminals facilitating secure and reliable electrical connections. Its compact 105mm width and 76mm depth enable space-saving distribution panels. With an IP20 rating, it is protected against the ingress of solid objects larger than 12mm, suitable for controlled indoor environments.

Operating seamlessly across a wide temperature range from -25°C to +75°C, this breaker is suitable for harsh industrial and commercial conditions. The device offers a breaking capacity of 10 kiloamperes, ensuring interrupting capability during high fault currents to prevent equipment damage and fire risk.

Additional features include an instantaneous break time for rapid disconnection and a toggle switch actuator for manual reset. The circuit breaker boasts a long operational lifespan exceeding 20,000 operations, reducing maintenance and replacement costs.

This product is ideal for power distribution boards in factory automation, HVAC systems, manufacturing plants, water treatment stations, and commercial electrical installations requiring reliable overload protection.

Provides protection against electrical overloads with thermal magnetic tripping. Type C tripping characteristic trips at 5 to 10 times rated current, suitable for high-power devices. Rated for 415V AC and 60V DC voltages ensuring versatile industrial use.

Has a breaking capacity of 10 kA to handle powerful fault currents safely. Equipped with screw terminal type for secure electrical connections. Designed for DIN rail mounting for easy installation without additional tools.

Compact dimensions with 105mm width and 76mm depth for space-efficient panels. Features toggle switch actuator allowing manual reset operation. Operating temperature range from -25°C to +75°C suitable for harsh environments.

IP20 rating provides protection against foreign objects larger than 12mm. Explore more Eaton circuit protection solutions in the Electronics & Electricals category on EnvMart for your industrial and commercial needs.
