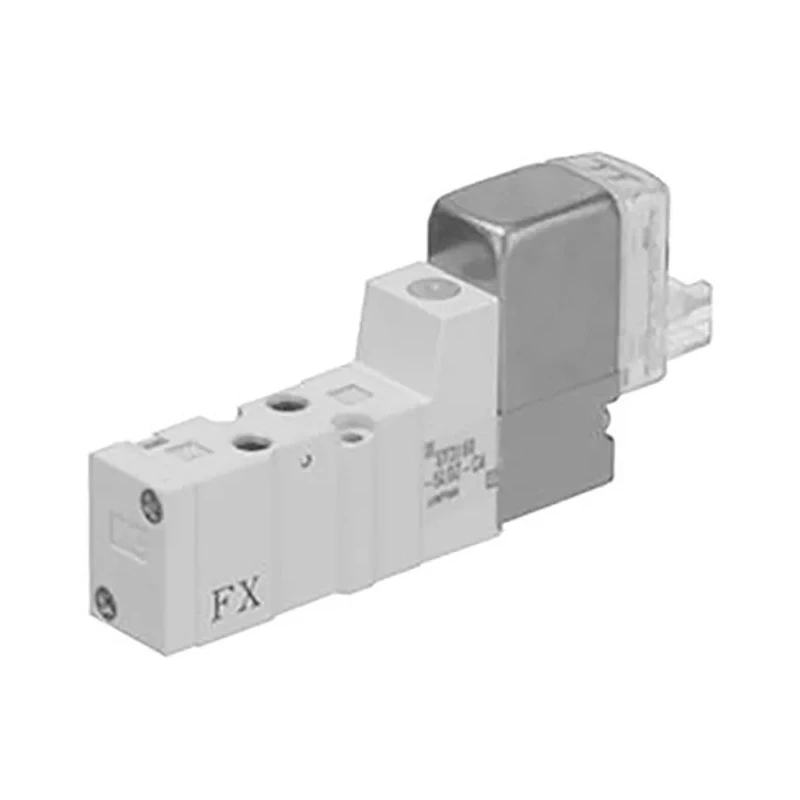

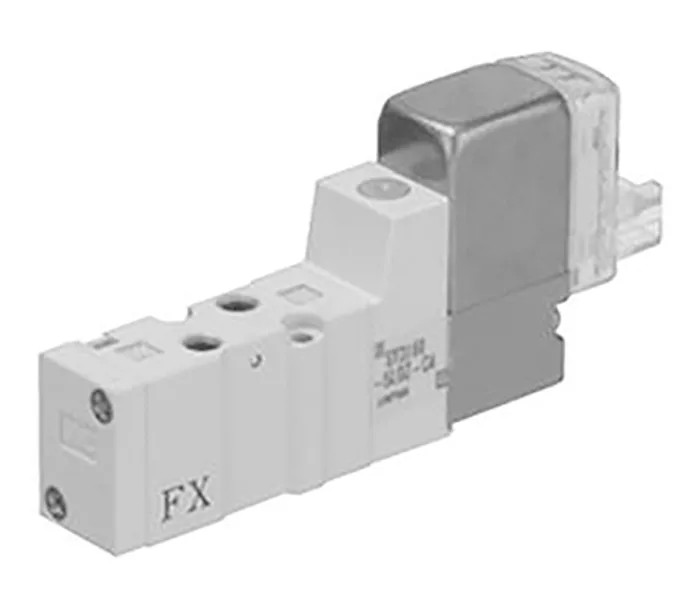

SMC Pneumatic Solenoid Valve 4/2 NC Solenoid 24V DC Die Cast Aluminium Body SYJ7000

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 4/2 NC Solenoid 24V DC Die Cast Aluminium Body SYJ7000



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Height	29mm
Length	60mm
Model	SYJ7000
Width	13mm
Mount Type	Base
Series	SYJ7000
Number Of Ports	4
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	1/8 in
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	762L/min
Standards/Approvals	RoHS
Minimum Pilot Pressure	0.15MPa
Valve Function	4/2 NC
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.35W

Key Features

This valve features a 4/2 NC valve function with two operating positions.
It operates at 24V DC voltage and consumes only 0.35W of power.
The valve body is made of durable die cast aluminium with a compact size of 60mm length and 13mm width.
It includes a base mount type and a DIN connector electrical connection for installation ease.
Designed for operating temperatures from -10°C to 50°C with rubber seals ensuring longevity.
The valve supports a maximum operating pressure of 0.7 MPa and a maximum flow rate of 762 L/min.
It has a female port gender with 1/8 inch port size and includes pilot exhaust functionality.
The valve is RoHS compliant and manufactured in Japan, assuring high quality standards.

Product Description

The SMC SYJ7000 series Pneumatic Solenoid Valve 4/2 NC Solenoid SYJ7143-5DO-Q operates at 24V DC and features a robust die cast aluminium body, suitable for industrial pneumatic control applications.

This valve delivers reliable performance with low power consumption of only 0.35W. It supports a maximum operating pressure of 0.7 MPa and a maximum flow rate of 762 L/min, making it ideal for precise fluid control in pneumatic systems.

Its compact dimensions (60mm length, 29mm height, and 13mm width) and base mount type allow for space-saving installation. The valve uses rubber seals for durability and operates effectively within temperature ranges from -10°C to 50°C.

The device has 4 ports, a valve function of 4/2 NC with 2 positions, and a female port gender measuring 1/8 inch. Electrical connection is via a DIN connector, ensuring secure and standardized interfacing.

This solenoid valve series includes a pilot exhaust and features a copper-free design to reduce corrosion. It is RoHS compliant and manufactured in Japan, ensuring strict manufacturing and safety standards are met.

This valve's low power consumption reduces engineering costs and allows for direct PLC operation. It is suitable for industrial environments such as manufacturing, automation, pneumatic tool control, and fluid power systems.

Available with a non-locking manual override, enhancing ease of use during maintenance. Compact design enables individual mounting on sub plates or configuration on base-mounted manifolds. 24V valves require an L-type connector plug for operation (sold separately).

Choose this reliable solenoid valve for efficient pneumatic system management and durability in demanding industrial processes. Explore more industrial valves and pneumatic components at EnvMart.
