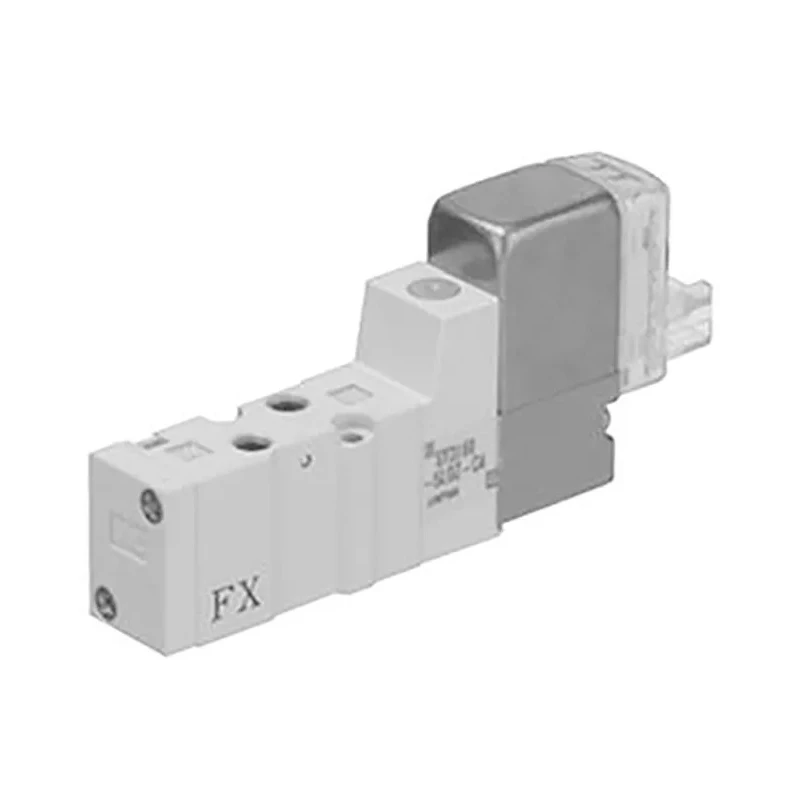

SMC Pneumatic Solenoid Valve 4/2 Solenoid SYJ3000 Series 24V DC 0.7 MPa Die Cast Zinc

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 4/2 Solenoid SYJ3000 Series 24V DC 0.7 MPa Die Cast Zinc



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	0.7 Mpa
Height	28mm
Length	64.3mm
Model	SYJ3000
Width	8.2mm
Mount Type	Base
Series	SYJ3000
Number Of Ports	4
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	M3
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	122L/min
Standards/Approvals	RoHS
Minimum Pilot Pressure	0.15MPa
Valve Function	4/2
Electrical Connection Type	L-Plug Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.35W

Key Features

Designed with a 4/2 valve function for versatile pneumatic control.
Operates at 24V DC with low power consumption of 0.35 W.
Made from die-cast zinc body providing corrosion resistance and durability.
Suitable for operating pressures up to 0.7 MPa and temperatures from -10°C to 50°C.
Base mount type for easy installation in various systems.
Equipped with female M3 ports for efficient fluid flow management.
Compact dimensions measuring 64.3mm length, 28mm height, and 8.2mm width.
Ideal for industrial automation, robotic assembly, and pneumatic system applications.

Product Description

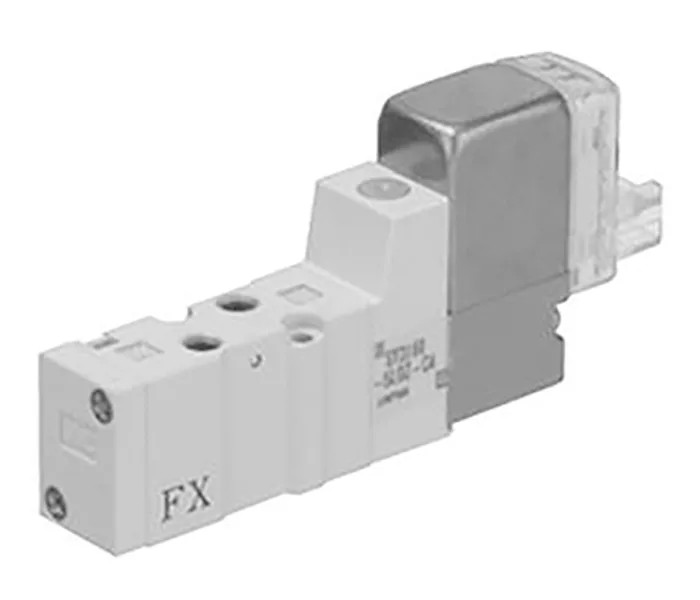

SMC SYJ3143-5LOU-Q Pneumatic Solenoid Valve 4/2 Solenoid from the SYJ3000 Series features a 24V DC solenoid actuator designed to reliably control pneumatic fluid flow in industrial environments. With a valve function of 4/2 and a compact die-cast zinc body, this valve assures durability and efficient performance in automation, manufacturing, and pneumatic systems.

This valve supports a maximum operating pressure of 0.7 MPa and a minimum pilot pressure of 0.15 MPa, offering compatibility with high-demand pneumatic applications. The operating temperature range spans from -10°C to 50°C, ensuring stable functioning in varied atmospheres.

The base mount design simplifies installation and positioning within machinery configurations. Equipped with female M3 ports, it enables smooth and controlled fluid communication. The solenoid consumes only 0.35W, contributing to energy-efficient system operations.

Manufactured with rubber seals and an L-plug type electrical connector, this valve complies with RoHS standards and is built to meet industrial safety and environmental requirements. The compact size of 64.3mm length, 28mm height, and 8.2mm width allows integration into space-constrained applications.

4/2 valve function for directional control in pneumatic systems. Die-cast zinc body material for corrosion resistance and lasting durability. Low solenoid power consumption of 0.35 W enhances energy efficiency. Fits pneumatic automation, robotic assembly, and factory air control uses.

Base mount facilitates secure and precise installation. Female port configuration with M3 size ensures effective connection.

Originating from Japan, this SMC valve is designed for industrial and automated pneumatic environments requiring reliable, efficient, and precise actuation. Discover comprehensive pneumatic valve solutions by exploring related products in the Pneumatic Solenoid Valves category at EnvMart.
