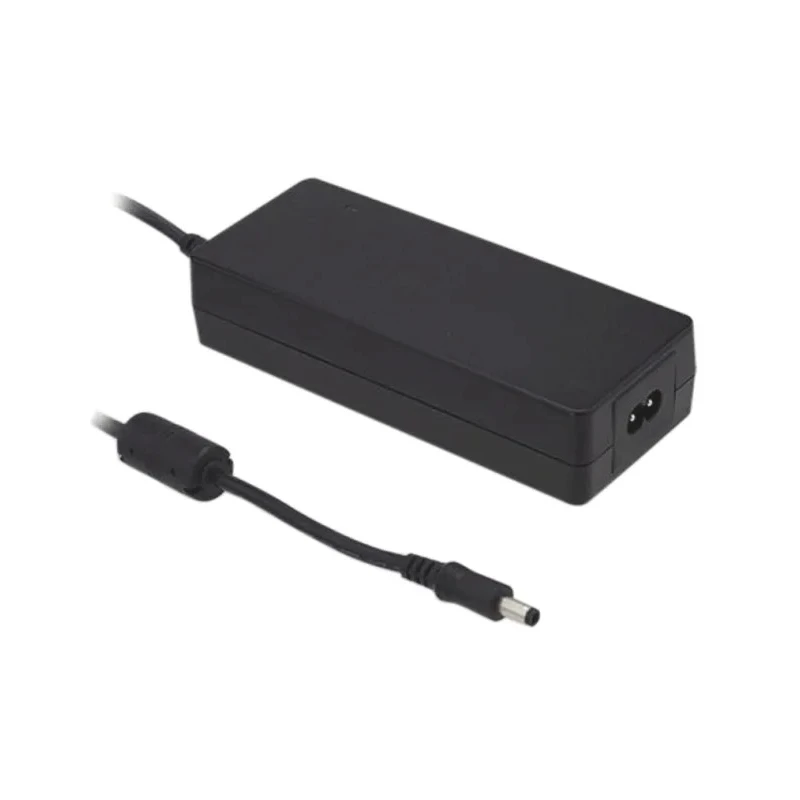

MEAN WELL AC/DC Adapter Medical Desktop Power Supply 264V ac Input 1.87 A Output 48 V dc 90W GSM90B48-P1M

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL AC/DC Adapter Medical Desktop Power Supply 264V ac Input 1.87 A Output 48 V dc 90W GSM90B48-P1M

Name: MEAN WELL AC/DC Adapter Medical Desktop Power Supply 264V ac Input 1.87 A Output 48 V dc 90W GSM90B48-P1M
Brand: MEAN WELL
SKU: 380052
Price: 20.22 USD
Availability: InStock



Category AC/DC Adapters Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	GSM90B48-P1M
Cable Length	1200mm
Overall Length	145mm
Series	GSM90
Overall Width	60mm
Maximum Operating Temperature	60°C
Maximum Input Voltage	264V ac
Protections	Overload / Over voltage / Over temperature
Maximum Output Current	1.87A
Standards/Approvals	CE, UL 60950-1, IEC 60950-1
Minimum Input Voltage	100V ac
Overall Depth	32mm
Minimum Output Voltage	48V dc
Input Connector Type	IEC 320-C8
RS PRO AC/DC AdapterBrand	RS PRO
TDK-Lambda AC/DC AdapterBrand	TDK-Lambda

Key Features

Designed for medical equipment with low leakage current below 100 µA.
ErP step 2 (Level V) compliant for high energy efficiency.
Built-in active PFC for improved power factor and lower harmonics.
Overload, over voltage, and over temperature protections for safety.
IEC 320-C8 2-pin input connector with a 1200 mm cable length.
Operating temperature range from -30 to +60°C for versatile environments.
Compact dimensions of 145×60×32 mm with a fully enclosed plastic case.
Class II power unit without earth pin, suitable for medical and home healthcare use.

Product Description

MEAN WELL GSM90B48-P1M AC/DC Adapter is a 90W ErP single output switch mode desktop power supply designed specifically for medical applications. It supports a wide AC input voltage range of 100 to 264V and delivers a regulated 48V DC output at a maximum current of 1.87 A.

This power supply achieves high energy efficiency of up to 91% and complies with Level V energy saving regulations including ErP step 2 and EISA 2007. Its low leakage current below 100 microamperes makes it ideal for patient-contact medical equipment, portable medical devices, and home healthcare systems where safety is critical.

The GSM90B series features a built-in active power factor corrector to reduce harmonic distortion and improve power quality. It offers multiple protections including overload, over voltage, and over temperature shutdown to enhance reliability and safety.

The power supply has a 2-pin IEC 320-C8 input connector with a durable 1200 mm cable and a compact, fully enclosed plastic casing measuring 145 mm in length, 60 mm in width, and 32 mm in depth. This Class II unit operates over a wide temperature range from -30°C to +60°C and does not require an earth ground pin.

Certified to meet international medical safety standards such as ANSI/AAMI ES60601-1, ES60601-1-11, TUV EN60601-1, and EN60601-1-11, it ensures compliance and peace of mind in medical and laboratory environments.

Low leakage current below 100 µA for patient safety. High 91% efficiency to minimize heat and energy use. ErP step 2 and EISA 2007 compliant for energy savings. Robust protections: overload, over voltage, temperature. IEC 320-C8 input connector with 1200 mm cable length.

Compact fully enclosed plastic case, Class II design. Wide 100-264V AC input and 48V DC output. Wide operating temperature range from -30 to +60°C. Complies with international medical standards and certifications.

This MEAN WELL AC/DC Adapter is suitable for industrial, medical, laboratory, and home healthcare applications requiring reliable, efficient, and safety-approved DC power supplies. Explore more AC/DC Adapters and power solutions at EnvMart for your technical needs.
