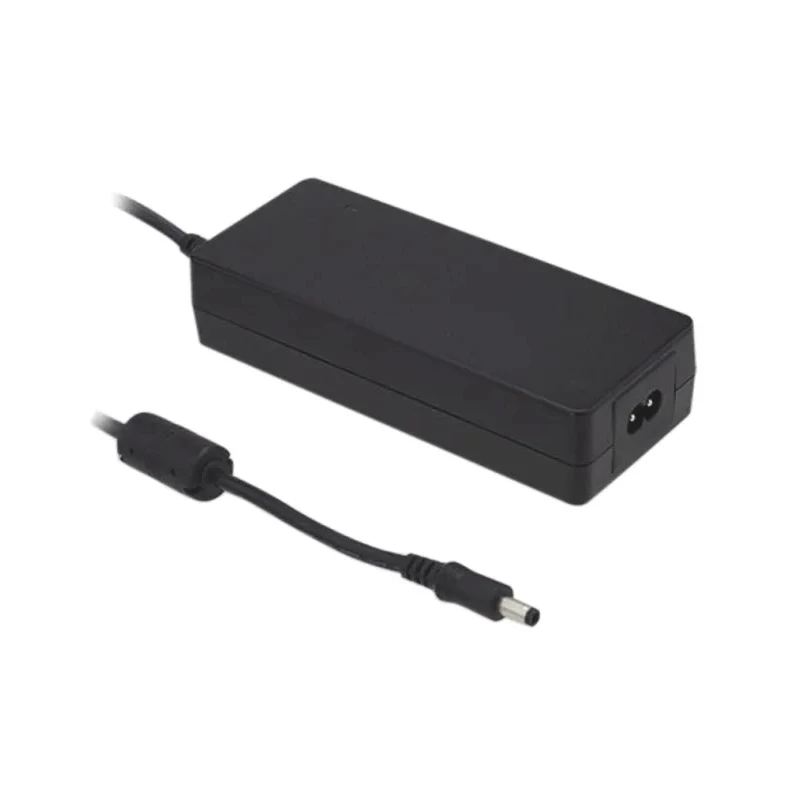

MEAN WELL 90W ErP Single Output Switch Mode Desktop Medical Power Supply 15 V 4.74 A GSM90B19-P1M
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | GSM90B19-P1M |
| Cable Length | 1200mm |
| Overall Length | 145mm |
| Series | GSM90 |
| Overall Width | 60mm |
| Maximum Operating Temperature | 60°C |
| Maximum Input Voltage | 264V ac |
| Protections | Overload / Over voltage / Over temperature |
| Maximum Output Current | 4.74A |
| Standards/Approvals | CE, IEC 60950-1, UL 60950-1 |
| Minimum Input Voltage | 100V ac |
| Overall Depth | 32mm |
| Minimum Output Voltage | 15V |
| Input Connector Type | IEC 320-C8 |
Key Features
- This adapter features medical safety approval with 2xMOPP isolation between primary and secondary.
- It delivers a low leakage current less than 100 µA for patient-contact equipment safety.
- High efficiency with 91% energy conversion meets ErP step 2 and EISA 2007 regulations.
- The adapter includes protections against overload, over voltage, and over temperature.
- It operates within a temperature range from -30°C to +60°C for reliable performance.
- The power supply incorporates a 2-pin IEC 320-C8 input connector with 1200 mm cable length.
- A fully enclosed plastic case and class II insulation make it suitable for portable medical devices.
- LED indicator signals power status for easy monitoring.
Product Description
MEAN WELL GSM90B19-P1M is a 90W ErP single output switch mode desktop power supply optimized for medical applications requiring reliable, low-leakage power.
It provides a fixed 15 V DC output voltage with a maximum output current of 4.74A and accepts input voltages from 100V to 264V AC. The unit features advanced medical safety protections including dual means of patient protection (2xMOPP), ensuring it meets stringent international medical safety standards such as ANSI/AAMI ES60601-1 and EN60601-1 series.
The adapter achieves up to 91% efficiency with low power consumption during no-load operation (.
