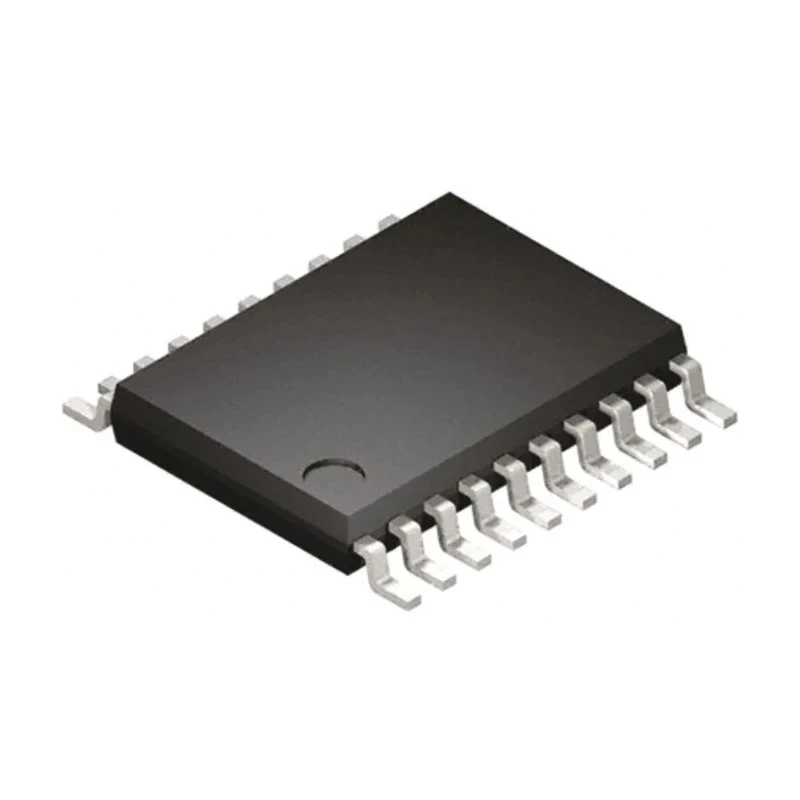

STMicroelectronics 32 bit ARM Cortex M0 Microcontroller , 48 MHz, 16kB FLASH, 4kB RAM, 20-Pin TSSOP STM32F030F4P6TR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 32 bit ARM Cortex M0 Microcontroller , 48 MHz, 16kB FLASH, 4kB RAM, 20-Pin TSSOP STM32F030F4P6TR

Name: STMicroelectronics 32 bit ARM Cortex M0 Microcontroller , 48 MHz, 16kB FLASH, 4kB RAM, 20-Pin TSSOP STM32F030F4P6TR
Brand: STMicroelectronics
SKU: 379726
Price: 1.67 USD
Availability: InStock



Category Microcontroller Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Frequency	48 MHz CPU
Brand	STMicroelectronics
Height	1.05mm
Temperature range	-40 to +85 °C
Length	6.6mm
Model	STM32F030F4P6TR
Width	4.5mm
Mount Type	Surface
Series	STM32F0
Maximum Operating Temperature	85°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Ram size	4kB
Flash Memory	up to 64 Kbytes
Standards/Approvals	FBI
Pin Count	20
Maximum Supply Voltage	3.6V
Maximum Power Dissipation Pd	263mW
Minimum Supply Voltage	2.4V
Device Core	ARM Cortex M0
Program Memory Size	16kB
Maximum Clock Frequency	48MHz
Number of Timers	2
Instruction Set Architecture	RISC
ADCs	11 x 12 Bit
Program Memory Type	FLASH
SRAM	up to 8 Kbytes

Key Features

This microcontroller operates at 48 MHz CPU frequency.
Features 16kB of FLASH program memory and 4kB SRAM for efficient processing.
Supports I2C, SPI, USART communication interfaces for versatile connectivity.
Includes 11 ADC channels with 12-bit resolution and 2 16-bit timers.
Designed for low power applications with operating voltage range of 2.4 to 3.6 V.
Operates reliably within temperature range from -40°C to +85°C.
Surface mount type packaged in a 20-pin TSSOP format measuring 6.6 x 4.5 x 1.05 mm.

Product Description

STMicroelectronics STM32F030F4P6TR is a 32 bit ARM Cortex M0 microcontroller designed for embedded applications requiring efficient processing power and low power consumption. Featuring a 48 MHz ARM Cortex M0 CPU, it provides up to 16kB FLASH program memory and 4kB SRAM, well-suited for a variety of control and interface applications.

This microcontroller supports several communication interfaces including I2C, SPI, and USART to enable flexible system integration. Its analog peripherals include 11 channels of 12-bit ADC for high-precision signal acquisition. Dual 16-bit timers and an advanced control PWM timer enhance timing and control capabilities.

The device operates on a voltage range between 2.4 V and 3.6 V, making it compatible with typical embedded power supplies. It is rated for operation in industrial temperature ranges from -40°C up to +85°C, ensuring durability in harsh environments.

Packaged in a compact 20-pin TSSOP surface mount form factor with dimensions 6.6 mm (L) x 4.5 mm (W) x 1.05 mm (H), this MCU is ideal for space-constrained designs. Typical applications include consumer electronics, user interface controls, handheld devices, A/V receivers, gaming consoles, printers, alarm systems, and HVAC systems where embedded control and processing are critical.

This microcontroller operates at 48 MHz CPU frequency. Features 16kB of FLASH memory and 4kB SRAM. Includes comprehensive communication interfaces: I2C, SPI, USART. Offers 11 ADC channels with 12-bit resolution for precise analog input.

Designed for low power consumption within 2.4 to 3.6 V supply voltage range. Supports industrial temperature range and surface mount package. Compact 20-Pin TSSOP package suitable for embedded applications requiring small footprint.

STMicroelectronics continues to provide robust and flexible microcontroller solutions through the STM32F0 series, enabling designers to build efficient, low power, and cost-effective embedded systems.
