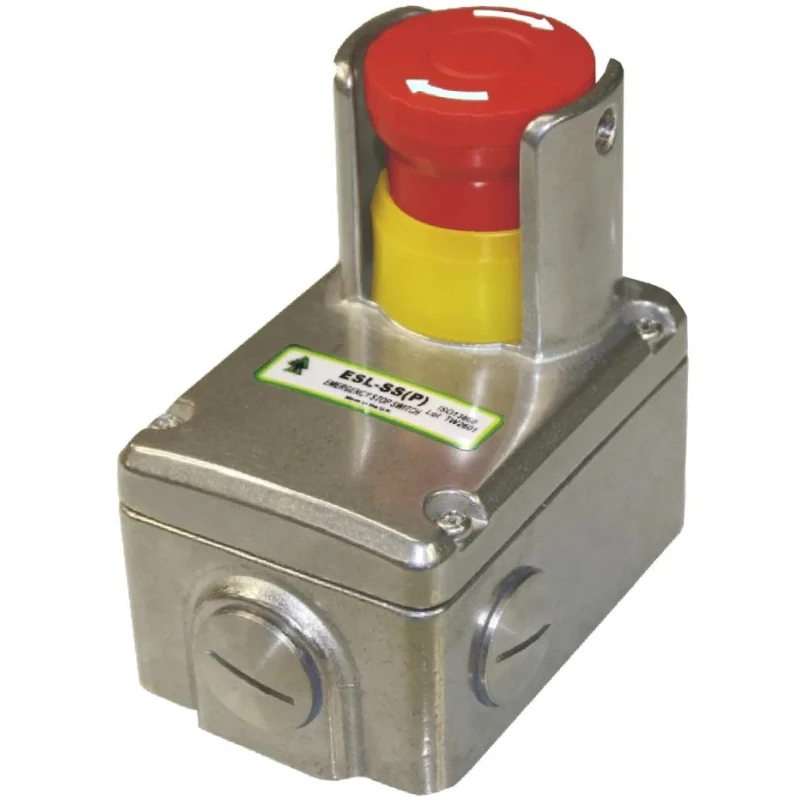

IDEM ESL Series Twist Release Emergency Stop Push Button, Surface Mount, 2 NC/2 NO, IP69K, IP67 232010

IDEM 232010 Emergency Stop Push Button is a surface mount safety switch designed to provide dependable emergency stop protection for machinery and exposed conveyors in industrial settings. Featuring a robust stainless steel 316 housing, this push button is rated IP69K and IP67, ensuring resistance against dust, immersion, and high-pressure water jets even at 80°C with detergent.

The unit incorporates 2 normally closed (NC) and 2 normally open (NO) contacts with double break switch configuration for enhanced safety and reliable operation. It features a 40 mm plastic mushroom push button with twist release actuation designed for quick reset during emergency situations. The button's unique lid safety trip mechanism means the safety contacts open if the lid is removed, providing additional protection during maintenance.

The ergonomic round head push button is non-illuminated and connected via clamp terminals designed for conductors up to 2.5 mm². This device functions safely within an operating temperature range of -25°C to +80°C. Electrical insulation is ensured with a withstand voltage (Uimp) of 2500V.

This emergency stop switch has been certified to comply with multiple international safety standards including EN1088, IEC60947-5-5, EN60204-1, ISO 13849-1, EN 954-1, EN 62061, and EN ISO 13850. It is ideally used in industrial, manufacturing, conveyor, and automation environments where high ingress protection and robust safety mechanisms are critical.

Maintenance recommendations include weekly verification of control circuit functions and button condition, and a six-month detailed inspection including terminal tightness and moisture ingress. The red mushroom push button is reset by a simple twist action ensuring ease of use and reliable emergency intervention.

Features a stainless steel 316 IP69K/IP67 housing for durability and high pressure water resistance. Includes 2 NC/2 NO contacts with double break design for reliable emergency stop operation. Non-illuminated 40 mm plastic mushroom push button with twist release reset mechanism.

Equipped with clamp terminal connection for conductors up to 2.5 mm². Complies with EN1088, IEC60947-5-5, EN60204-1, ISO 13849-1, EN 954-1, EN 62061, and EN ISO 13850 standards. Operating temperature range from -25°C to +80°C suitable for varied industrial environments.

Special lid safety trip mechanism to open contacts if the lid is removed for maintenance safety. Withstand voltage rating of 2500V ensures electrical insulation reliability.

This IDEM ESL series Emergency Stop Push Button is engineered for demanding industrial and manufacturing applications requiring robust safety controls in harsh environmental conditions. Explore more emergency stop switch solutions and safety components at EnvMart to support your operational safety requirements.
