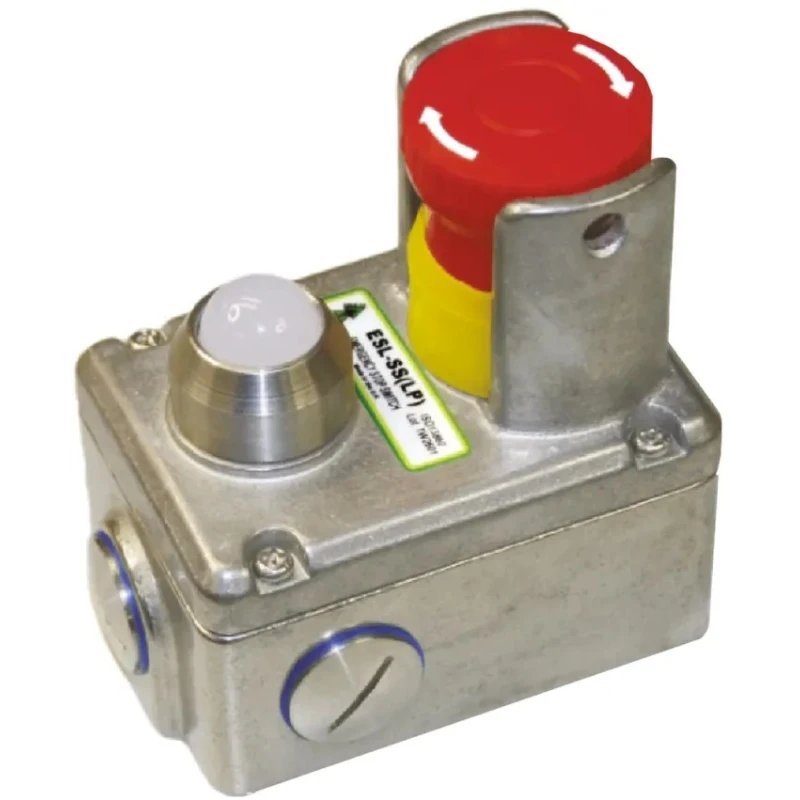

IDEM ESL Series Twist Release Illuminated Emergency Stop Push Button Surface Mount 2 NC/2 NO IP67 IP69K 232023-A

IDEM 232023-A ESL Series Twist Release Illuminated Emergency Stop Push Button is a high-quality surface mount safety switch designed for critical emergency stop protection in industrial and manufacturing settings.

This push button features a 40 mm red plastic mushroom head actuator with twist release operation, ensuring quick and secure reset after actuation. The stainless steel housing (grade 316) is robust and corrosion-resistant, engineered to meet stringent ingress protection standards IP67 and IP69K, making it suitable for environments exposed to dust, water immersion, and high pressure hosing including detergent cleaning at temperatures up to 80°C.

The switch contains 2 normally closed (NC) and 2 normally open (NO) contacts with a double break mechanism to enhance reliability and safety of the control circuit. It is rated for 24V dc contact voltage and 240V ac with a current rating of 6 amps, suitable for a wide range of control applications. The clamp terminal ensures secure wiring connections, with a conductor size limit up to 2.5 mm². The operating temperature range extends from -25°C to +80°C, suitable for diverse industrial climates.

Designed to comply with IEC 60947-5-5, EN ISO 13850, EN 954-1, and other international safety standards, this emergency stop push button provides dependable operator safety by facilitating an immediate stop of moving machinery or conveyor systems. The illumination feature improves visibility for operators in low-light or critical environments.

Additional practical features include a special safety trip mechanism that opens contacts if the push button lid is removed and a padlockable shroud enabling lock-off during maintenance periods to prevent accidental restart. The device requires a twist to reset, providing a positive indication of safety status.

This product is ideally suited for automation, manufacturing, processing plants, and conveyor safety systems where robust emergency stop capability and environmental resistance are paramount. Its surface mount form factor allows straightforward installation in control panels or machinery control stations.

Constructed with stainless steel 316 housing rated IP67, IP69K for dust and water ingress protection. Twist release, illuminated red mushroom operator head made from durable plastic for clear visibility. 2 NC, 2 NO contacts with double break switch configuration rated 24V dc / 240V ac and 6A current.

Clamp terminal connection supports conductors up to 2.5 mm². Operating temperature range -25°C to +80°C. Meets IEC 60947-5-5, EN ISO 13850, EN 954-1, ISO 13849-1 safety standards. Designed for industrial automation, manufacturing, and conveyor emergency stop applications.

Includes safety trip mechanism and lock-off enabled shroud for maintenance lockout.
