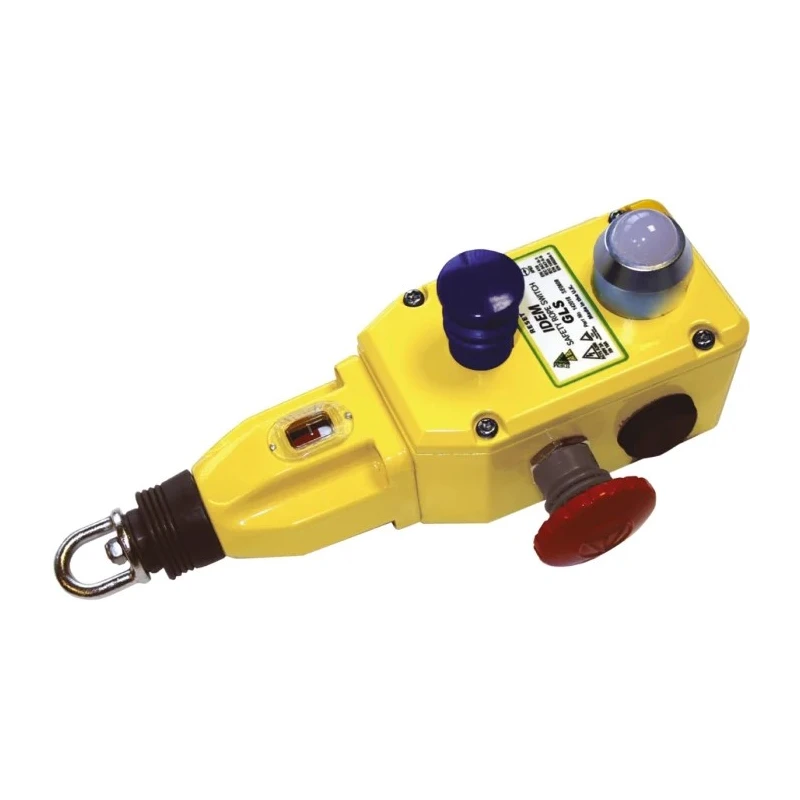

IDEM GLS Rope Pull Switch 239 mm, Straight Mounting, 2 NO/2 NC Contacts, IP67, Die Cast Aluminium Housing 142064

The IDEM 142064 GLS Rope Pull Switch is engineered for dependable industrial and automation safety applications. Featuring a straight mounting orientation and 239 mm length, this switch offers a rugged solution with a die cast aluminium housing designed to withstand demanding environments. It is IP67 rated, ensuring protection against dust and immersion, making it suitable for harsh factory and manufacturing conditions.

This rope pull switch incorporates 2 normally open (NO) and 2 normally closed (NC) contacts to provide sophisticated emergency stop signaling. It is equipped with multiple LED indicators capable of steady and flashing green and red lights for clear status indication at all times.

Operation temperatures range from -25°C to 80°C, allowing usage in diverse climates. The device includes a blue reset button compliant with ISO 13850, allowing the switch to be mechanically latched upon actuation, requiring manual reset after an emergency stop. The switch can be used in applications covering up to 60 meters of rope length with a single switch, or up to 80 meters with two switches.

With four M20 conduit cable entries, wiring installation is flexible and protected. The internal hardware uses stainless steel screws and has a robust design with integral sealing bellows to allow high-pressure hosing during cleaning processes.

These Rope Pull Switches comply with IEC 60947-5-1, IEC 60947-5-5, EN 954-1, ISO 13850, and ISO 13849-1 standards, offering end users safety monitoring up to Category 4 or Performance Level e (PLe) when used with safety monitoring relays. The switch is manufactured in the United Kingdom and is ideal for industrial automation, manufacturing, conveyor safety, and general machinery emergency stop applications.

Constructed with robust die cast aluminium housing for durability. Provides IP67 rated protection for harsh industrial environments. Equipped with LED indicators including steady and flashing green and red signals. Features a blue reset button compliant with ISO 13850 standards.

Capable of operating in temperatures from -25°C to 80°C. Suitable for mounting on machines and conveyor sections lacking guards. Includes 4 cable entries with M20 conduit size for flexible wiring. Mechanical life expectancy of 1,500,000 operations ensures longevity.

Designed to cover rope lengths up to 80 meters with multiple switches. Works as a positive break emergency stop device monitored for up to Category 4 safety standards. Explore the range of IDEM industrial safety switches and rope pull devices in EnvMart for enhanced automation safety solutions.
