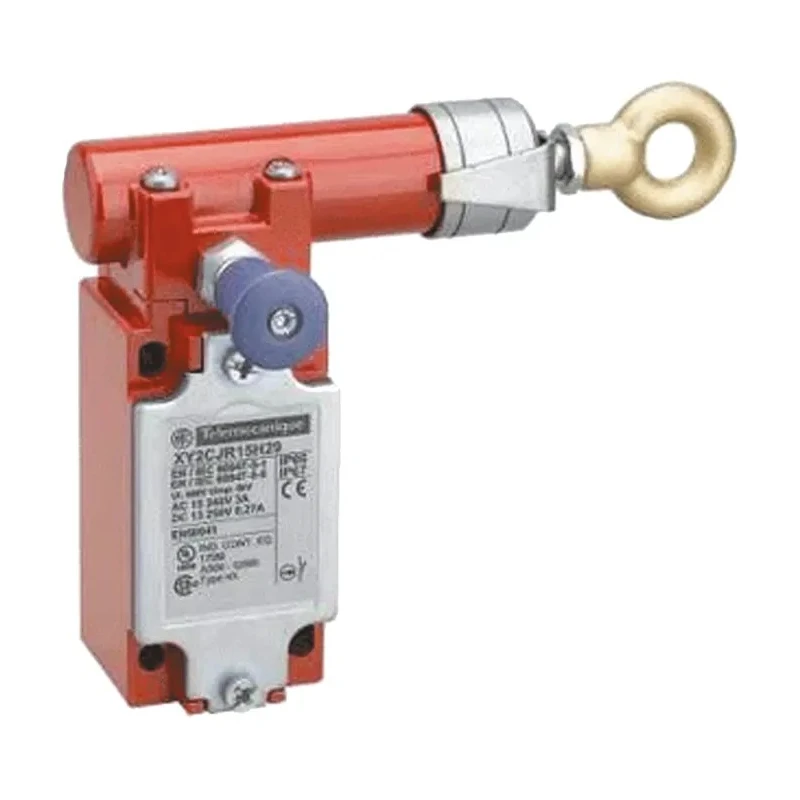

Telemecanique Sensors Rope Pull Switch 158 mm, Right Side, 2 NC XY2CJ

The Telemecanique Sensors XY2CJ Rope Pull Switch 158 mm model is a robust emergency stop device designed for industrial safety applications. It features a right-side mounting orientation with 2 normally closed contacts (2 NC) and is engineered for reliable operation under challenging environmental conditions.

This rope pull switch is equipped with multiple indicators including a mechanical indicator, pilot light, and cable tension indicator, providing operators with clear visual confirmation of the switch status. It offers IP66 and IP67 ingress protection ratings, making it suitable for harsh environments with dust and water exposure. The switch body is constructed from a combination of polyamide, zinc plated steel, stainless steel, and zamak, ensuring long-lasting durability.

The device includes three cable entries with an M20 conduit entry size, facilitating flexible and secure electrical connections. It is designed to operate efficiently within an ambient temperature range of -25°C to 70°C, supporting contact voltages up to 250V DC and 240V AC with a maximum current of 3A. Safety features include an integrated reset button and an emergency stop (E-Stop) button to quickly halt machinery when needed.

Typical industrial use cases for the XY2CJ rope pull switch include safeguarding conveyor systems, woodworking machines, shears, rolling mills, textile machines, paint shops, and surface treatment works. The compact form factor with dimensions of 158 mm length, 64.2 mm width, and 109 mm depth enables easy integration into existing setups.

Certified to IEC 60947-5-5 and UL NiSD standards, the XY2CJ switch supports industrial automation and safety requirements with reliable performance and straightforward installation. The product is manufactured in Indonesia, ensuring quality manufacturing standards.

Mounting orientation: right side for versatile installation. Mechanical indicator, pilot light, and cable tension indicator for status monitoring. 2 NC contact configuration for reliable safety switching. IP66 and IP67 rated for robust environmental protection.

Three cable entries with M20 conduit size allow flexible wiring. Operating temperature range from -25°C to 70°C suits industrial environments. Supports contact voltages up to 250V DC and 240V AC with 3A current rating. Durable polyamide, zinc plated steel, stainless steel, and zamak construction.

Includes reset button and emergency stop button for enhanced safety. Compact dimensions facilitate installation in various industrial applications. Explore the full range of Rope Pull Switches and industrial control components at EnvMart for your safety and automation needs.
