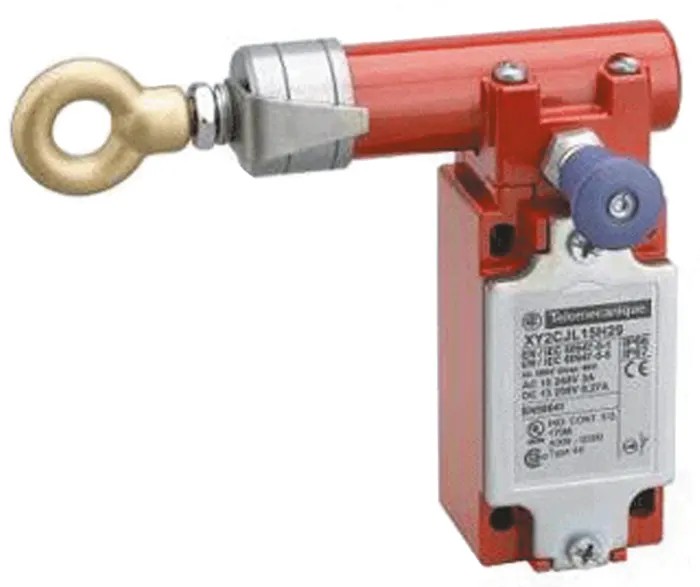

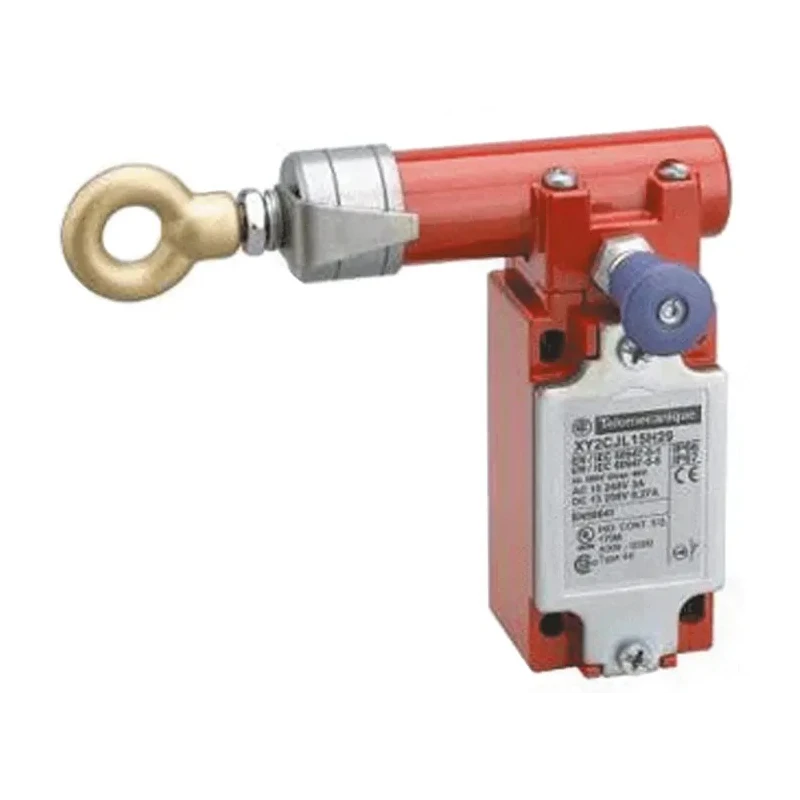

Telemecanique Sensors Rope Pull Switch, 158 mm Length, Left Side Mounting, 1 NO/1 NC Contact Configuration, IP66/IP67 XY2CJ

Telemecanique Sensors XY2CJ Rope Pull Switch is a high-quality, industrial-grade emergency stop device designed for safety applications in manufacturing, conveyor systems, woodworking machines, printing, textile, rolling mills, paint shops, and surface treatment workplaces. This model features a left side mounting orientation, a 158 mm length, and a 1 NO/1 NC contact configuration, providing dependable mechanical safety control.

The switch has an IP66 and IP67 protection rating, making it dust-tight and water resistant, suitable for harsh and demanding industrial environments. It is rated for contact AC voltages up to 240V and DC voltages up to 250V, with operation in a temperature range from -25°C to a maximum of 70°C, ensuring performance reliability across various climatic conditions.

The XY2CJ series includes a four-position turret head that rotates in 90° increments, facilitating flexible installation configurations. Additionally, an embedded safety spring maintains operation in case of spring damage. The device allows for fast mounting and wire adjustment via a tensioner accessory. The pull reset button features color-coded sections (green and yellow) which provide an immediate, easy visual check of the switch status to promote quick machine restart procedures.

Cable lengths can extend up to 20m for the XY2CJS or up to 30m for the XY2CJL and XY2CJRF versions. The device complies with IEC 60947-5-5 standards and is UL certified, ensuring industrial safety and quality. It is manufactured in Indonesia and designed to enhance worker safety and machine protection effectively.

Reliable emergency stop switch with 1 NO/1 NC contacts. Durable IP66/IP67-rated enclosure for harsh environments. Left side mounting for installation flexibility. Operates between -25°C and 70°C for wide application ranges.

Rotatable turret head allows multiple installation options. Embedded safety spring ensures functionality under damage. Visual status indicators to facilitate machine restart checking. Supports cable lengths up to 30 meters depending on model variant.

Certified to IEC 60947-5-5 and UL standards.

Telemecanique Sensors XY2CJ Rope Pull Switches are ideal for industrial automation safety, including applications in manufacturing, testing laboratories, and surface treatment facilities. This reliable safety switch helps protect operators and machinery by providing a robust emergency stop mechanism.
