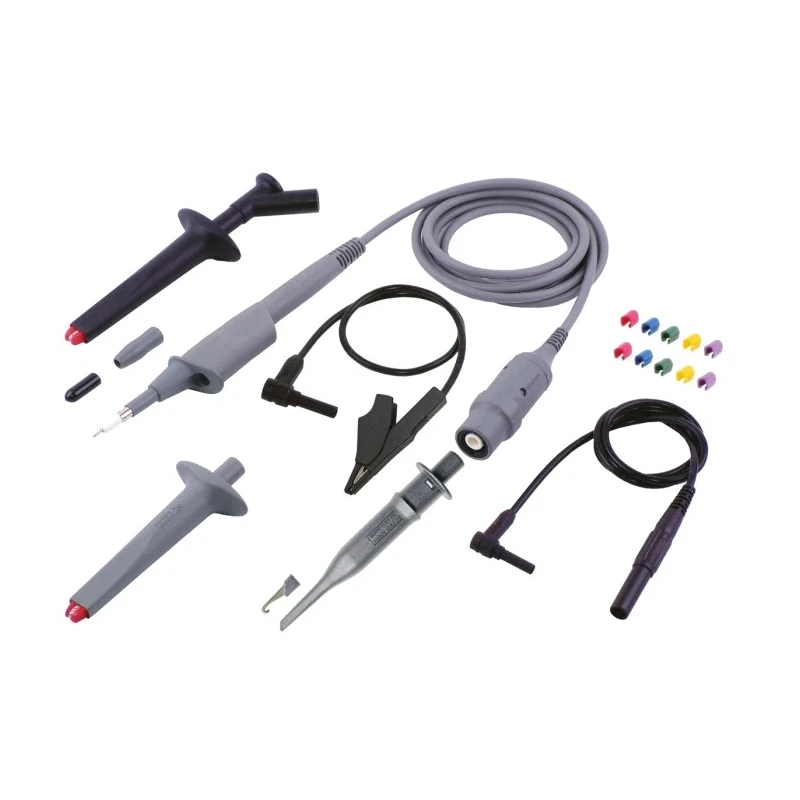

Staubli Oscilloscope Probe Voltage Type 300 MHz Bandwidth 10:1 Attenuation BNC Connector 68.9557-28

Staubli 68.9557-28 Oscilloscope Probe is a precision test probe designed for voltage measurement with a bandwidth of 300 MHz and attenuation ratio of 10:1. This probe forms part of the Isoprobe III series and is tailored for high-frequency test and measurement applications.

The probe features a highly flexible PVC insulated coaxial cable terminating in a BNC connector with an integrated compensation unit. The 2 mm safety socket allows for secure reference lead connection directly in the probe handling area, facilitating reliable measurements even over long distances.

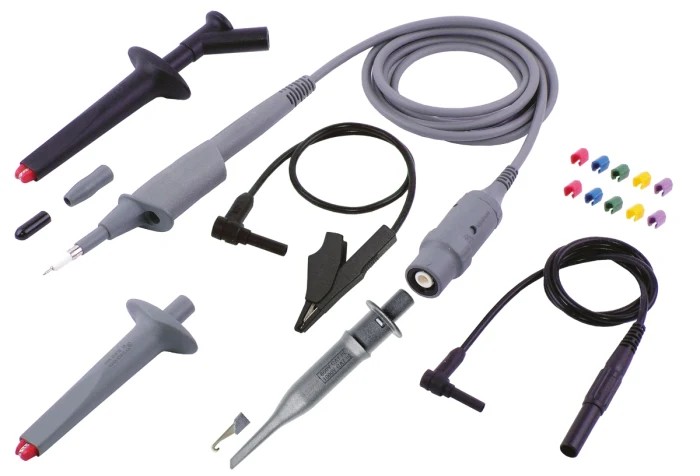

The set includes a comprehensive assortment of accessories such as an insulating sleeve, hook clip, and a test clip with steel jaws. These accessories provide versatility and secure attachment points for various measurement scenarios.

Rated for a maximum common mode input voltage up to 1 kV, this probe meets CAT III 1000 V and CAT IV 600 V safety standards ensuring operator and equipment safety in demanding environments.

With an input capacitance of 13.5 pF and input resistance of 10 MΩ, it delivers accurate measurements while maintaining signal integrity. The 120 cm lead length allows comfortable positioning of test equipment relative to the device under test.

This Oscilloscope Probe is ideal for industrial, laboratory, and electronics development uses where precise voltage measurement and high bandwidth are required. The German-manufactured product adheres to CE and UL standards, ensuring high quality and reliability.

Isoprobe III 10:1 300 MHz test probe set designed for high frequency signal measurements. Equipped with a highly flexible PVC insulated coaxial lead and BNC plug for secure connectivity. Includes comprehensive accessories: insulating sleeve, hook clip, test clip with steel jaws, and more.

Rated for 1000 V CAT III and 600 V CAT IV safety levels, enhancing operational safety. Input capacitance of 13.5 pF and input resistance of 10 MΩ for accurate, stable readings. 120 cm lead length suitable for bridging long distances between instruments and tested items.

Built for professional and industrial applications requiring precise voltage probing. For reliable oscilloscope probing solutions, explore more from Staubli and other top brands at EnvMart.
