Skyworks Solutions Inc 3-Channel Digital Isolator 1 Mbps 2.5 kVrms 5.5V 16-Pin SOIC Si8630AB-B-IS1

Skyworks Solutions Inc Si8630AB-B-IS1 is a high-performance 3-channel digital isolator IC designed for reliable isolation in electronic systems. Supporting a maximum data rate of 1 Mbps and providing a robust isolation voltage of 2.5 kVrms, this device ensures safe and efficient digital communication between separate voltage domains.

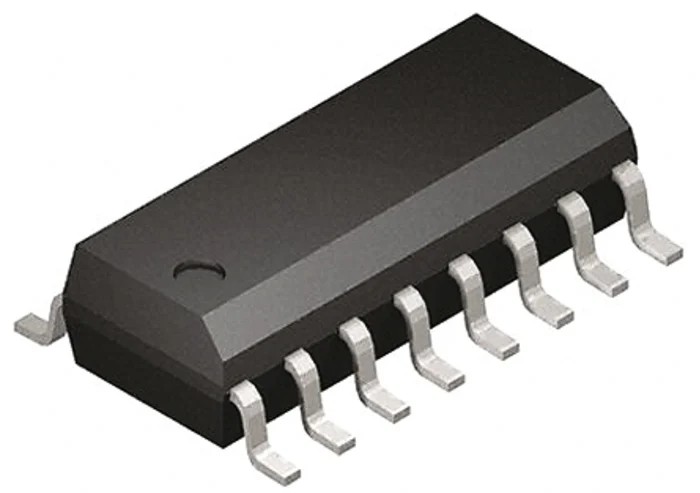

This isolator features a 16-pin SOIC surface-mount package measuring 9.9 mm in length, 3.9 mm in width, and 1.25 mm in depth, facilitating compact PCB layouts. It operates on a 5.5 V supply voltage with low power dissipation of 415 mW and a fast propagation delay of 35 ns, suitable for timing-sensitive applications.

The wide operating temperature range from -40°C to 125°C, combined with AEC-Q100 automotive qualification and certifications including CSA, UL, and IEC standards, assures high reliability and compliance in demanding industrial and automotive environments.

Supports 3 channels for digital isolation applications. Low propagation delay time of 35 ns ensures minimal signal latency. Surface mount SOIC package with 16 pins enables easy PCB integration. Power dissipation of 415 mW minimizes thermal load.

Automotive standard AEC-Q100 certified for enhanced durability. Wide ambient temperature range from -40°C to 125°C allows operation in varied conditions. Isolation voltage rating of 2.5 kVrms provides effective insulation.

Compliance with CSA, UL, and IEC standards guarantees safety.

This Digital Isolator is ideal for industrial automation, automotive systems, instrumentation, and electronic equipment requiring precise digital signal isolation to prevent ground loops and electrical noise. By separating the input and output circuits, it enhances system reliability and noise immunity.
