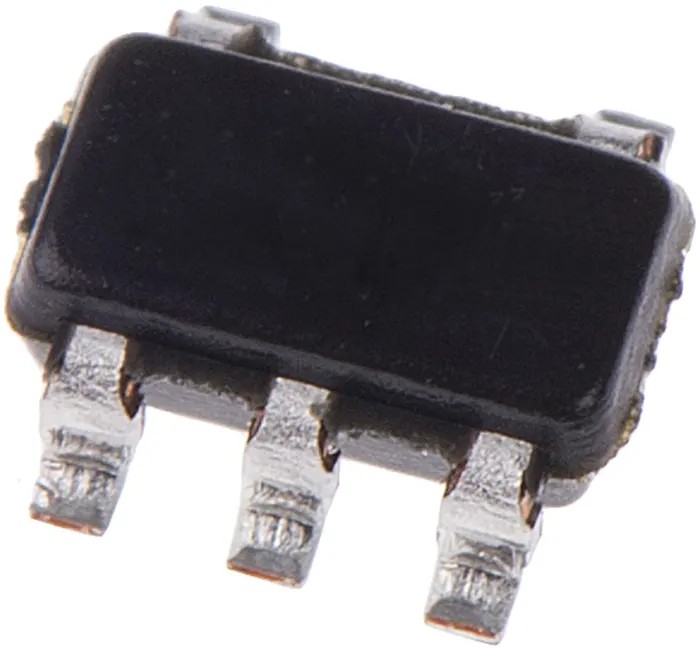

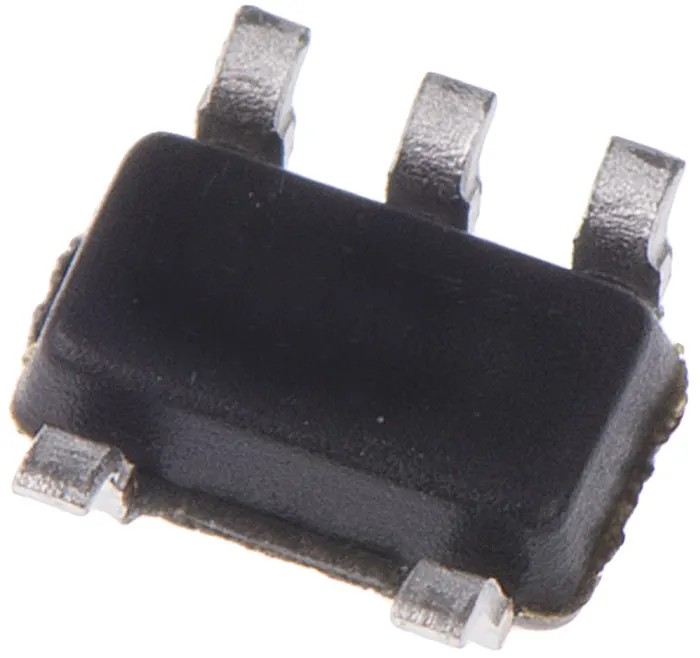

Microchip 1 kB Serial EEPROM 5-Pin SOT-23 Surface Mount 2.5-5.5V 400kHz 24LC01BT-E/OT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.45mm |
| Length | 2.9mm |
| Model | 24LC01BT-E/OT |
| Width | 2.8mm |
| Mount Type | Surface |
| Series | 24LC01B |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Memory size | 1kB |
| Interface Type | Serial-I2C |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 3mA |
| Maximum Clock Frequency | 400kHz |
| Organisation | 1K x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 1000ns |
| Number of Words | 128 |
Key Features
- This EEPROM offers 1 kB memory size organized in 128 words of 8 bits each.
- It uses a Serial-I2C interface facilitating ease of communication.
- The device supports automotive standard AEC-Q100 ensuring reliability in automotive environments.
- Operating temperature range extends from -40°C to +125°C for broad environmental tolerance.
- Features a maximum random access time of 1000 ns enabling quick read/write operations.
- The small form factor measures 2.9 mm in length, 2.8 mm in width, and 1.45 mm in height.
- Low supply current of 3 mA helps reduce power consumption in embedded systems.
- Data retention capability is rated for 200 years, ensuring long-term data stability.
Product Description
Microchip 24LC01BT-E/OT is a high-quality 1 kB Serial EEPROM designed for reliable data storage with a compact 5-pin SOT-23 surface mount package. Operating with a supply voltage ranging from 2.5 V to 5.5 V, this device supports a maximum clock frequency of 400 kHz, which enables efficient serial communication via the I2C protocol.
This EEPROM memory is organized as 128 words with 8-bit data per word, making it suitable for a variety of embedded industrial, automotive, and commercial electronics applications. It complies with the automotive standard AEC-Q100, ensuring durability and performance in demanding automotive environments. The device operates over a broad temperature range from -40°C to 125°C, allowing it to function in harsh conditions.
Its form factor dimensions (2.9 mm length, 2.8 mm width, and 1.45 mm height) and surface mount type package allow for space-saving PCB designs. The low supply current of 3 mA aids in power efficiency while the data retention period of 200 years guarantees long-term storage without data corruption.
The maximum random access time of 1000 ns allows for quick access to data, beneficial in time-sensitive applications. This EEPROM is ideal for use in industrial control systems, automotive electronics, consumer electronics, and other areas requiring non-volatile memory with robust specifications.
This EEPROM offers 1 kB memory size organized in 128 words of 8 bits each. It uses a Serial-I2C interface facilitating ease of communication. The device supports automotive standard AEC-Q100 ensuring reliability in automotive environments.
Operating temperature range extends from -40°C to +125°C for broad environmental tolerance. Features a maximum random access time of 1000 ns enabling quick read/write operations. The small form factor measures 2.9 mm in length, 2.8 mm in width, and 1.45 mm in height.
Low supply current of 3 mA helps reduce power consumption in embedded systems. Data retention capability is rated for 200 years, ensuring long-term data stability. It is surface mount type, suitable for compact PCB designs.
The device is compatible with a wide voltage range from 2.5 V minimum to 5.5 V maximum supply voltage. Explore more Microchip EEPROM and semiconductor products on EnvMart for high-quality industrial electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EEPROM offers a memory size of 1 kB, organized as 128 words of 8 bits each.
It operates over a temperature range from -40°C to 125°C, making it suitable for harsh environments.
This model supports a maximum clock frequency of 400 kHz, facilitating efficient communication.
It utilizes a Serial-I2C interface for communication, which is common in embedded systems.
The dimensions of this model are 2.9 mm in length, 2.8 mm in width, and 1.45 mm in height.
The device operates with a supply voltage ranging from 2.5 V to 5.5 V.
The maximum random access time is rated at 1000 ns, allowing for quick read and write operations.
It complies with the automotive standard AEC-Q100, ensuring reliability in automotive applications.
The supply current is rated at 3 mA, which helps in reducing power consumption.
The data retention capability is rated for 200 years, ensuring long-term stability of stored data.
It comes in a 5-pin SOT-23 surface mount package, suitable for compact PCB designs.
Each word in this EEPROM consists of 8 bits, organized into 128 words.
