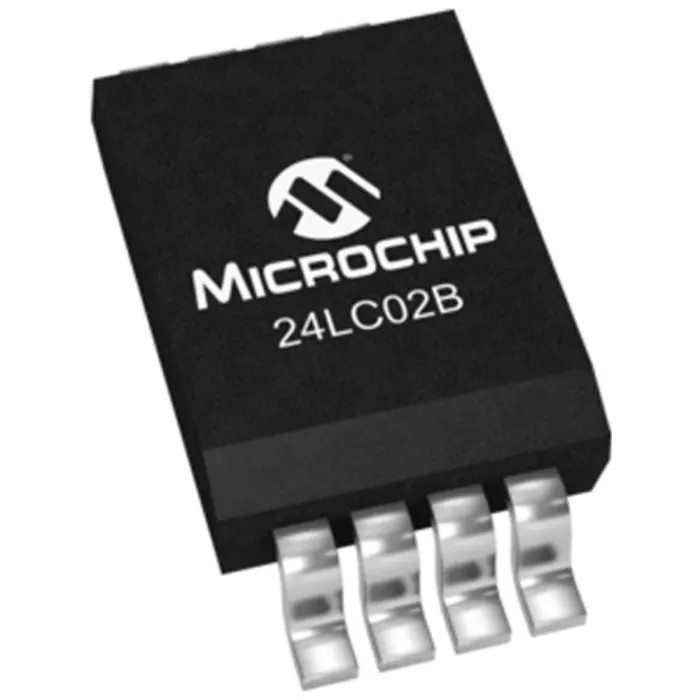

Microchip 2 kB Serial EEPROM 8-Pin SOIC Serial-I2C 400 kHz Clock 24LC02BT-I/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.75mm |
| Length | 4.9mm |
| Model | 24LC02BT-I/SN |
| Width | 6mm |
| Mount Type | Surface |
| Series | 24LC02B |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Memory size | 2kB |
| Interface Type | Serial-I2C |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 3mA |
| Maximum Clock Frequency | 400kHz |
| Organisation | 256 x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 1000ns |
| Number of Words | 256 |
| Microchip 24LC02B-I/SN, 2 kB Serial EEPROM, 900 ns 8-Pin SOIC Serial-I2CBrand | Microchip |
Key Features
- Provides 2 kB of memory organized as 256 words of 8 bits each.
- Operates with a supply voltage range of 2.5V to 5.5V.
- Supports maximum clock frequencies up to 400 kHz for fast serial communications.
- Designed with low power CMOS technology with typical read current of 1 mA and standby current under 1 μA.
- Offers data retention exceeding 200 years and supports over one million erase/write cycles.
- Temperature range from -40°C to 85°C enables robust industrial and automotive applications.
- Complies with automotive standard AEC-Q100 for enhanced reliability.
- Features hardware write-protect and ESD protection exceeding 4000V for device safety.
Product Description
Microchip 24LC02BT-I/SN is a 2 kB Serial EEPROM housed in an 8-pin SOIC package, suitable for various industrial, automotive, and embedded applications requiring non-volatile memory storage with I2C serial interface compatibility. Operating at a maximum clock frequency of 400 kHz, it balances speed with low-power consumption due to advanced CMOS technology. The EEPROM supports a wide voltage range from 2.5V to 5.5V, enabling compatibility with diverse power sources.
This device offers memory organized as 256 words, each 8 bits wide, and features a self-timed erase/write cycle with a typical 3 ms page write time. Data retention is guaranteed for over 200 years, with an endurance rating exceeding one million erase/write cycles, ensuring long-term reliability.
The operating temperature range spans from -40°C to 85°C, qualifying it for use in demanding environments including automotive applications compliant with the AEC-Q100 standard. Protection features include hardware write-protection for secure data storage and ESD robustness greater than 4000V, safeguarding against electrostatic discharge damage.
With compact physical dimensions (4.9 mm length, 6 mm width, and 1.75 mm height), it is ideal for space-constrained PCB designs. The 2-wire I2C compatible interface includes Schmitt trigger inputs to suppress noise and output slope control to minimize ground bounce.
This EEPROM series supports a 3 mA supply current and maximum random access time of 1000 ns, suitable for efficient memory access in embedded systems. Its reliable performance and comprehensive feature set make it a preferred choice for applications in industrial automation, automotive electronics, data logging, and communication systems.
Provides reliable long-term data retention and high endurance for firmware and configuration storage. Low standby current improves energy efficiency in battery-powered devices. Compact SOIC package facilitates easy surface mounting and integration.
Compatible with standard I2C protocols supporting 100 kHz and 400 kHz clock modes. Robust design ensures operation under harsh temperature and automotive standards. Explore additional Microchip EEPROM products with similar or enhanced speed and capacity specifications in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides 2 kB of memory organized as 256 words of 8 bits each.
The maximum clock frequency is 400 kHz, allowing for fast serial communications.
It operates with a supply voltage range of 2.5V to 5.5V.
The dimensions are 4.9 mm in length, 6 mm in width, and 1.75 mm in height.
The typical supply current is 3 mA.
It has an operating temperature range from -40°C to 85°C, suitable for industrial and automotive applications.
It complies with the automotive standard AEC-Q100 for enhanced reliability.
It supports over one million erase/write cycles, ensuring long-term reliability.
Yes, it features hardware write-protection and ESD protection exceeding 4000V.
It uses a Serial-I2C interface, compatible with standard I2C protocols.
The maximum random access time is 1000 ns, which is suitable for efficient memory access.
It is designed for surface mounting, making it suitable for compact PCB designs.
