Microchip 256 kB Serial EEPROM 8-Pin MSOP Serial-I2C 24LC256-E/MS

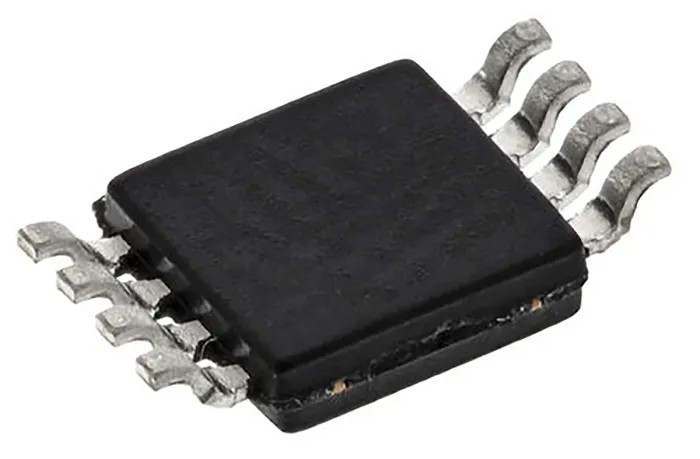

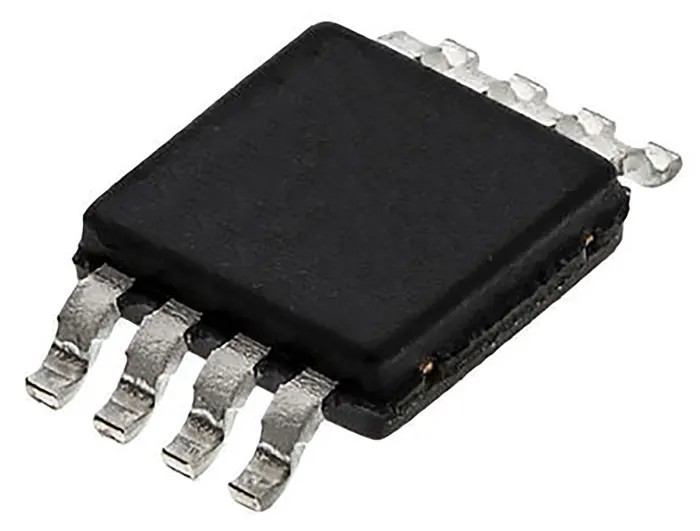

Microchip 24LC256-E/MS is a high-quality 256 kB Serial EEPROM designed for reliable memory storage and fast data access in industrial, automotive, and electronic component applications. It features an 8-pin MSOP surface mount package with compact dimensions of 3 mm width and length and a height of 850 μm, facilitating space-efficient PCB designs.

This EEPROM utilizes a Serial-I2C interface to allow seamless integration with microcontrollers and other system components. With a supply voltage range between 2.5 V and 5.5 V, it supports various power configurations, making it versatile for different applications.

The device supports a maximum clock frequency of 400 kHz, enabling efficient and brisk communication. Data retention capability extends up to 200 years, providing assured long-term data storage without degradation.

Designed to operate reliably in harsh environments, it supports a wide temperature range from -40°C to 125°C, meeting requirements for automotive and industrial use cases. The supply current is optimized at 3 mA to reduce power consumption, an important feature for battery-powered or energy-conscious systems.

With a maximum random access time of just 1000 ns, the 24LC256-E/MS ensures rapid data retrieval, increasing overall system performance. The EEPROM is tested and conforms to the Automotive Standard AEC-Q100, guaranteeing high reliability and robustness expected in stringent automotive applications.

256 kB memory size suitable for diverse electronic applications. Implements Serial-I2C interface for easy communication and control. Compact 8-pin MSOP surface mount package measuring 3mm x 3mm. Operates with supply voltage range from 2.5V to 5.5V enabling flexible power options.

Supports maximum clock frequency of 400 kHz for efficient data transfer. Data retention up to 200 years ensuring long-term reliability. Operating temperature range from -40°C to 125°C for industrial and automotive environments.

Supply current of 3 mA optimizes power consumption. Maximum random access time of 1000 ns for rapid EEPROM data access. Compliance with Automotive Standard AEC-Q100 for quality assurance.

This product is ideal for use in industrial electronics, automotive systems, embedded memory solutions, and other manufacturing environments requiring dependable EEPROM memory. Browse the Microchip range and other Semiconductor EEPROM products on EnvMart for high-quality electronic components.
